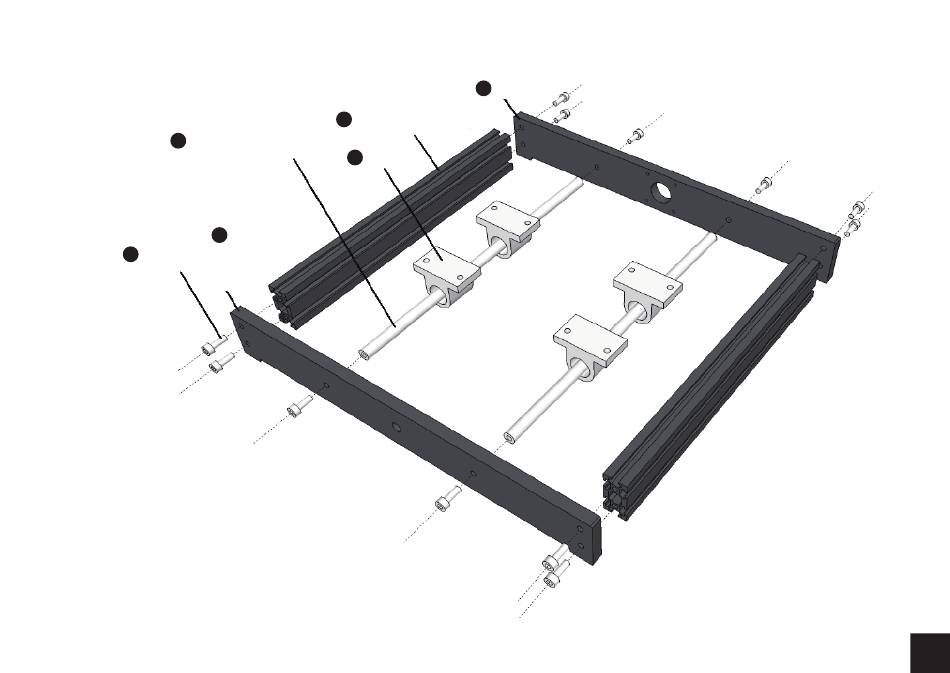

Genmitsu 3018-PRO Benutzerhandbuch Seite 13

(2) Guide Rail
5
Y Axis, Ø10 x 290mm
8
(12) Bolt
Bakelite
26
M5 x 16
Resin
Plate A
Notes: Make sure this assembly is square
and that the sliders are installed on the
guide rails with the holes to the front and
rear of the base.
Bakelite Resin Plate B
9
(2) Aluminum Profile
1
20 x 40 x 290 mm
(4) Slider
15
11
