Genmitsu 3018-PRO Benutzerhandbuch Seite 24

Step 9 X-Axis Assembly
Step 1: Install (2) Aluminum Frame pieces to Bakelite Pillar C with M5x16mm Bolts.
Step 2: Install (2) Linear Rods into the holes next to the Frame pieces using M5x16mm Bolts.
Step 3: Prepare the Stepper Motor and Install the Coupler and screw. Set the screw positioned
on the Flat side of the Stepper Motor Shaft.
Step 4: Slide the Z-Axis Assembly onto the Linear Rods. Push the Assembly to the right until the
Leadscrew is positioned inside the coupler. Secure the Leadscrew with the coupler set screw.

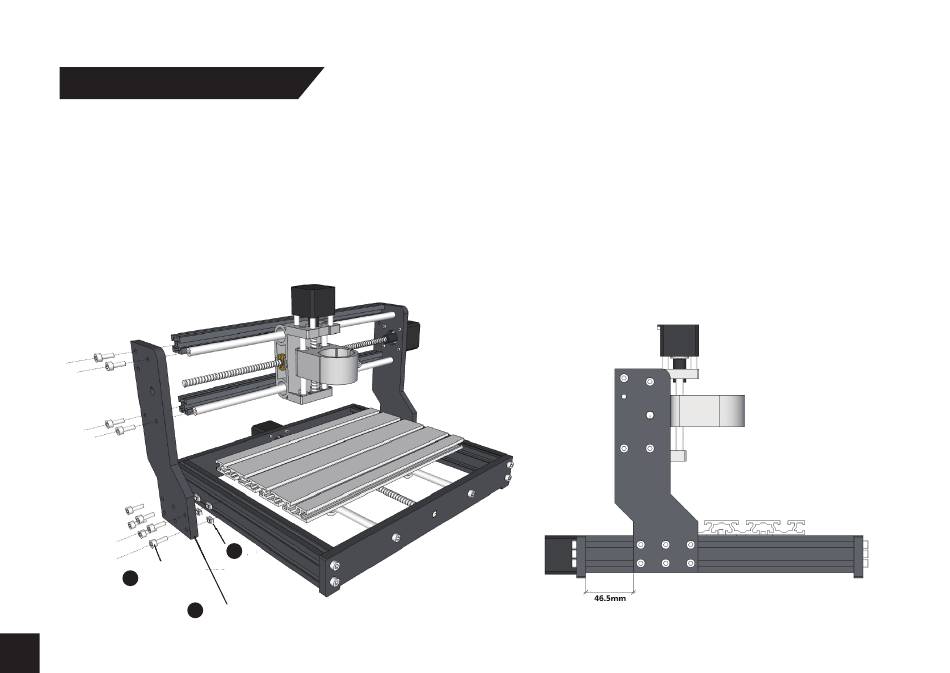

Step 5: Install Bakelite Pillar -D. Leave a 46.5mm space between the rear of the pillar and back frame piece.
(10) Bolt
26
M5 x 16
11
22
29
(6) T-Nut
20M5
Bakelite Resin Plate D
