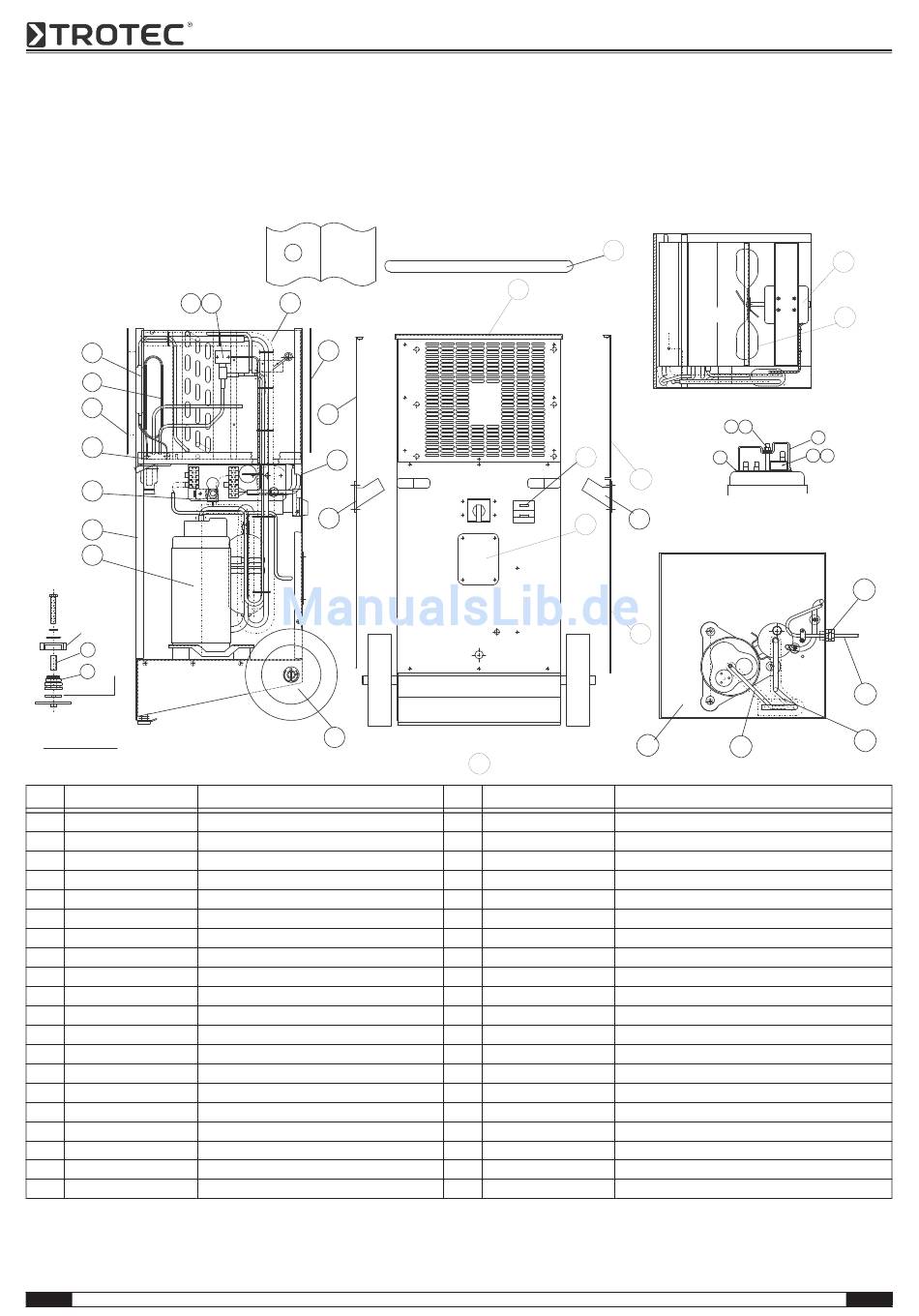

Nomenclature et liste des pièces de rechange
Composant principal
Indication !
Les numéros de repérage des pièces de rechange sont dif-
férents des numéros de repérage des composants utilisés
dans le manuel d'utilisation.
49
31
32
52
2
54
5
4
COMPRESSOR
FOOT
NYLON
17
WASHER
MUST BE
FITTED
64
BASE
COMPRESSOR FEET
FIXING DETAIL
(IN 3 POS'NS)
IMPORTANT
N° Référence
1 7242000915
2 SA521903
3 7162000193
4 7161000197
5 7242000924
6 7242000922
7 7600000081
8 SD356350
9 SD519406
10 SD519405
11 7110000919
12 7241000917
17 SD520852
21 7310000005
22 7333000378
31 7220000195
32 7220000358
35 SD364151
40 SD533251
41 7242000920
C - 15
i
40
48 3
61
42
6
47
7
Pièce de rechange
base plate C/W spindle
drip tray assembly
evaporator/condenser assembly
rotary compressor QXC-19k
side panel (air in)
side panel (air out)
wheel 200 mm diameter
cover plate
pipe run (discharge)
pipe run (suction)
fan motor 34
fan blade 10 1/2" 5 blade
spacer 37 mm LG 10 mm O/D 8.20 mm I/D
M20 plastic gland back nut
plug/lead assembly
dryer molecular sieve
capillary tubes 0.090" OD x 0.052 ID x 64"
handle
user manual
top cover
Manuel d'utilisation – Déshumidificateur de chantier TTK 400
35
41
45
00000.0 h
O
00000.0 kWh
1
8
46
REFRIGERANT
N° Référence Pièce de rechange
42 7242000925 side panel
43 7242000927 side panel (bottom)
44 7242000926 side panel (top)
45 7140000900 operating hours counter and energy meter
46 SP182554 refrigerant R407c
47 SD314650 recess handle
48 7140001337 defrost valve body
49 7420001338 solenoid coil
52 7242000923 inlet grille
54 SD476250 plug securing bracket
61 7242000921 outlet grille
64 7300001250 compressor rubber mount
65 7140001298 thermal overload
66 SD622952 compressor terminal gasket
67 SD622953 terminal cover
68 SD622954 spring (thermal overload)
69 SD622955 nut and bolt set
70 SD622956 rubber washer
PLAN VIEW TOP
70 69
66
44
PART VIEW SHOWING COMPRESSOR
THERMAL OVERLOAD/
47
TERMINAL COVER ASSY.
43
1
9
PLAN VIEW BASE
11
12
67
65 68
21
22
10
FR
