Water connection

For safety reasons the non-return/overpressure valve supplied
must be connected to the cold water inlet of the boiler.
The supplied drain plug can be connected to enable draining. This can
be done using the T-piece provided as shown in Figure 1.

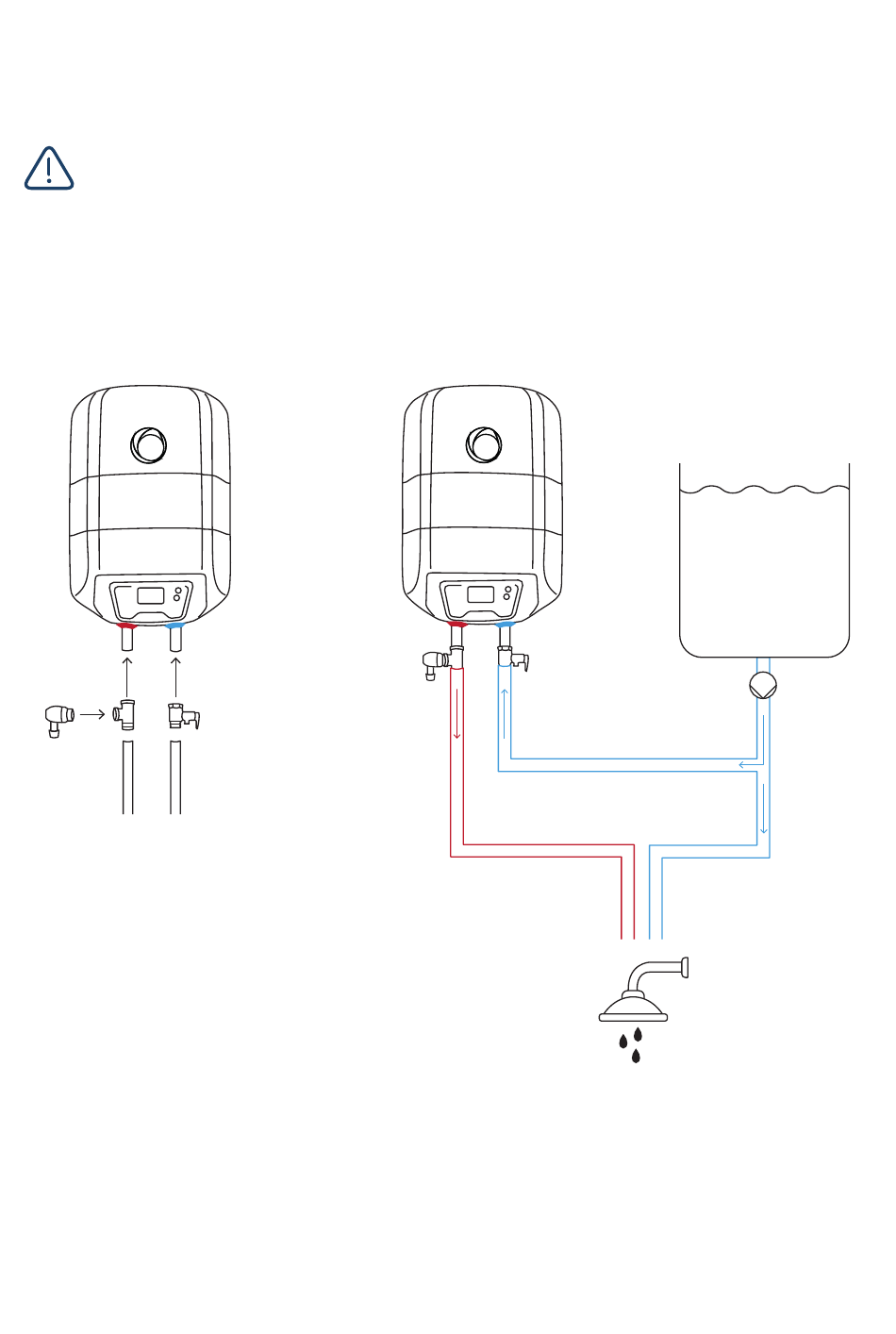

We recommend integrating the caravan boiler into a water system as
shown in figure 2.
1
Figure 1
1
Valve + T-piece to drain the boiler
2
Non-return / pressure relief valve
3
Water tank e.g. 40 litres
4
12 V pump (lying in the water if necessary).
Recommended pressure min. 0.75 bar
5
Shower / sink
2
Figure 2
1 2
07
