Water connection

For safety reasons, the non-return/overpressure valve supplied must
be connected to the cold water inlet of the boiler.
The supplied drain plug must be connected to enable draining. This
can be done using the T-piece provided, as shown in Figure 1.

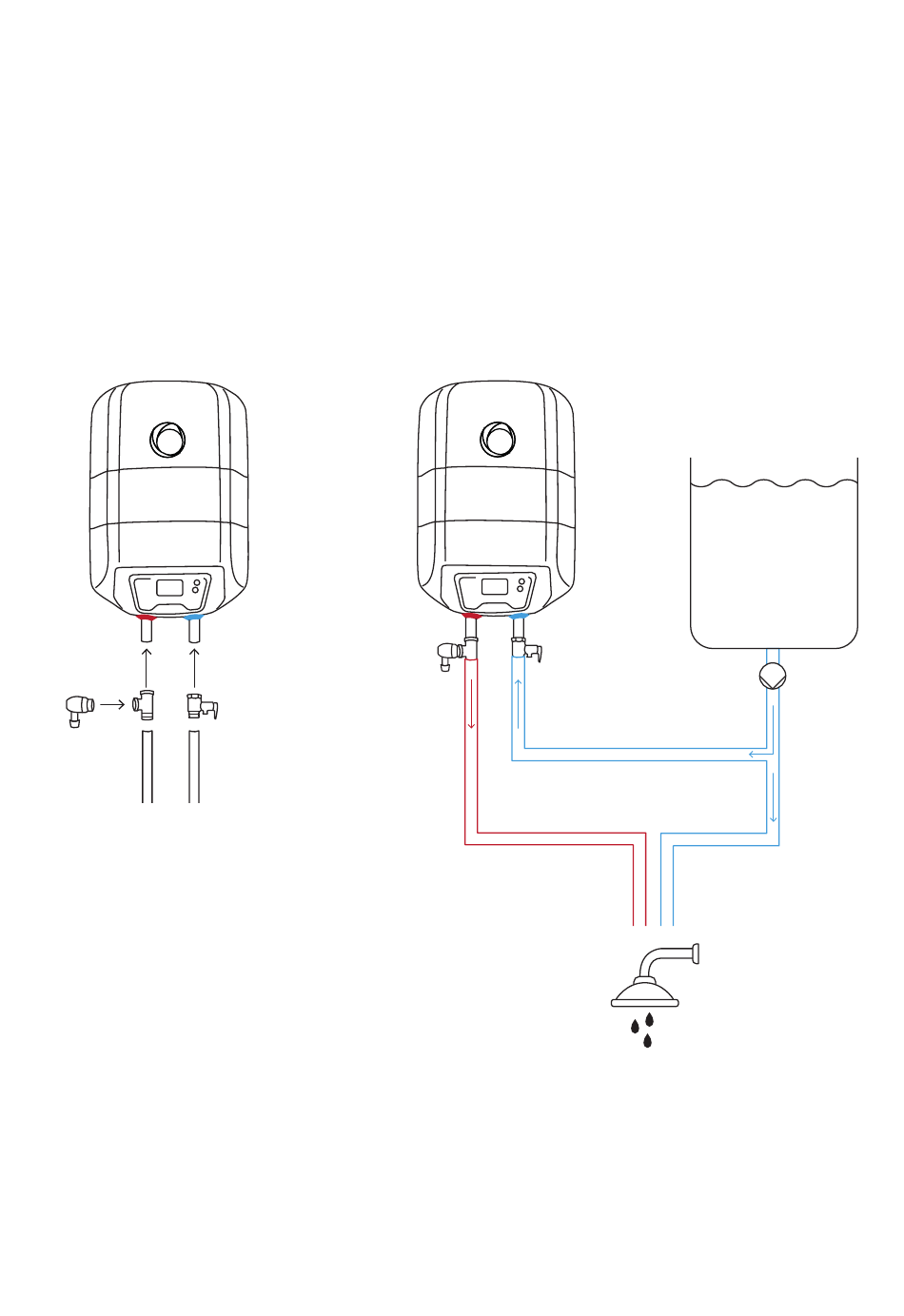

We recommend integrating the caravan boiler into a water system as
shown in figure 2.
1
Figure 1
1
Valve + T-piece to be able to drain the boiler
2
Non-return / pressure relief valve
3
Water tank e.g. 40 litres
4
12 V pump (lying in the water if necessary).
Recommended pressure min. 0,75 bar
5
Dusche / Waschbecken
2
Figure 2
1 2
5
