COUNTER-CLOCKWISE
CLOCKWISE
5

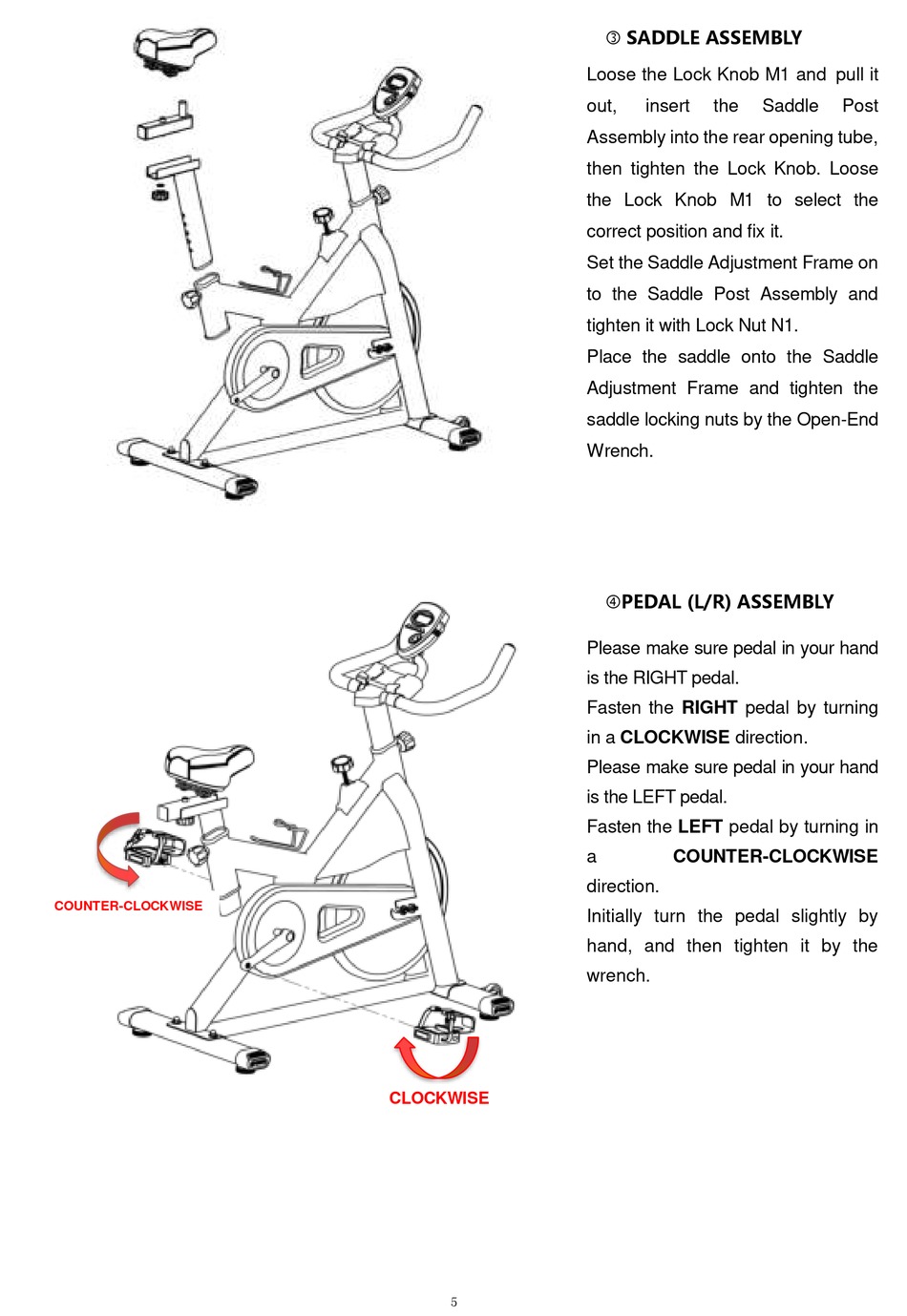

 SADDLE ASSEMBLY
Loose the Lock Knob M1 and pull it
out, insert the
Assembly into the rear opening tube,
then tighten the Lock Knob. Loose
the Lock Knob M1 to select the
correct position and fix it.
Set the Saddle Adjustment Frame on
to the Saddle Post Assembly and
tighten it with Lock Nut N1.
Place the saddle onto the Saddle
Adjustment Frame and tighten the
saddle locking nuts by the Open-End
Wrench.
PEDAL (L/R) ASSEMBLY
Please make sure pedal in your hand
is the RIGHT pedal.
Fasten the RIGHT pedal by turning
in a CLOCKWISE direction.
Please make sure pedal in your hand
is the LEFT pedal.
Fasten the LEFT pedal by turning in
a
COUNTER-CLOCKWISE
direction.
Initially turn the pedal slightly by
hand, and then tighten it by the
wrench.
Saddle Post
