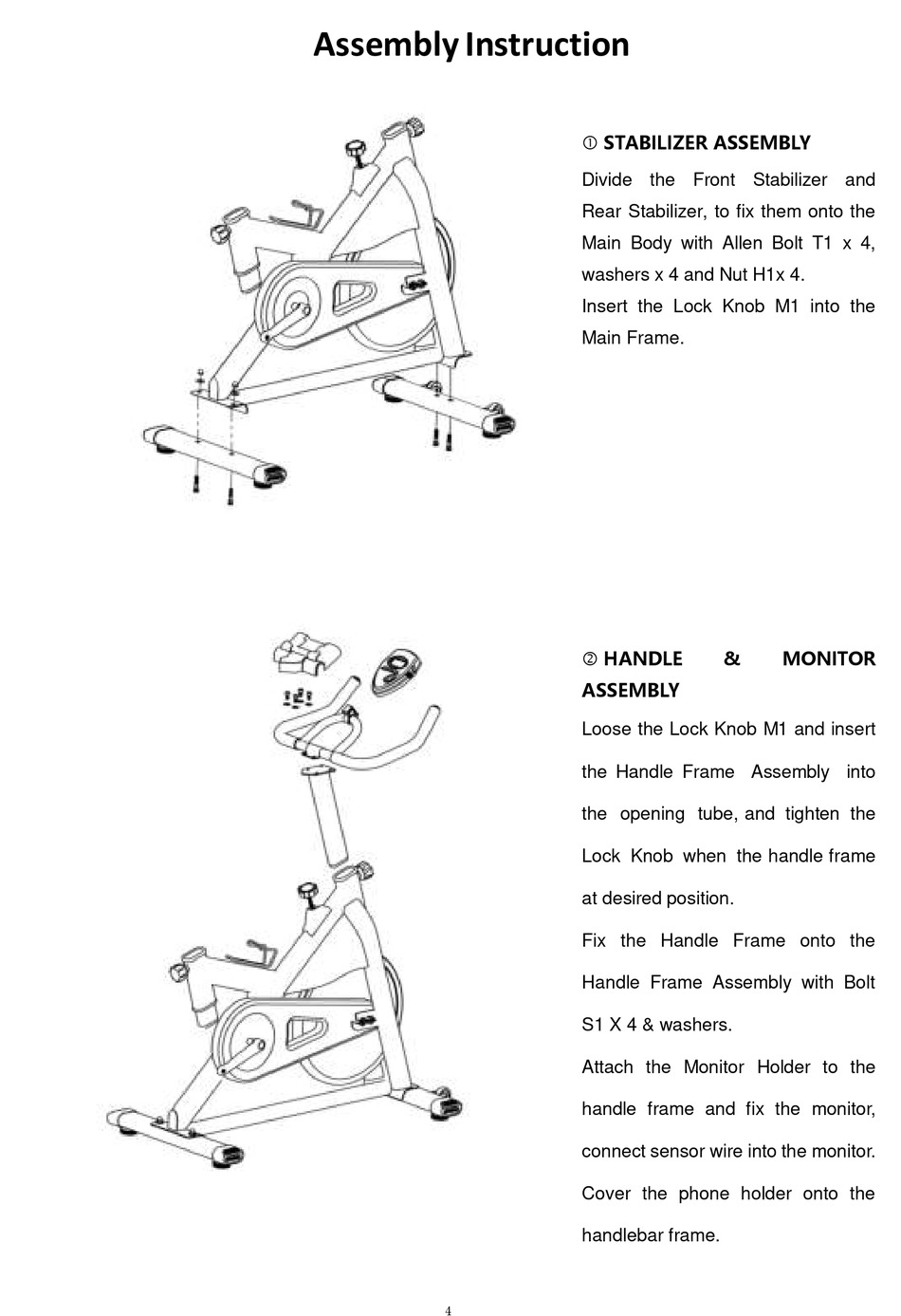

Assembly Instruction


 STABILIZER ASSEMBLY
Divide the Front Stabilizer and
Rear Stabilizer, to fix them onto the
Main Body with Allen Bolt T1 x 4,
washers x 4 and Nut H1x 4.
Insert the Lock Knob M1 into the
Main Frame.
 HANDLE
& MONITOR
ASSEMBLY
Loose the Lock Knob M1 and insert
the Handle Frame Assembly into
the opening tube, and tighten the
Lock Knob when the handle frame
at desired position.
Fix the Handle Frame onto the
Handle Frame Assembly with Bolt
S1 X 4 & washers.
Attach the Monitor Holder to the
handle frame and fix the monitor,
connect sensor wire into the monitor.
Cover the phone holder onto the
handlebar frame.
4
