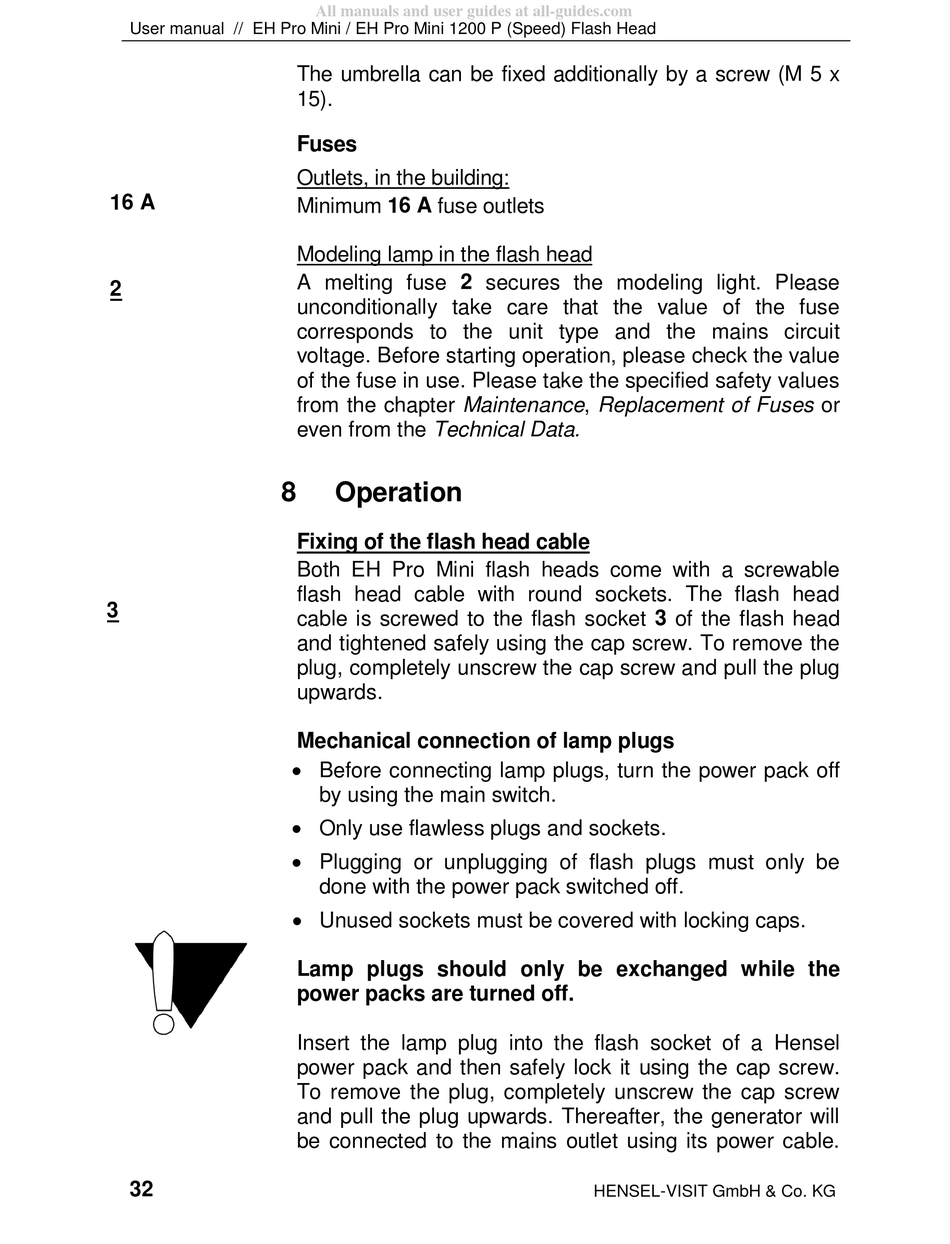

The umbrella can be fixed additionally by a screw (M 5 x
15).

Fuses

Outlets, in the building:
Minimum 16 A fuse outlets
Modeling lamp in the flash head
A melting fuse 2 secures the modeling light. Please
unconditionally take care that the value of the fuse
corresponds to the unit type and the mains circuit
voltage. Before starting operation, please check the value
of the fuse in use. Please take the specified safety values
from the chapter Maintenance, Replacement of Fuses or
even from the Technical Data.

Operation

Fixing of the flash head cable

Both EH Pro Mini flash heads come with a screwable
flash head cable with round sockets. The flash head
cable is screwed to the flash socket 3 of the flash head
and tightened safely using the cap screw. To remove the
plug, completely unscrew the cap screw and pull the plug
upwards.
Mechanical connection of lamp plugs
 Before connecting lamp plugs, turn the power pack off
by using the main switch.
 Only use flawless plugs and sockets.
 Plugging or unplugging of flash plugs must only be
done with the power pack switched off.
 Unused sockets must be covered with locking caps.
Lamp plugs should only be exchanged while the
power packs are turned off.
Insert the lamp plug into the flash socket of a Hensel
power pack and then safely lock it using the cap screw.
To remove the plug, completely unscrew the cap screw
and pull the plug upwards. Thereafter, the generator will
be connected to the mains outlet using its power cable.
