Overview Of Controls; Standard Delivery - Hensel Eh Pro Mini Bedienungsanleitung

4
1
2
3
4
5
5a
5b
5c
5d
5e
5
All EH Pro Mini Heads are provided with:
 Flash tube
 Protection glass dome
 Modeling lamp
 Tilting head,
 Protection cap
HENSEL-VISIT GmbH & Co. KG
All manuals and user guides at all-guides.com

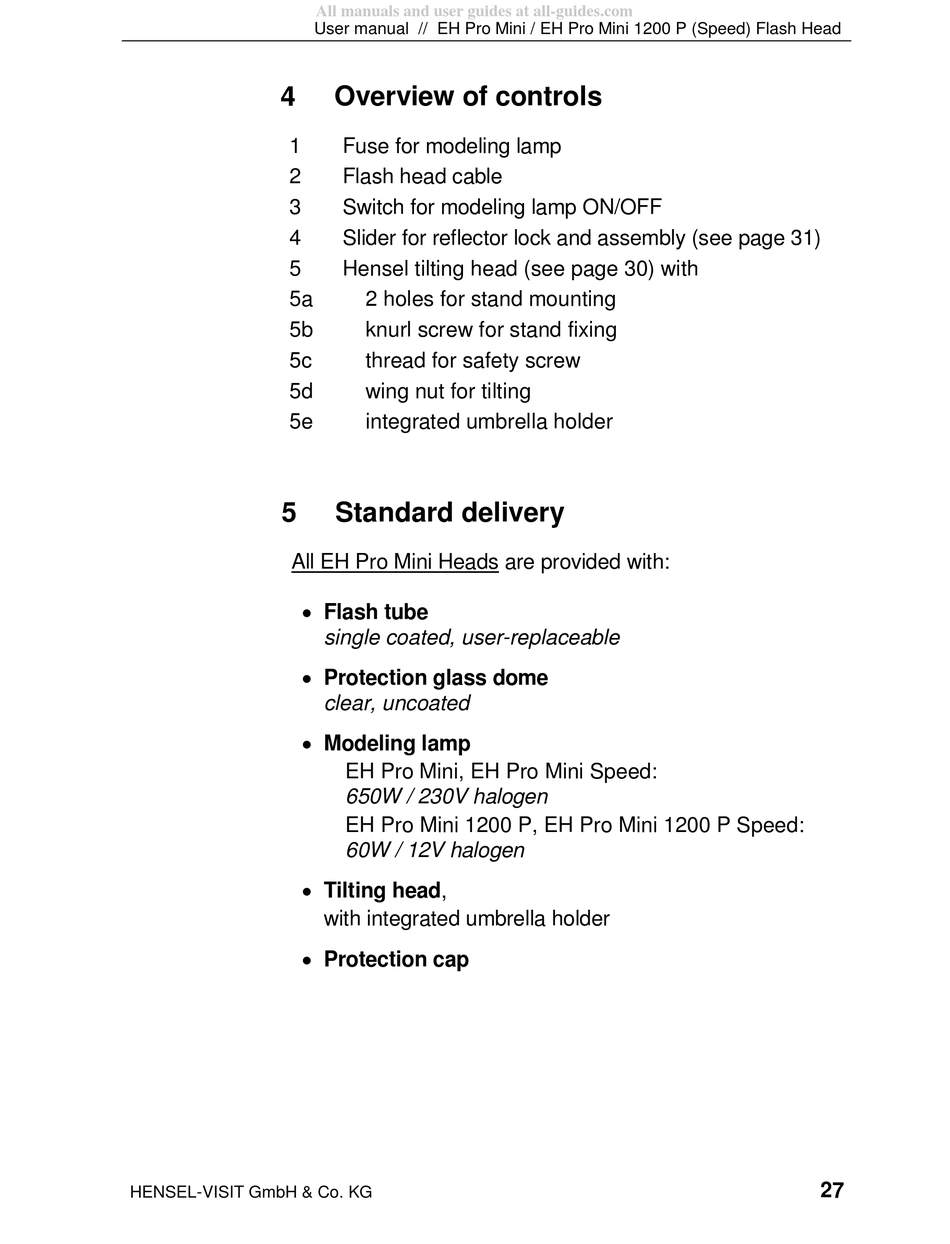

User manual // EH Pro Mini / EH Pro Mini 1200 P (Speed) Flash Head

Overview of controls

Fuse for modeling lamp
Flash head cable
Switch for modeling lamp ON/OFF
Slider for reflector lock and assembly (see page 31)
Hensel tilting head (see page 30) with
2 holes for stand mounting
knurl screw for stand fixing
thread for safety screw
wing nut for tilting
integrated umbrella holder

Standard delivery

single coated, user-replaceable
clear, uncoated
EH Pro Mini, EH Pro Mini Speed:
650W / 230V halogen
EH Pro Mini 1200 P, EH Pro Mini 1200 P Speed:
60W / 12V halogen
with integrated umbrella holder
27
