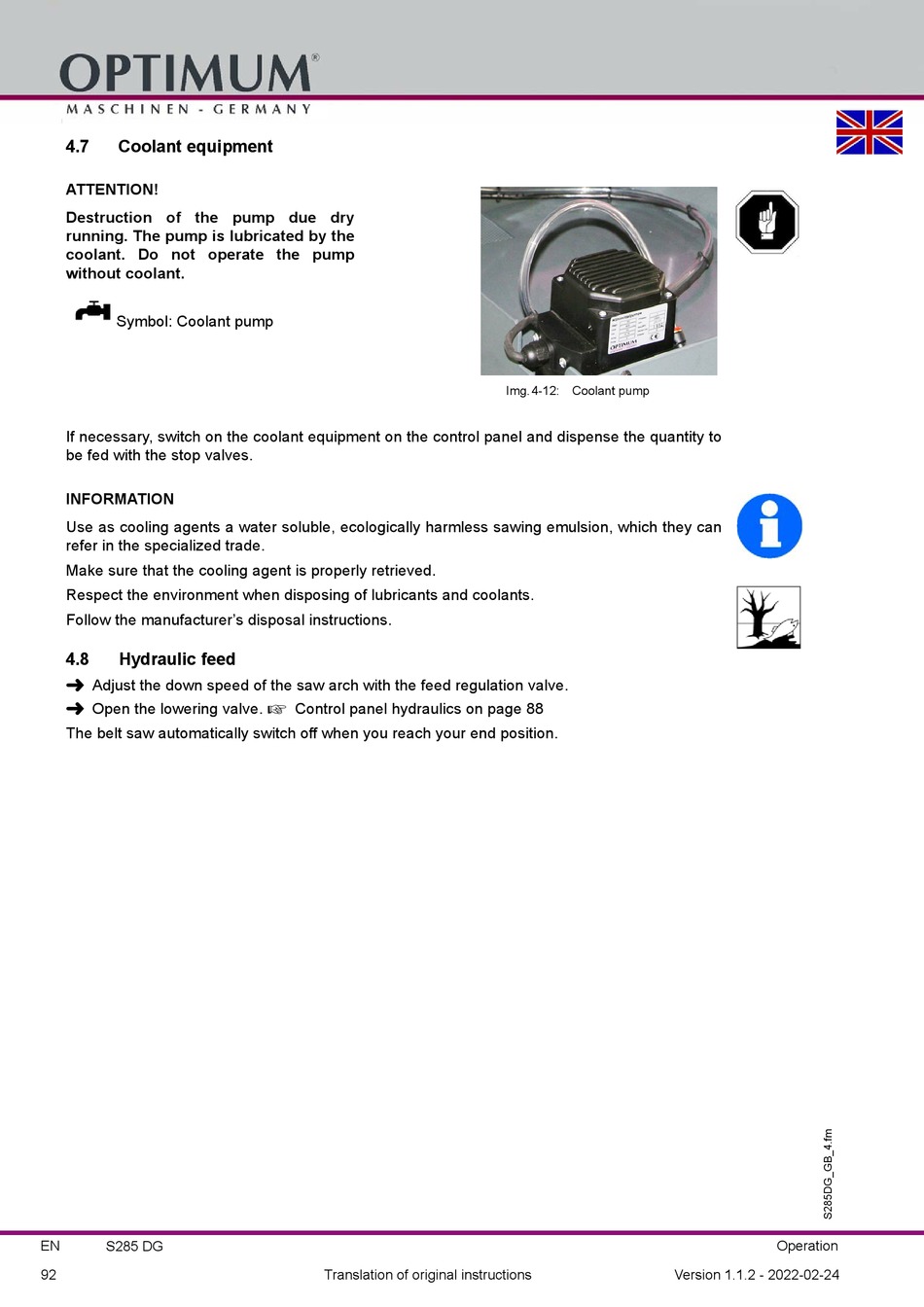

Coolant Equipment; Hydraulic Feed - Optimum OPTisaw S285DG Betriebsanleitung

4.7

Coolant equipment

ATTENTION!
Destruction of the pump due dry
running. The pump is lubricated by the
coolant. Do not operate the pump
without coolant.
Symbol: Coolant pump
If necessary, switch on the coolant equipment on the control panel and dispense the quantity to
be fed with the stop valves.
INFORMATION
Use as cooling agents a water soluble, ecologically harmless sawing emulsion, which they can
refer in the specialized trade.
Make sure that the cooling agent is properly retrieved.
Respect the environment when disposing of lubricants and coolants.
Follow the manufacturer's disposal instructions.
4.8

Hydraulic feed


Adjust the down speed of the saw arch with the feed regulation valve.

Open the lowering valve.
The belt saw automatically switch off when you reach your end position.
EN
S285 DG
92

Control panel hydraulics on page 88
Translation of original instructions
Img.4-12: Coolant pump
Version 1.1.2 - 2022-02-24
Operation
