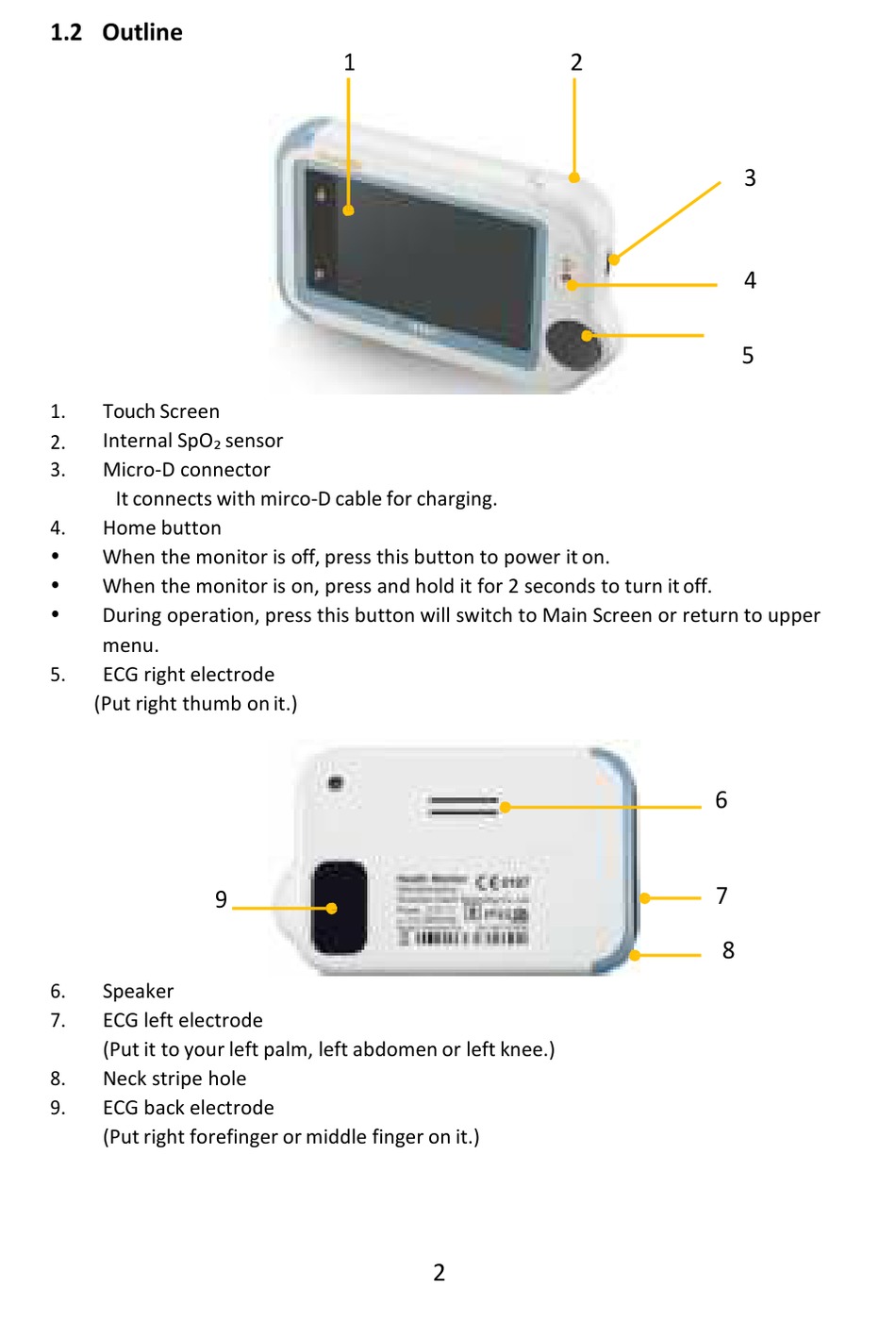

1.2 Outline
1. Touch Screen
Internal SpO
2.
3. Micro-D connector
It connects with mirco-D cable for charging.
4. Home button
When the monitor is off, press this button to power it on.

When the monitor is on, press and hold it for 2 seconds to turn it off.

During operation, press this button will switch to Main Screen or return to upper

menu.
5. ECG right electrode
(Put right thumb on it.)
6. Speaker
7. ECG left electrode
(Put it to your left palm, left abdomen or left knee.)
8. Neck stripe hole
9. ECG back electrode
(Put right forefinger or middle finger on it.)
1
sensor
2
9
2
2
3
4
5
6
7
8
