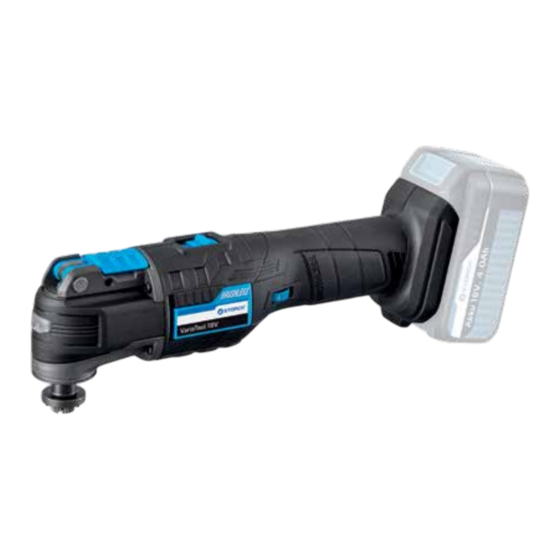

Vario Tool 18 V DE Akku-VarioTool 18 V Original Betriebsanleitung NL Accu-VarioTool 18 V Vertaling van de originele handleiding FR Variotool à accus 18 V Traduction des instructions d‘origine VarioTool a batteria 18 V Traduzione delle istruzioni originali GB Cordless VarioTool 18 V...
1. Allgemeine Informationen 1.1 Identifikation Bei diesem Dokument handelt es sich um die Betriebsanleitung zum Akku-VarioTool 18 V der Firma STORCH. In der Anleitung wird das Produkt in seiner Funktion beschrieben und vermittelt die wichtigsten Informationen zum sicheren Umgang und Gebrauch. Alle Anga- ben beziehen sich auf den aktuellen technischen Entwicklungsstand des Gerätes und...
3. Sicherheit 3.1 Darstellung der Sicherheitshinweise In der Betriebsanleitung können folgende Sicherheitshinweise in unterschiedlich hohen Gefahrenstufen abgebildet sein, die unbedingt beachtet werden müssen: GEFAHR weist auf unmittelbar drohende Gefahren hin, die ohne entsprechende Sicherheitsvorkehrungen zum Tod oder schwers- GEFAHR ten Verletzungen führen können. WARNUNG weist auf Gefahren hin, die durch falsche Verhal- tensweisen entstehen und zum Tod oder zu schwersten WARNUNG...
Personen unter Leitung und Aufsicht einer Elektrofachkraft gemäß den elektrotechnischen Regeln vorgenommen werden. • Das Gerät nur mit kompatiblen 18 V Akkus von STORCH verwenden. Es besteht Brandgefahr. • Decken Sie nicht die Lüftungsschlitze des Gerätes ab. Das Gerät kann überhitzen.
• Halten Sie Kinder und andere Personen während der Benutzung des Gerätes fern. Bei Ablenkung können Sie die Kontrolle über das Elektro- werkzeug verlieren. • Von Kindern und unbefugten Benutzern fernhalten. • Bei der Bedienung des Gerätes keine rohe Gewalt anwenden. •...
4. Geräteübersicht und Funktion Spannhebel für Werkzeugwechsel Staubabsaugung Ein-/ Ausschalter Akku Spannmutter Einstellung Aufnahme Geschwindigkeitssteuerung für Einsatzwerkzeug Verbindungsring LED-Arbeitsleuchte Verriegelungskappe 5. Inbetriebnahme Klappen Sie den Spannhebel für die Werk- zeugaufnahme (1) ganz auf. Hierbei wir die Spannmutter (9) angehoben und gibt die Aufnahme für das Einsatzwerkzeug (10) frei.
Klappen Sie den Spannhebel für die Werk- zeugaufnahme (1) wieder ganz zurück bis es einrastet. Setzen Sie einen kompatiblen Akku der Firma STORCH in die Akku-Aufnahme des Gerätes. Wenn der Akku sich nicht ein- fach einschieben lässt, wenden Sie keine Gewalt an.
Rechnung frei an unser Logistik Center in Berka oder an eine von uns auto- risierte Service-Station eingeschickt wird. Zuvor bitten wir Sie, uns unter unserer kosten- losen STORCH Service-Hotline 08 00. 7 86 72 47 zu kontaktieren. Gewährleistungsanspruch Ansprüche bestehen ausschließlich an Werkstoff- oder Fertigungsfehler sowie ausschließ-...
Seite 10
tronikgeräte anbieten und auf dem Markt bereitstellen. Dies gilt auch bei Vertrieb unter Verwendung von Fernkommunikationsmitteln, wenn die Lager- und Versandflächen für Elektro- und Elektronikgeräte mindestens 400 m² betragen oder die gesamten Lager- und Versandflächen mindestens 800 m² betragen. Vertreiber haben die Rücknahme grund- sätzlich durch geeignete Rückgabemöglichkeiten in zumutbarer Entfernung zum jewei- ligen Endnutzer zu gewährleisten.
- Sicherheit - Teil 2-4: Besondere Anforderungen für EN 62841-2-4:2014 handgeführte Schleifer und Polierer außer Tellerschlei- fern Bevollmächtigter für die Zusammenstellung der technischen Unterlagen: STORCH Malerwerkzeuge & Profigeräte GmbH . Platz der Republik 6 . 42107 Wuppertal Jörg Heinemann - Geschäftsführer - Wuppertal, 03.2022...
Seite 12
STORCH serviceafdeling Telefon: +49 202 49 20 112 Fax: +49 202 49 20 111 www.storch.de Inhoudsopgave Pagina 1 Algemene informatie 2 Productbeschrijving 3 Veiligheid 4 Apparaatoverzicht en werking 5 Inbedrijfstelling en gebruik 6 Onderhoud 7 Troubleshooting 8 Garantie 9 Afvoer...
1. Algemene informatie 1.1 Identificatie Dit document is de gebruiksaanwijzing voor de accu-VarioTool 18 V van STORCH. In de gebruiksaanwijzing wordt beschreven hoe het product werkt en wordt de belangrijkste informatie voor een veilige omgang en gebruik vermeld. Alle specificaties hebben betrek- king op de huidige technische stand van het apparaat en blijven alleen geldig als er geen wijzigingen aan het apparaat worden uitgevoerd.
3. Veiligheid 3.1 Weergave van de veiligheidsinstructies De volgende veiligheidsinstructies kunnen in de gebruiksaanwijzing een bepaald risico aanduiden en moeten absoluut in acht worden genomen: GEVAAR wijst op direct dreigende gevaren die zonder gepaste veiligheidsmaatregelen kunnen leiden tot de dood of zeer ern- GEVAAR stige verwondingen.
• Gebruik het apparaat alleen met compatibele STORCH 18 V-accu's. Er is brandgevaar. • Dek de ventilatiesleuven van het apparaat niet af. Het apparaat kan oververhit raken.
• Houd kinderen en andere personen uit de buurt tijdens het gebruik van het apparaat. U kunt de controle over het elektrische gereedschap verlie- zen als u wordt afgeleid. • Uit de buurt houden van kinderen en onbevoegde gebruikers. • Gebruik geen geweld bij gebruik van het apparaat. •...
4. Apparaatoverzicht en werking Klemhendel voor Stofafzuiging gereedschapswissel Aan/Uit-schakelaar Moer Accu Spanmoer Instelling Opname Snelheidsinstelling voor inzetgereedschap Verbindingsring LED-werklamp Vergrendelingskap 5. Ingebruikname Open de klemhendel voor de gereedschap- opname (1) helemaal. Hier wordt de span- moer (9) omhoog gebracht en komt de opname voor het inzetgereedschap (10) vrij.
(10). Klap de klemhendel voor de gereedschap- opname (1) helemaal naar achteren tot hij vastklikt. Plaats een compatibele accu van STORCH in de accuhouder van het apparaat. Gebru- ik geen kracht als de accu er niet gemak- kelijk in schuift.
8. Garantie Voor onze apparaten gelden de wettelijke garantieperioden van 12 maanden vanaf aan- koopdatum/factuurdatum van de eindklant. Indien wij langere perioden in een garantie- verklaring hebben toegezegd, dan worden deze speciaal in de gebruiksaanwijzingen van de desbetreffende apparaten toegelicht. Indienen van garantieclaims Bij een garantieclaim vragen wij u het gehele apparaat samen met de rekening franco aan ons logistiekcentrum in Berka te verzenden.
EN 62841-2-4:2014 2.4: Bijzondere eisen voor handbediende slijpmachines en polijstmachines m.u.v. schijfslijpmachines Verantwoordelijke voor samenstelling van de technische documentatie: STORCH Malerwerkzeuge & Profigeräte GmbH . Platz der Republik 6 . D-42107 Wuppertal Jörg Heinemann - Directeur - Wuppertal, 03-2022 Vertaling van de originele handleiding...
Seite 22
Service après-vente Telefon: +49 202 49 20 112 Fax: +49 202 49 20 111 www.storch.de Sommaire Page 1 Informations générales 2 Description du produit 3 Sécurité 4 Vue d'ensemble et fonctions de l'appareil 5 Mise en service et utilisation 6 Maintenance 7 Élimination des défaillances...
1. Informations générales 1.1 Identification Ce document est le mode d'emploi du VarioTool avec accu 18 V de la société STORCH. Le mode d'emploi décrit le fonctionnement du projecteur et présente les informations essentielles pour son utilisation sûre et fiable. Toutes les indications se réfèrent à l'état de développement technique actuel de l'appareil et ne s'y appliquent qu'en absence de...
3. Sécurité 3.1 Représentation des consignes de sécurité Le mode d'emploi comprend les consignes de sécurité suivantes représentées avec des niveaux de risques différents, qui doivent être respectées impérativement : DANGER signale un danger imminent pouvant entraîner la mort ou des blessures très graves en absence de précautions appropriées.
équipements électriques dans le respect des règles électrotech- niques. • Utiliser l'appareil uniquement avec les accus 18 V compatibles de STORCH. Il existe un risque d'incendie. • Ne couvrez pas les fentes de ventilation de l'appareil. L'appareil peut surchauffer. Il existe un risque d'incendie.
• Pendant l'utilisation de l'appareil, tenez à l'écart les enfants et les perso- nnes non impliquées. Lorsque vous êtes distrait, vous pouvez perdre le contrôle de l'outil électrique. • Tenir éloigné des nourrissons et des personnes non autorisées. • Ne pas exercer de force pour faire fonctionner l'appareil. •...
4. Vue d'ensemble et fonctions de l'appareil Levier de serrage pour le Aspiration de poussière changement d'outil Interrupteur Marche/ Arrêt Rainure Accu Écrou de serrage Réglage Logement Commande de vitesse pour embout Anneau de liaison Projecteur de travail à LED Capuchon de verrouillage 5.
Repliez entièrement le levier de serrage du logement d'outil (1) jusqu'à ce qu'il s'enclenche. Insérrez un accu compatible de la mar- que STORCH dans le logement d'accu de l'appareil. Si l'accumulateur ne s'insère pas facilement, ne forcez pas. Réglez le taux de vibrations souhaité au niveau de la régulation de vitesse (4).
8. Garantie Les délais légaux de garantie de 12 mois s'appliquent à nos appareils à compter de la date d'achat / la date de la facture du client professionnel final. Si des délais plus longs sont accordés par nos soins dans le cadre d'une déclaration de garantie, ceux-ci sont indi- qués dans les instructions de service des appareils concernés.
électroportatives, à l'exception des ponceuses à disques Fondé de pouvoir pour la compilation des documents techniques : STORCH Malerwerkzeuge & Profigeräte GmbH . Platz der Republik 6 . D-42107 Wuppertal Jörg Heinemann - Gérant - Wuppertal, mars 2022 Traduction des instructions d‘origine...
Seite 32
Reparto Assistenza STORCH Telefon: +49 202 49 20 112 Fax: +49 202 49 20 111 www.storch.de Indice Pagina 1 Informazioni generali 2 Descrizione del prodotto 3 Sicurezza 4 Panoramica dell'apparecchio e funzionamento 5 Messa in funzione e uso 6 Manutenzione...
1.1 Identificazione Il presente documento contiene le istruzioni per l'uso dell'utensile multiuso a batteria Vari- oTool da 18 V della società STORCH. Le istruzioni intendono descrivere il funzionamento del prodotto e trasmettere le informazioni più importanti per l'impiego e l'utilizzo sicuri.
3. Sicurezza 3.1 Illustrazione delle avvertenze di sicurezza Le istruzioni per l'uso possono contenere le seguenti avvertenze di sicurezza con diversi livelli di pericolo, le quali devono essere assolutamente rispettate: PERICOLO indica un pericolo imminente che può provocare la morte o lesioni gravissime se non si adottano opportune misure di PERICOLO sicurezza.
• Utilizzare l'apparecchio solo con le batterie compatibili da 18 V di STORCH. Sussiste pericolo d'incendio. • Non coprire le fessure di ventilazione dell'apparecchio. L'apparecchio può surriscaldarsi. Sussiste pericolo d'incendio.
• Mentre si utilizza l'apparecchio, tenere lontani bambini e altre persone. In caso di distrazione, si può perdere il controllo dell'utensile elettrico. • Tenere lontano dalla portata dei bambini e da utenti non autorizzati. • Quando si utilizza l'apparecchio, non applicare della forza bruta. •...
4. Panoramica dell'apparecchio e funzionamento Leva di bloccaggio per il cambio di Aspirazione della polvere utensili Interruttore ON/OFF Scanalatura Batteria Dado di fissaggio Impostazione Alloggiamento Controllo della velocità per attrezzo a innesto Anello di congiunzione Lampada da lavoro LED Tappo di bloccaggio 5.
Ribaltare completamente all'indietro la leva di bloccaggio per il portautensile (1) finché non scatta in posizione. Inserire una batteria compatibile della ditta STORCH nel relativo alloggiamento dell'apparecchio. Non esercitare forza se non si riesce a inserire facilmente la bat- teria.
8. Garanzia Per i nostri apparecchi sono applicabili termini di garanzia di 12 mesi a partire dalla data di acquisto / data della fattura del cliente finale commerciale. Se da parte nostra vengono accordati dei periodi di garanzia più estesi, ciò sarà riportato separatamente nelle istruzi- oni per l'uso inerenti ai rispettivi dispositivi.
EN62841-2-4: 2014 Prescrizioni particolari per levigatrici e lucidatrici diverse dal tipo a disco Persona autorizzata alla compilazione della documentazione tecnica: STORCH Malerwerkzeuge & Profigeräte GmbH . Platz der Republik 6 . 42107 Wuppertal Jörg Heinemann - Amministratore - Wuppertal, marzo 2022...
Seite 42
STORCH service department Telefon: +49 202 49 20 112 Fax: +49 202 49 20 111 www.storch.de Table of contents Page 1 General information 2 Product description 3 Safety 4 Device overview and function 5 Start-up and use 6 Maintenance 7 Troubleshooting...
1. General information 1.1 Identification This document is the operating manual for the cordless VarioTool 18 V by STORCH. The manual describes the function of the product and provides the most important informa- tion for safe handling and use. All specifications refer to the current state of technical development of the device and only retain their validity if no changes have been made to the device.
3. Safety 3.1 Layout of the safety instructions The following safety instructions may be shown in the operating manual with varying hazard levels that must be observed: DANGER indicates imminently hazardous dangers, which can result in death or serious injury if no safety measures are taken. DANGER WARNING indicates hazards that can result from incorrect behaviour and cause death or serious injury (e.g.
• Only use the device with compatible 18 V batteries by STORCH. There is a fire hazard. • Do not cover the ventilation slots of the device. The device may overhe- at.
Seite 46
• Keep children and other persons away from the device when using it. If you are distracted, you can lose control over the power tool. • Keep this appliance out of the hands of children and unauthorised users. • Never use brute force when operating the appliance. •...
4. Device overview and function Clamping lever for tool change Dust extraction On/Off switch Groove Power pack Clamping nut Settings Shank Speed control for insertable tool Connecting ring LED work light Locking cap 5. Commissioning Fully open the clamping lever for the tool holder (1).
Fully close the clamping lever for the tool holder (1) making sure it engages. Insert a compatible rechargeable battery by STORCH into the device's battery com- partment. If the rechargeable battery does not slide in easily, do not use force.
8. Warranty A legal warranty period of twelve months from the date of purchase/date of invoice applies to our tools for commercial customers. If we have granted an extended warranty period, this period will be noted separately in the operating manual for the equipment in question.
EN 62841-2-4:2014 2-4: Particular requirements for hand-held grinders and polishers except disc-type polishers Representative authorised to compile the technical documentation: STORCH Malerwerkzeuge & Profigeräte GmbH Platz der Republik 6 D-42107 Wuppertal Jörg Heinemann - Managing Director - Wuppertal, March 2022...
Seite 52
Servisní oddělení STORCH Telefon: +49 202 49 20 112 Fax: +49 202 49 20 111 www.storch.de Obsah Strana 1 Všeobecné informace 2 Popis produktu 3 Bezpečnost 4 Přehled přístroje a funkce 5 Uvedení do provozu a použití 6 Údržba 7 Odstraňování problémů...
1. Všeobecné informace 1.1 Identifikace U tohoto dokumentu se jedná o provozní návod k Aku VarioTool 18 V firmy STORCH. V návodu je popsána funkce produktu a jsou v něm uvedeny informace k bezpečnému zacházení s ním a k jeho používání. Všechny údaje se vztahují na aktuální technickou úroveň...
3. Bezpečnost 3.1 Zobrazení bezpečnostních pokynů V provozním návodu mohou být uvedeny následující bezpečnostní pokyny v rozdílně vyso- kých stupních nebezpečí, které je bezpodmínečně nutné dodržovat: NEBEZPEČÍ poukazuje na bezprostředně hrozící nebezpečí, které bez příslušných bezpečnostních opatření může způsobit smrt NEBEZPEČÍ...
• Přístroj používejte pouze s kompatibilními 18 V akumulátory od STORCH. Existuje nebezpečí požáru. • Nezakrývejte větrací drážky přístroje. Přístroj se může přehřát. Existuje nebezpečí požáru.
Seite 56
• Během používání přístroje udržujte děti a ostatní osoby v dostatečné vzdálenosti. Při vychýlení můžete ztratit kontrolu nad elektrickým nářadím. • Uchovávejte mimo dosah dětí a neoprávněných uživatelů. • Při obsluze přístroje nepoužívejte žádné surové násilí. • Přístroj používejte jen k určenému účelu použití. Při nepřípustném použití...
4. Přehled přístroje a funkce Upínací páka pro výměnu nástroje Odsávání prachu Spínač Zapnout/Vypnout Drážka Akumulátor Upínací matice Nastavení Uchycení Nastavení rychlosti pro nasazovací nástroj Spojovací kroužek LED pracovní světlo Blokovací krytka 5. Uvedení do provozu Upínací páku pro uchycení nástroje (1) zcela odklopte.
(10). Upínací páku pro uchycení nástroje (1) opět zcela zaklopte zpět až zapadne. Vložte kompatibilní akumulátor firmy STORCH do uchycení akumulátoru v přístroji. Když nelze akumulátor jednoduše vsunout, nepoužívejte žádné násilí. Nastavte požadovaný počet kmitání u regu- lace rychlosti (4).
8. Záruka U našich přístrojů platí zákonné záruční lhůty 12 měsíců od data zakoupení/data fak- tury obchodního konečného zákazníka. Pokud jsou delší lhůty v cestě námi vypsanému prohlášení o záruce, jsou zvláště vyznačeny v návodu k obsluze příslušných přístrojů. Uplatňování V případě...
- bezpečnost - díl 2-4: Speciální požadavky EN 62841-2-4:2014 pro ručně vedené brusky a leštičky kromě talířových brusek Zplnomocněnec k sestavení technických podkladů: STORCH Malerwerkzeuge & Profigeräte GmbH . Platz der Republik 6 . 42107 Wuppertal Jörg Heinemann - Jednatel - Wuppertal, 03.2022 Překlad originálu návodu...
Seite 64
Bezeichnung N. art. Denominazione 60 20 20 Akku-VarioTool 18 V 60 20 20 VarioTool a batteria 18 V 60 20 05 Ladegerät für Akku 18 V 60 20 05 Caricabatterie 18 V 60 20 01 Akku 2 Ah, 18 V...
