Overview of infrared remote
General description
The infrared remote control (WTC-IR) is
compatible only with the infrared receiver
(WTC-IS) and fan coil units fitted with the
Water Terminal Controller.
The remote control must be directed
■
towards the unit receiver when sending
the command.
The maximum operating range for the
■
remote control is approx. 5 m.
No obstructions such as curtains or plants
■
should be between the control and the
unit. Direct sun on the receiver may
interfere with good signal reception.
The arrow icon on the left side of the
■
display indicates that the message has
been sent. If the beep function is enabled,
the infrared receiver will emit a beep to
indicate that the signal has been received.

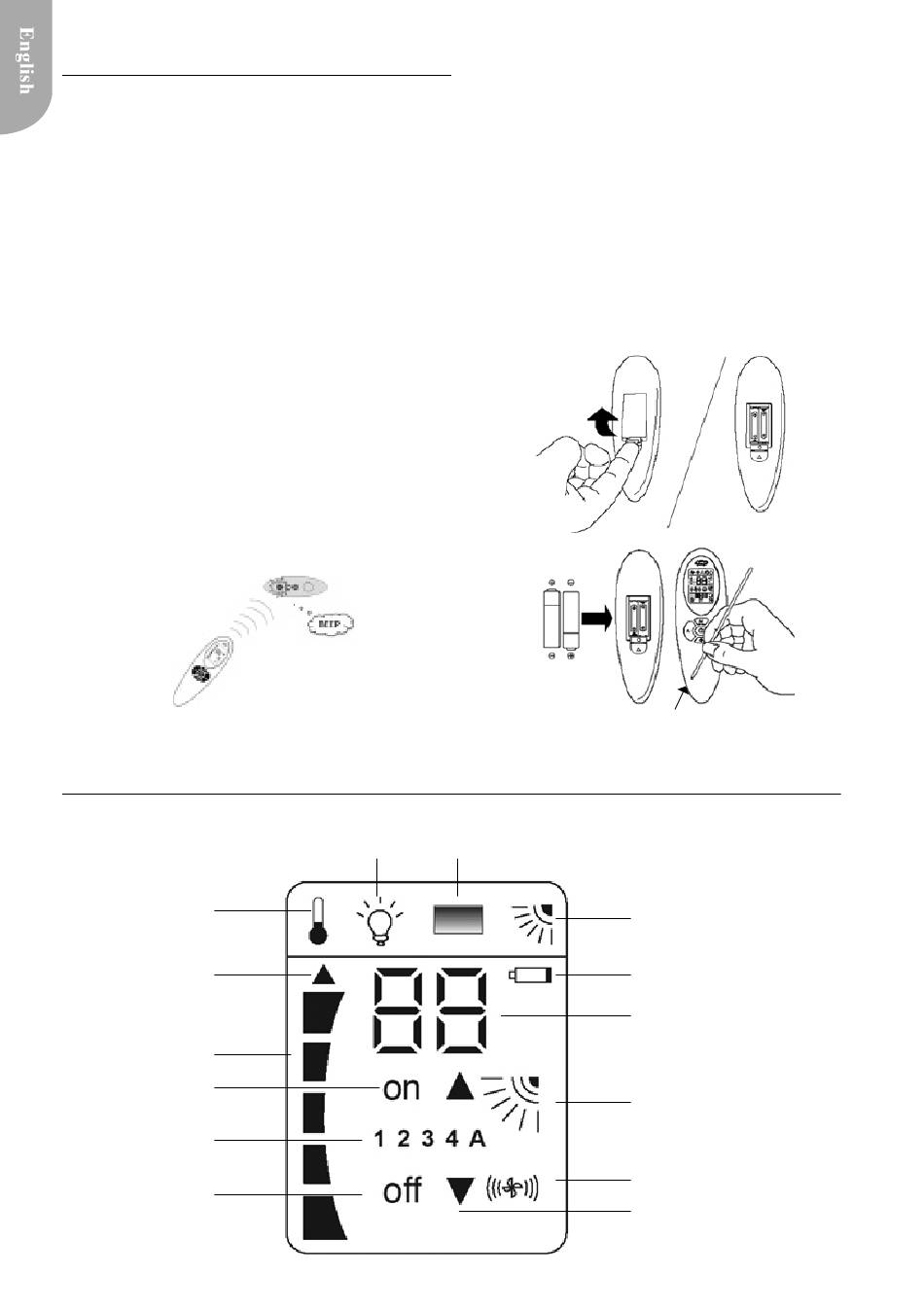

Figure 1: WTC-IR together with the infrared receiver
IMPORTANT: The infrared receiver is not
included in the package.
Remote Control Display
HVAC menu
Command sent to
the controller
Comfort temp. step
Lights ON
Lights / Blinds
control group
Lights OFF
2
Lights control menu Blinds control menu
Batteries
When the battery symbol appears on the
screen, this indicates that the batteries are
exhausted.
The remote control uses two alkaline
batteries (1.5 V, LR03 AAA). The average
battery life during normal use is
approximately one year.
IMPORTANT: Do not use used batteries or
batteries of different types.
Reset button
Figure 2: Removing the battery cover / changing
the battery
Louver control menu
Low battery signal
Displayed value
- louver position
- comfort temperature
Louver position
Fan speed
▲ Raising blinds
▼ Lowering blinds
(Louver menu)
(optional)
