4.6.Setting the operating mode of the output channel to monostable
In order to set the channel operating mode to monostable, press and release the button
of the selected channel C1/C2/C3, the red C1/C2/C3 diode will light up and the yellow LED
indicating the currently set channel operating mode. By repeatedly pressing theC1/C2/C3
button, set the
monostable mode
To confirm, press and hold the C1/C2/C3 button again. The LED with the description
MONO will go out and start flashing after a while. While holding down the C1/C2/C3
button, count the required number of blinks, and then release the C1/C2/C3 button. The
counted number of MONO diode pulses means the channel activation time in seconds or
minutes when after releasing the button, while the yellow MONO diode is flashing, the
C1/C2/C3 button is pressed for a moment.To set theON time to 0.5s, release theC1/C2/C3
button before the first flash of the yellow LED with MONO description.
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
1
PRESS C1/C2/C3
BUTTON
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
5
MONO LED WILL TURN OFF
FOR A WHILE...
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
RELEASING C1/C2/C3 AT
6b
THIS MOMENT PROGRAMS
THE TIME OF 0,5S

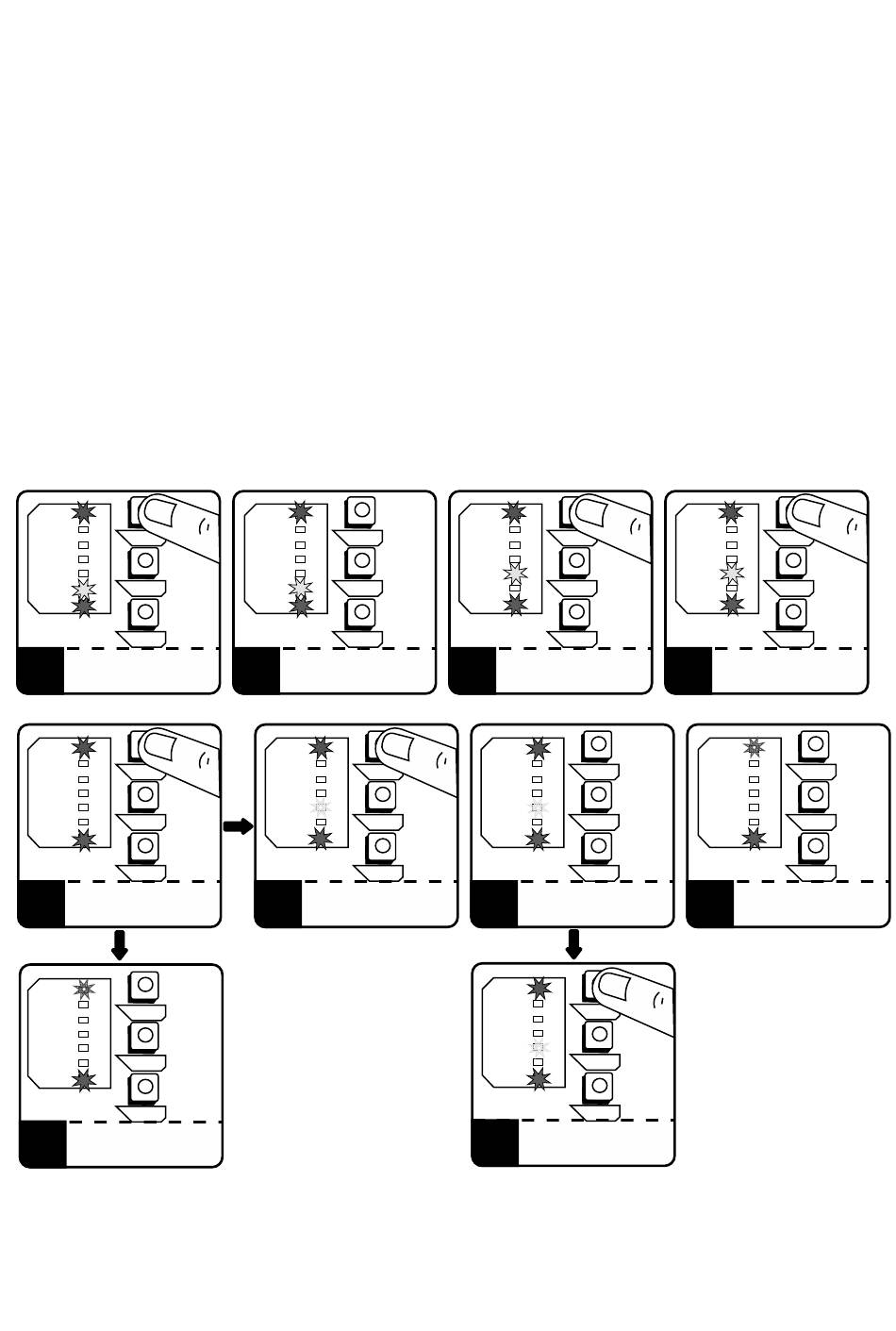

Fig. 6 Setting the monostable mode.
, signaled by the yellow LED with
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
2
C1/C2/C3 + MOM/MONO/BIST
WILL LIGHT UP
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
...MONO LED WILL BLINK
6a
COUNTING THE SECONDS
/ MINUTES
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
3
PRESS C1/C2/C3
TO LIGHT MONO LED
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
RELEASE C1/C2/C3
7
AFTER COUNTING DESIRED
TIME IN SECONDS
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
PRESS SHORTLY C1/C2/C3
8b
WHILE MONO FLASHES
TO SET TIME IN MINUTES
20
MONO
description.
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
4
PRESS AND HOLD
C1/C2/C3 BUTTON AGAIN
C1
C2
C1
C3
MOM
MONO
C2
BIST
POW
C3
MONO LED WILL BLINK
8a
AND THEN GOES OFF
TIME SAVED IN SECONDS
