2.2.5 Connect the power adapter

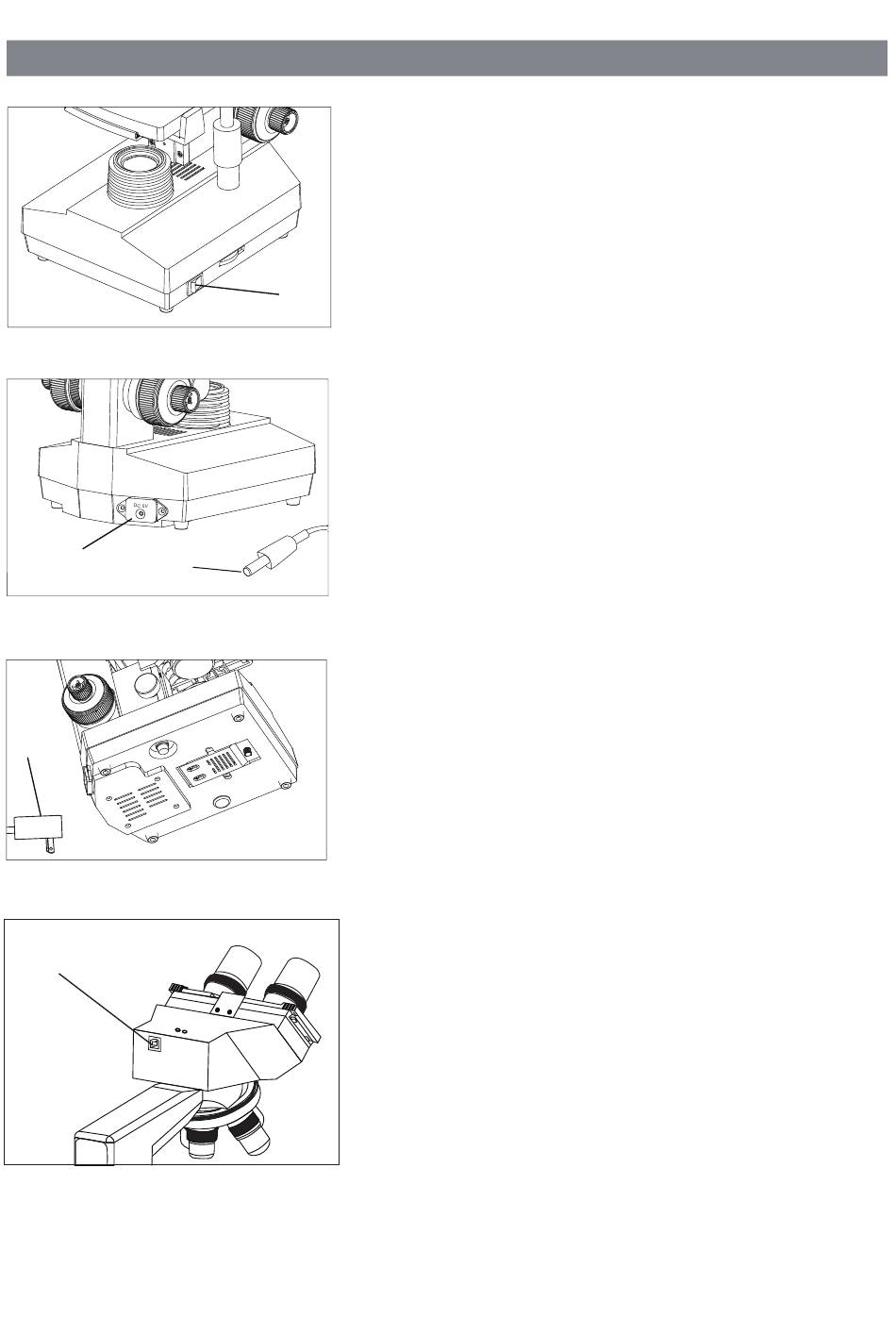

(Fig.8, 9,10)
★ The cable and cords are vulnerable
when bent or twisted, never subject
the power adapter to excessive force.
1. Turn the main switch① to "O" (off ) state
before connecting the power adapter.
2. Insert the power plugs② into the power
jack③ of the microscope; make sure the
connection is well.
3. Plug the power adapter④ into the power
supply receptacle safely. Make sure the
connection is well.
★ Do use the supplied power adapter all
the time. If lost or damaged, select the
same power adapter, please.
2.2.6 Taking photograph and video
(Fig.11)
◇ After connecting the microscope and
computer with USB cable, we can take
photograph or video with the microscope.
1. To connect the camera to a computer, do as
follows: plug one end of the USB cable to an
open USB port on your computer, and the
other end to the camera port ④ on the
binocular head of microscope.
2. Follow the provided CD to set up the image
software and open the software.
3. Adjust the microscope until you can observe
image through both eyepieces and computer
screen clearly, now you can take photograph
and video.
