2.2 Assembly Steps

Fig.1
Fig.2
Fig.3
Fig.4
①
5

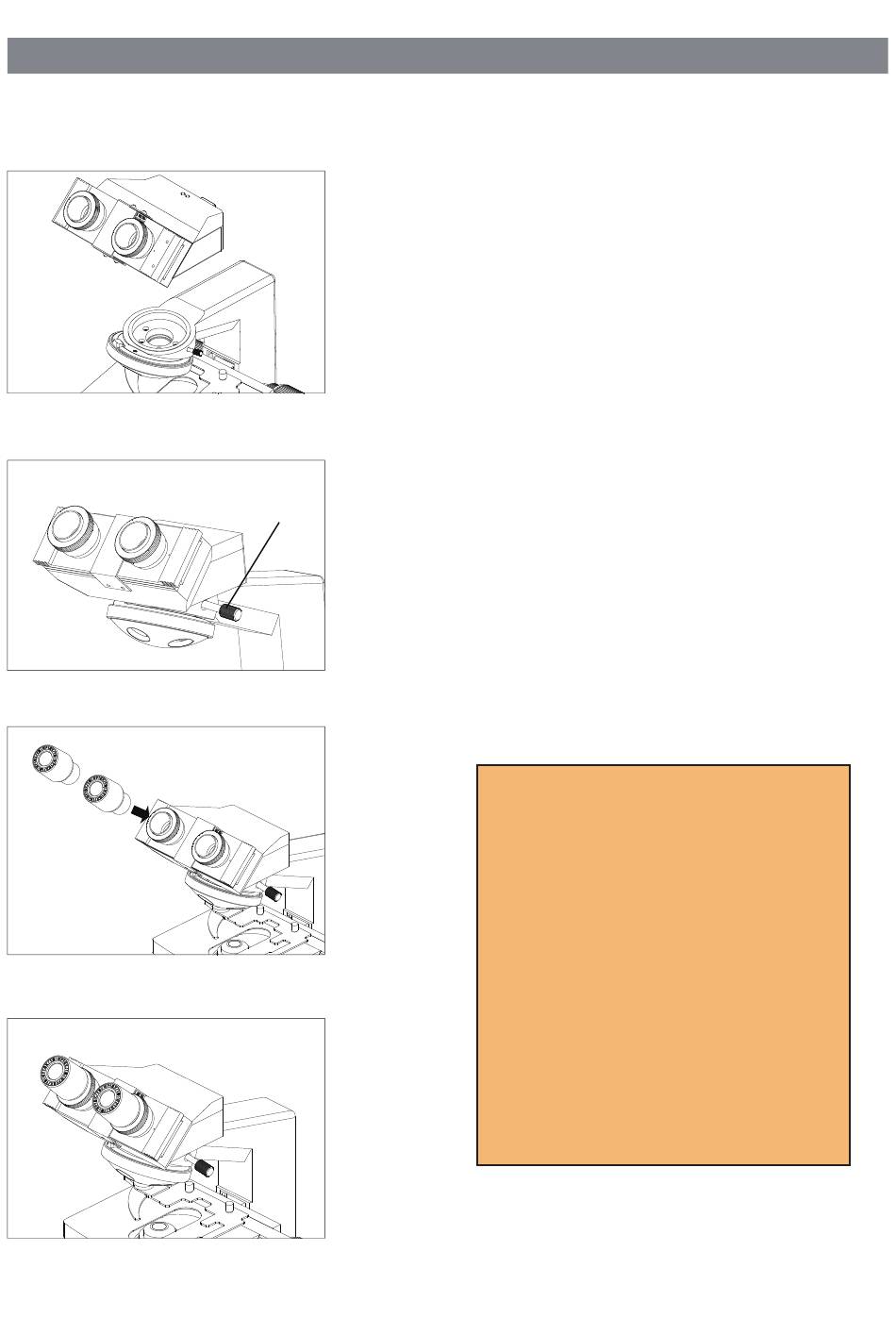

2.2.1 Installing digital viewing head
(Fig.1, 2)
Insert the digital viewing head into the
microscope head, turn into the right position,
then screw down the bolt①to fix it.
2.2.2 Installing the eyepieces (Fig.3,
Fig.4)
Insert the eyepieces into the eyepiece tube
until they are against each other as shown in
Fig.4.
NOTE:
Operation Conditions：
1. Temperature: 0℃ ～ 40℃, Maximum
Relative Humidity: 85%.
2. High Temperature: High Temperature
and humidity will result in a mildewing,
dew and even ruinous instrument.
3. Avoid placing the instrument in a dusty
environment. When ending your microscope
operation, please cover it with the dust cap.
4. Lay the microscope in a plan and stable
position, please.
