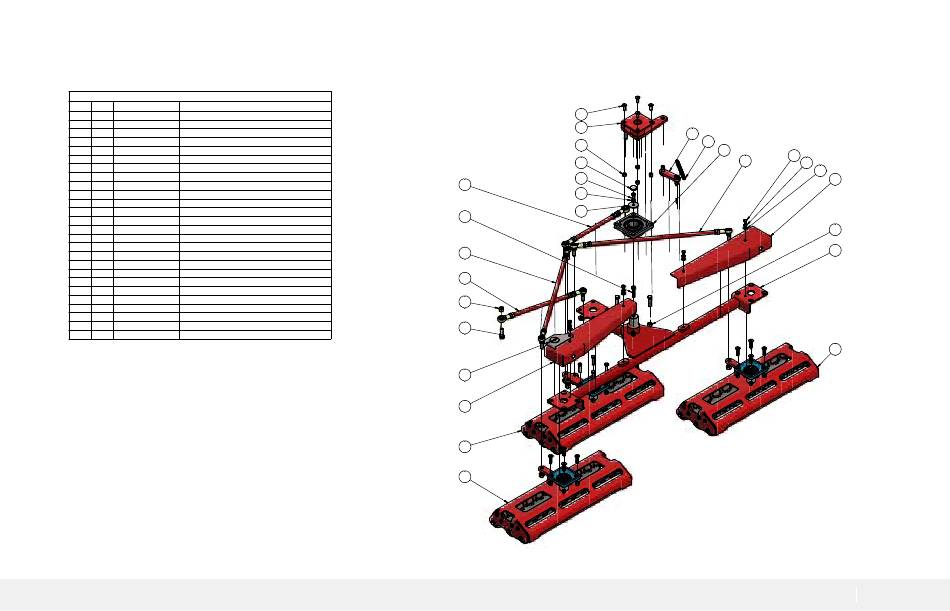

Assembly, Triple Steering Head
ASSEMBLY, TRIPLE STEERING HEAD
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
EL492
M10 X 43 X 3 FLAT WASHER, ZP
2
1
R5049
SPRING, EXTENSION, ZP - Ø1/2"x18g.x5" LG
3
4
R8046
5/16" X 3/4" FLAT WASHER, ZP
4
4
R8051
5/16" SPRING WASHER, ZP
5
1
R8052
3/8" SPRING WASHER, ZP
6
4
R8055
3/8" UNF NYLOC NUT, ZP
7
4
R8057
7/16" UNF NYLOC NUT, ZP
8
4
R8063
5/16" UNF X 1/2" BOLT, ZP
9
1
R8066
3/8" UNF X 3/4" BOLT, ZP
10
1
R8098
1/2" UNF X 1-1/2" BOLT, ZP
11
1
R8101
1/2" UNF NYLOC NUT, ZP
12
4
R8158
3/8" UNF X 1" FLAT HEAD SOCKET SCREW, ZP
13
4
R8405
7/16" UNF X 1-3/4" BOLT, ZP
14
1
R8515
FLANGED BEARING, UCF208
15
1
R8880
METAL ROUND PLUG
16
1
R8970
WELDMENT, TRI-HEAD PIVOT BEAM
17
1
R8977
ASSEMBLY, STEERING BOSS BRACKET
18
1
R8986
ASSEMBLY, STEERING ROD
19
1
R9310
ASSEMBLY, CENTRAL STEERING HEAD
20
2
R9311
ASSEMBLY, OUTER STEERING HEAD
21
2
R9316
ASSEMBLY, CONNECTING ROD
22
1
R9319
GUARD, PIVOT BEAM, LH
23
1
R9320
GUARD, PIVOT BEAM, RH
24
1
R9324
WELDMENT, LINK PLATE, STEERING
25
1
R9330
ASSEMBLY, STABILISER ROD
26
1
R9447
WELDMENT, SCRATCH GUARD
PART NUMBER: RS2472
REVISION: D
DATE: 28/12/2020
BY: SP
RB70 Benutzerhandbuch
12
17
6
15
9
18
5
1
13
21
25
11
10
26
22
19
20
24
2
14
8
21
4
3
23
7
16
20
PART NUMBER: RS2472
REVISION: D
www.truturf.com
38
