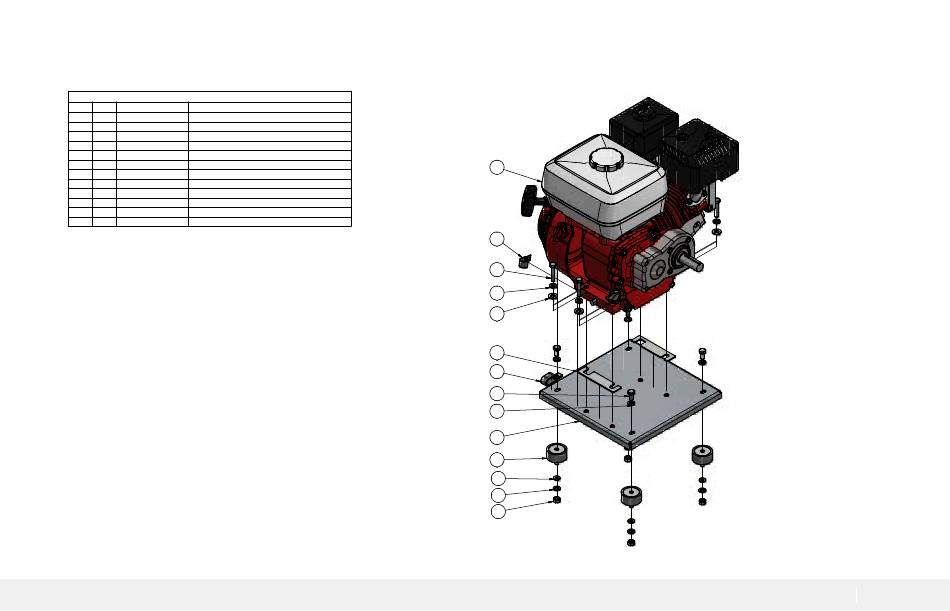

ASSEMBLY, ENGINE MOUNT, GX200
Assembly, Engine Mount - GX200
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
4
R5142
ISOLATION MOUNT
2
1
R5149
PLATE, ENGINE MOUNT, WELDED, ASSY
3
4
R8043
M8 NUT, ZP
4
4
R8048
3/8" X 3/4" FLAT WASHER, ZP
5
12
R8051
5/16" SPRING WASHER, ZP
6
4
R8065
5/16" UNF X 1-1/2" BOLT, ZP
7
4
R8083
M8 X 16 SET SCREW, ZP
8
4
R8200
1/4" X 9/16" X 1/16" FLAT WASHER, ZP
9
1
R9001
ENGINE, HONDA, GX200, 2:1 REDUCTION
10
1
R9155
J-CLIP, VINYL, 5/16" X 9/32"
11
1
R9156
DOUBLE TUBE CLAMP, 5/16" X 13/32" X 11/16"
12
4
T39072
SHIM, ADJUSTING, ENGINE MOUNT
PART NUMBER: R9427
REVISION: A
DATE: 28/12/2020
BY: SP
RB70 Benutzerhandbuch
9
10
6
5
4
12
11
7
5
2
1
8
5
3
PART NUMBER: R9427
REVISION: A
www.truturf.com
