Assembly, Trailer

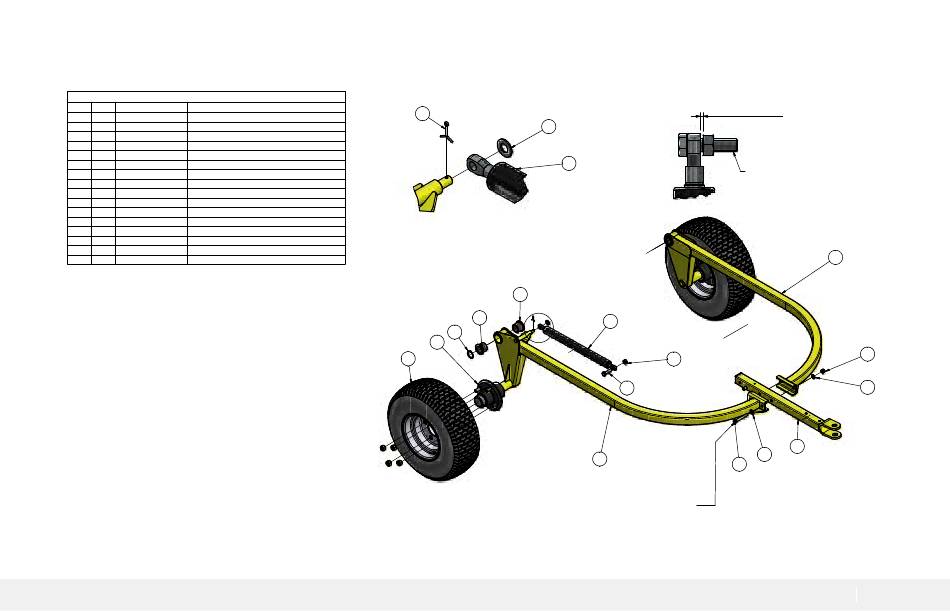

ASSEMBLY, TRAILER
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
2
E7007
BUSH, FLANGED
2
1
R5210
GAS STRUT ASSY
3
1
R8036
PIN, SPLIT, ZP - M2.5 x 20 LG.
4
1
R8038
BOLT, HEX, ZP - M10 x 40 LG
5
4
R8048
WASHER, FLAT, ZP - 3/8" ID x 3/4" OD
6
2
R8055
NUT, HEX, NYLOC, P-TYPE, ZP - 3/8"UNF (FULL)
7
2
R8082
CIRCLIP, EXT, BLK, 30mm
8
1
R8088
M10 NUT ZP
9
1
R8174
WASHER, FLAT, ZP - M10
10
2
R8190
BOLT, HEX, ZP, 3/8" UNF x 2.75" LG.
11
2
R9037
WHEEL HUB COMPLETE PARALLEL AXLE
12
2
R9074
WHEEL, 4 STUD, 18" TYRE
13
1
R9335
ASSEMBLY, DRAWBAR
14
2
RS2424
BUSH, FLANGED, CHAMFERED
15
1
RS2461
WELDMENT, TRAILER ARM, LH
16
1
RS2462
WELDMENT, TRAILER ARM, RH
PART NUMBER: R9342
REVISION: A
DATE: 01/09/2020
BY: SP
RB70 Benutzerhandbuch
3
9
A
14
A
1
7
11
12
WHEN TRAILER DRAWBAR IS BEING ASSEMBLED THESE BOLTS & NUTS
MUST BE CORRECTLY TIGHTENED TO 47 ft-lbs OR 63.7 Nm. IF NOT THE
DRAWBAR CAN BECOME LOOSE AND THE HOLES WILL WEAR
MAKING IT DANGEROUS WHEN TOWING OR RAISING / LOWERING THE TRAILER.
MINIMUM GAP
TO ALLOW STRUT
TO ROTATE FREELY
2
TO THE BODY
USE LOCTITE 243
ON THREADS
TO PREVENT IT FROM
VIBRATING LOOSE.
2
8
4
16
10
www.truturf.com
WHEN FITTING
15
6
5
13
5
PART NUMBER: R9342
REVISION: A
27
