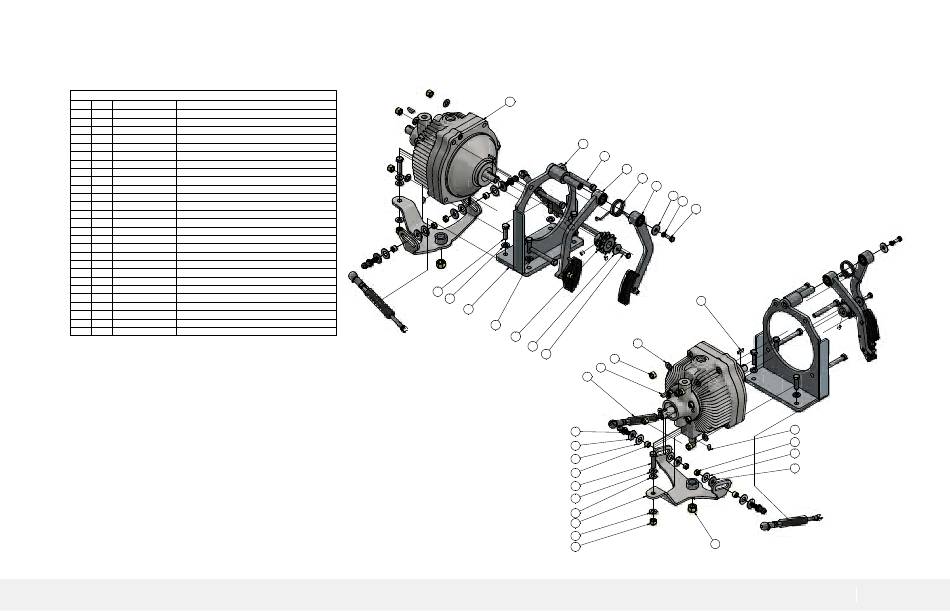

Assembly, Transmission Unit
ASSEMBLY,TRANSMISSION UNIT
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
R5089
3/16" X 3/4" WOODRUFF KEY
2
1
R5094
SPRING, TENSIONED, CHAIN ARM
3
1
R5131
BRACKET, TRANSMISSION, WELDED, EATON 11, ASSY
4
1
R5133
EATON 11 HYDROSTATIC TRANSMISSION - 1100-078
5
1
R5136
SPROCKET, 11TOOTH, TRANS. CHAIN 08B-2
6
1
R5156
1/8" X 5/8" WOODRUFF KEY
7
1
R5171
WELDMENT, TRANSMISSION YOKE
8
1
R5251
ASSEMBLY, CHAIN TENSIONER ARM, LH
9
1
R5251_1
ASSEMBLY, CHAIN TENSIONER ARM, RH
10
2
R8045
1/4" X 1" FLAT WASHER, ZP
11
4
R8047
5/16" X 1" FLAT WASHER, ZP
12
7
R8048
3/8" X 3/4" FLAT WASHER, ZP
13
1
R8050
1/4" SPRING WASHER, ZP
14
4
R8052
3/8" SPRING WASHER, ZP
15
5
R8055
3/8" UNF NYLOC NUT, ZP
16
1
R8059
1/4" UNC X 1" SET SCREW, ZP
17
1
R8060
1/2" UNC NYLOC NUT, ZP
18
4
R8069
3/8" UNF X 1-1/4" SET SCREW, ZP
19
1
R8070
3/8" UNF X 1-1/2" SET SCREW, ZP
20
4
R8073
3/8" UNF X 3" BOLT, ZP
21
1
R8118
1/4" UNC X 3/4" SET SCREW, ZP
22
2
R8210
BALL, FITTING, M8 x 13 DIA, STABILUS
23
4
R8218
12.7 X 25.4 X 1.6mm FLAT WASHER, ACETAL
24
2
R8256
M8 NYLOC NUT, ZP
25
1
R9085
KEY, OUTPUT SHAFT, EATON 11
26
2
R9358
ASSEMBLY, GAS STRUT
27
2
T39478
SPACER, PEDAL STRUT, YOKE TRANSMISSION
PART NUMBER: RS2061
REVISION: F
DATE: 29/12/2020
BY: SP
