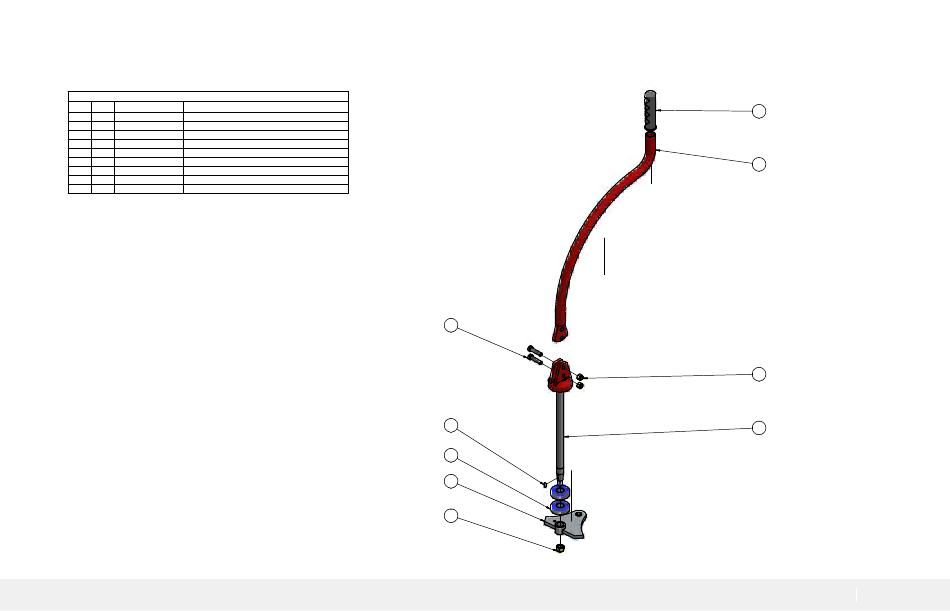

ASSEMBLY, JOYSTICK
Assembly, Joystick
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
R5009
GRIP, JOYSTICK - 27mm Dia.
2
1
R5156
1/8" X 5/8" WOODRUFF KEY
3
1
R6009
JOYSTICK SHAFT, WELDED, ASSY
4
2
R8018
BALL BEARING S6304-2RS, SS
5
2
R8055
3/8" UNF NYLOC NUT, ZP
6
1
R8060
1/2" UNC NYLOC NUT, ZP
7
2
R8070
3/8" UNF X 1-1/2" SET SCREW, ZP
8
1
R8989
WELDMENT, STEERING ARM
9
1
RS2007
JOYSTICK, WELDED, ASSY
PART NUMBER: RS2471
REVISION: F
DATE: 23/12/2020
BY: SP
RB70 Benutzerhandbuch
7
2
4
8
6
1
9
5
3
PART NUMBER: RS2471
REVISION: F
