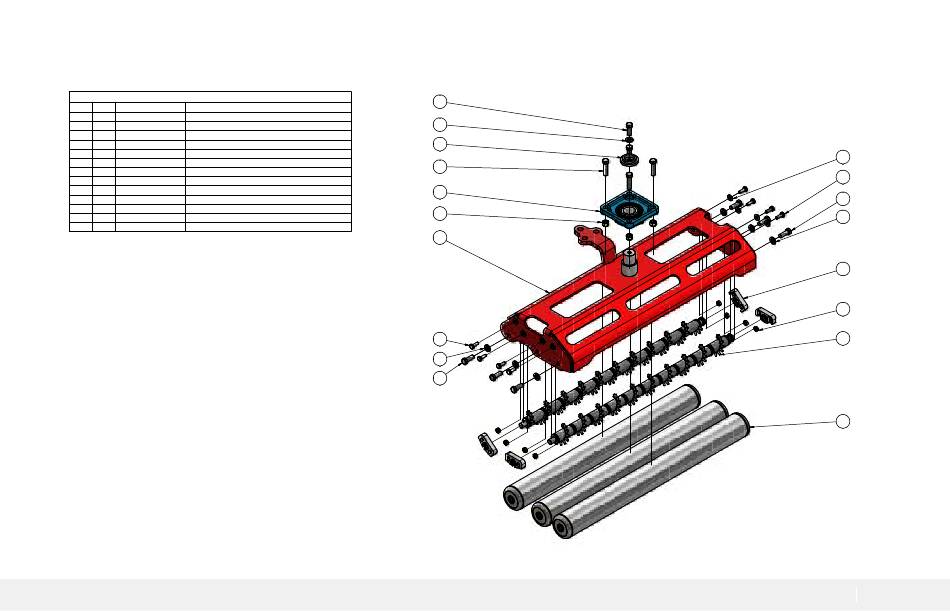

ASSEMBLY, CENTRAL STEERING HEAD
Assembly, Central Steering Head
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
E7216
BEARING UNIT ASSY UCF206
2
7
R8052
3/8" SPRING WASHER, ZP
3
4
R8055
3/8" UNF NYLOC NUT, ZP
4
7
R8067
3/8" UNF X 1" BOLT, ZP
5
4
R8070
3/8" UNF X 1-1/2" SET SCREW, ZP
6
8
R8137
1/4" UNF X 3/4" SET SCREW, ZP
7
8
R8140
1/4" X 5/8" X 0.065" FLAT WASHER, ZP
8
1
R8225
WASHER, MOULDED, RUBBER, DAMPNER
9
8
R8836
1/4" UNF NYLOC NUT, (TYPE T), ZP
10
1
R9312
WELDMENT, CENTRAL STEERING HEAD
11
4
R9421
ASSEMBLY, BEARING HOUSING, NODULE
12
3
RS2050
SMOOTHING ROLLER, LONG, COMPLETE ASSY
13
2
RS2055
ASSEMBLY, NODULE SWEEPER
PART NUMBER: R9310
REVISION: B
DATE: 23/12/2020
BY: SP
