ASSEMBLY
Since we just use the lightest Materials possible, the
following steps have to be carried out accordingly this
manual.
FRONT WING

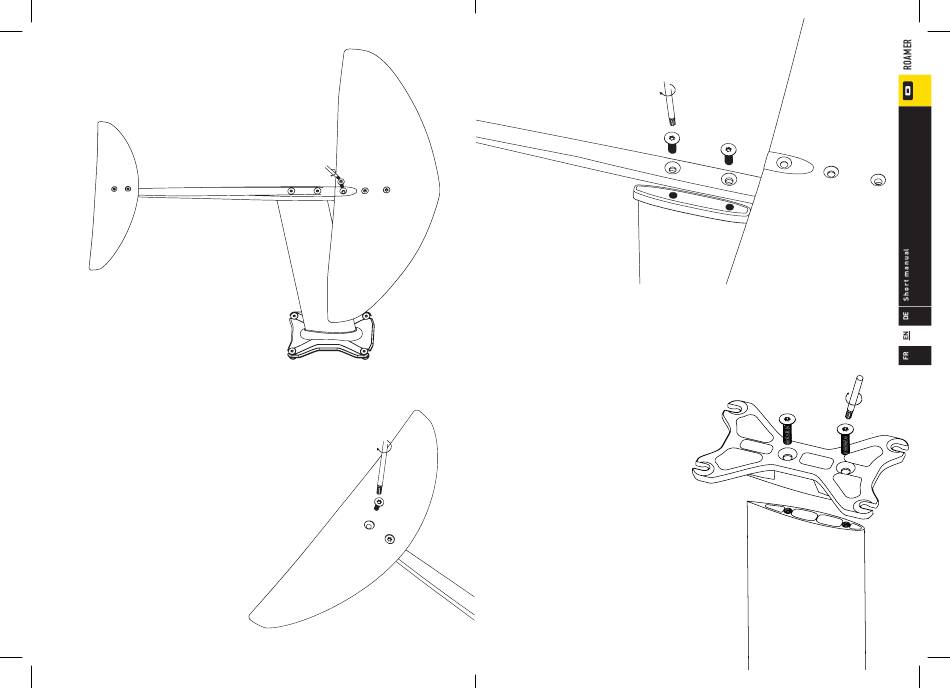

Items needed: 3x M8x22 mm Screw
Make sure your Fuselage is clean and no Sand
particels contaminate the Flansh area and the
threads. Put some tef gel onto your screws to prevent
corrosion. Screw the Screws in Clockwise and fasten
them tightly with our delivered T30 Screwdriver.
Don´t use tools with a bigger leaver arm, it may lead
to damaged threads and screws.
BACK WING
Items needed: 2 x M6 x 20mm Screw
Make sure the Wing, the screw and the threads in
the Fuselage are not contaminated with sand or
other abrasive particles. Apply tef Gel to the Screw
turn it clockwise until the screw clams the rear
wing into its final position.
13
MAST-FUSELAGE CONNECTION
Items needed: 2x M8 x 30mm Screw
Make sure neither the fuselage, mastflansh or
screws are contaminated with abrasive particles
like sand.
MAST-MASTBASE CONNECTION
Items needed: 2 x M8 x 30mm Screw
Conduct the assembly according to the illust-
ration.
Take the M8 screws and apply some tef gel to the
threads and tighten the screws clockwise.
