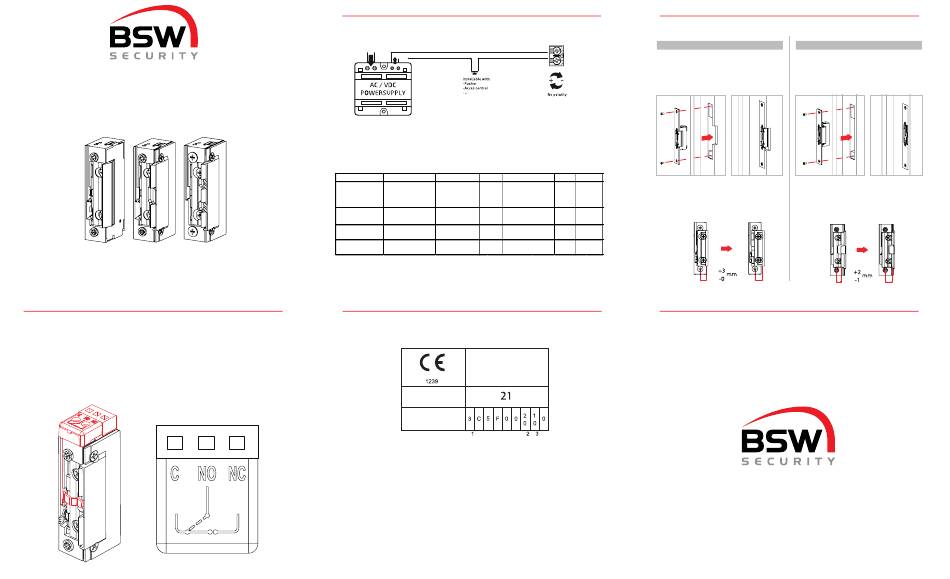

F3
INSTALLATION MANUAL
3- F3001 CONNECTION
Microswitch allows to get door status indication.
Depending on the signal (open or closed), the
connection must be done using COM, NC, NO pins.
CONTACT (NO) CONTACT (NC)
Lever released: signal OFF Lever released: signal ON
Lever pushed: Signal ON Lever pushed: Signal OFF
1- ELECTRIC STRIKE WIRING
The electric strike must be connected to power supply.
230 VAC VAC/VDC
INPUT OUTPUT
It's necessary to choose correct power supply according to the electric
requirements of the different coils, detailed on table below.
K L N
10-24V AC/DC < 1 24 V AC/DC < 1 10-24V AC/DC < 1
6-12 V
Voltage range MIN 11-13VDC MIN 22-26VDC MIN 11-13VDC
AC/DC
100%ED 100%ED 100%ED
Ohm
43 Ω 132 Ω 8 Ω
Resistance
Max. Preload
250 N 360 N 290 N
VAC
Max. Preload
50 N 200 N 60 N
VDC
4- NORMATIVE
CE Normative fullfillment according to EN 14846:2008
Fire resistance essay (report 085495-001) according to EN
13501-2:2004. Test done in one leaf metal door.
BSW SECURITY AG
FÖRRLIBUCKSTRASSE 66
ZÜRICH - 8005
DOP211029
EN 14846:2008
1 If installed with lock with use category grade 3.
Value 2: With BSW SECURITY AG faceplate with hole for lockbolt.
2
Value 0: Without faceplate or with faceplate without hole for lockbolt.
Value 1: With monitoring function.
3
Value 0: Without monitoring function.
*BSW SECURITY AG recommends to fix the electric strike to the door frame
using faceplates in stainless steel with ≥3mm thickness and ≥2 fixing points.
Closed faceplate for TOP systems and Open faceplate for standard
systems.
*Faceplates may influence on durability and fire essays.
*BSW SECURITY AG can provide faceplates that guarantee the essays result.
Ask for available faceplates.
2- ELECTRIC STRIKE FIXING
The electric strike must be fixed into the door frame through the
faceplate.
STANDARD
1- Connect the power supply wires to
the electric strike.
2- Insert the electric strike into the
door frame and fix the face plate to
the door frame using screws.
Q R S
*For F3000 with --K or --L, door
frame needs a cut-out to allow
24 8-12V
the latch to turn and open the door.
VAC AC/DC
3- In case of adjust need, use flex
system to adjust the jaw position.
38 Ω 58 Ω 17 Ω
250 N 400 N 270 N
50 N 250 N 55 N
5- MAINTENANCE
.
To guarantee the correct function of the electric strike, follow these
simple steps indicated below:
-Visual and manual check periodically.
-Do not paint or lubricate the electric strike.
-Do not use the electric strike incorrectly.
-Do not wet the electric strike.
TOP VERSION
1- Connect the power supply wires to
the electric strike.
2- Insert the electric strike into the
door frame and fix the face plate to
the door frame using screws.
*For F3000 with -TK or -TL, door
doesn`t need to have a cut-out.
Thanks to the cover guide.
3- In case of adjust need, use flex
