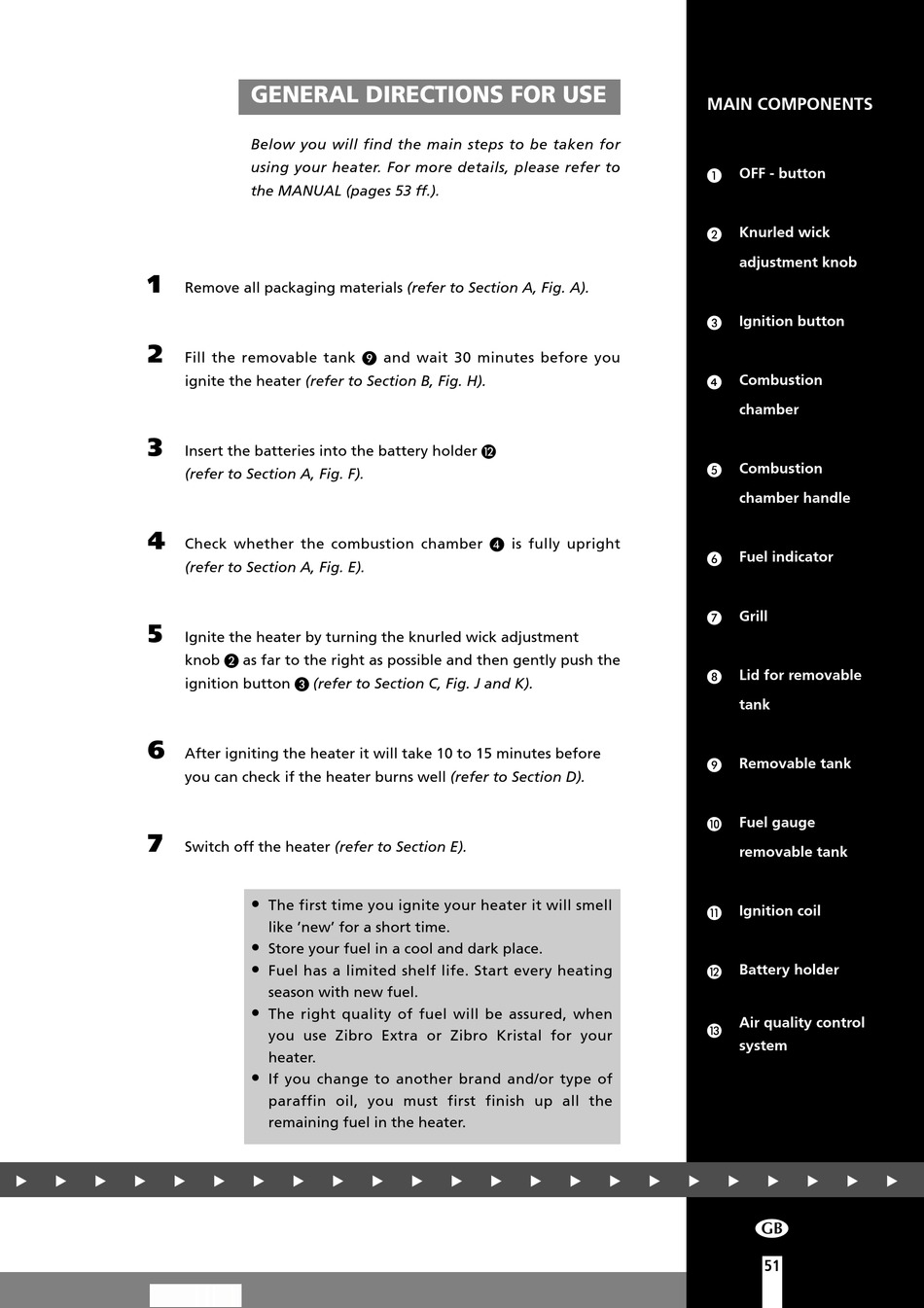

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for
using your heater. For more details, please refer to
the MANUAL (pages 53 ff.).
1
Remove all packaging materials (refer to Section A, Fig. A).
2
Fill the removable tank ¾ and wait 30 minutes before you
ignite the heater (refer to Section B, Fig. H).
3
Insert the batteries into the battery holder ¹
(refer to Section A, Fig. F).
4
Check whether the combustion chamber ¿ is fully upright
(refer to Section A, Fig. E).
5
Ignite the heater by turning the knurled wick adjustment
knob · as far to the right as possible and then gently push the
ignition button » (refer to Section C, Fig. J and K).
6
After igniting the heater it will take 10 to 15 minutes before
you can check if the heater burns well (refer to Section D).
7
Switch off the heater (refer to Section E).
•
The first time you ignite your heater it will smell
like 'new' for a short time.
•
Store your fuel in a cool and dark place.
•
Fuel has a limited shelf life. Start every heating
season with new fuel.
•
The right quality of fuel will be assured, when
you use Zibro Extra or Zibro Kristal for your
heater.
•
If you change to another brand and/or type of
paraffin oil, you must first finish up all the
remaining fuel in the heater.

MAIN COMPONENTS

OFF - button
³
Knurled wick
·
adjustment knob
Ignition button
»
Combustion
chamber
Combustion
´
chamber handle
Fuel indicator
²
Grill
¶
Lid for removable
º
tank
Removable tank
¾
Fuel gauge
µ
removable tank
Ignition coil
¸
Battery holder
¹
Air quality control
system
