9. SYSTEM COMPONENTS
9.1. TRICERA CONTROLLER

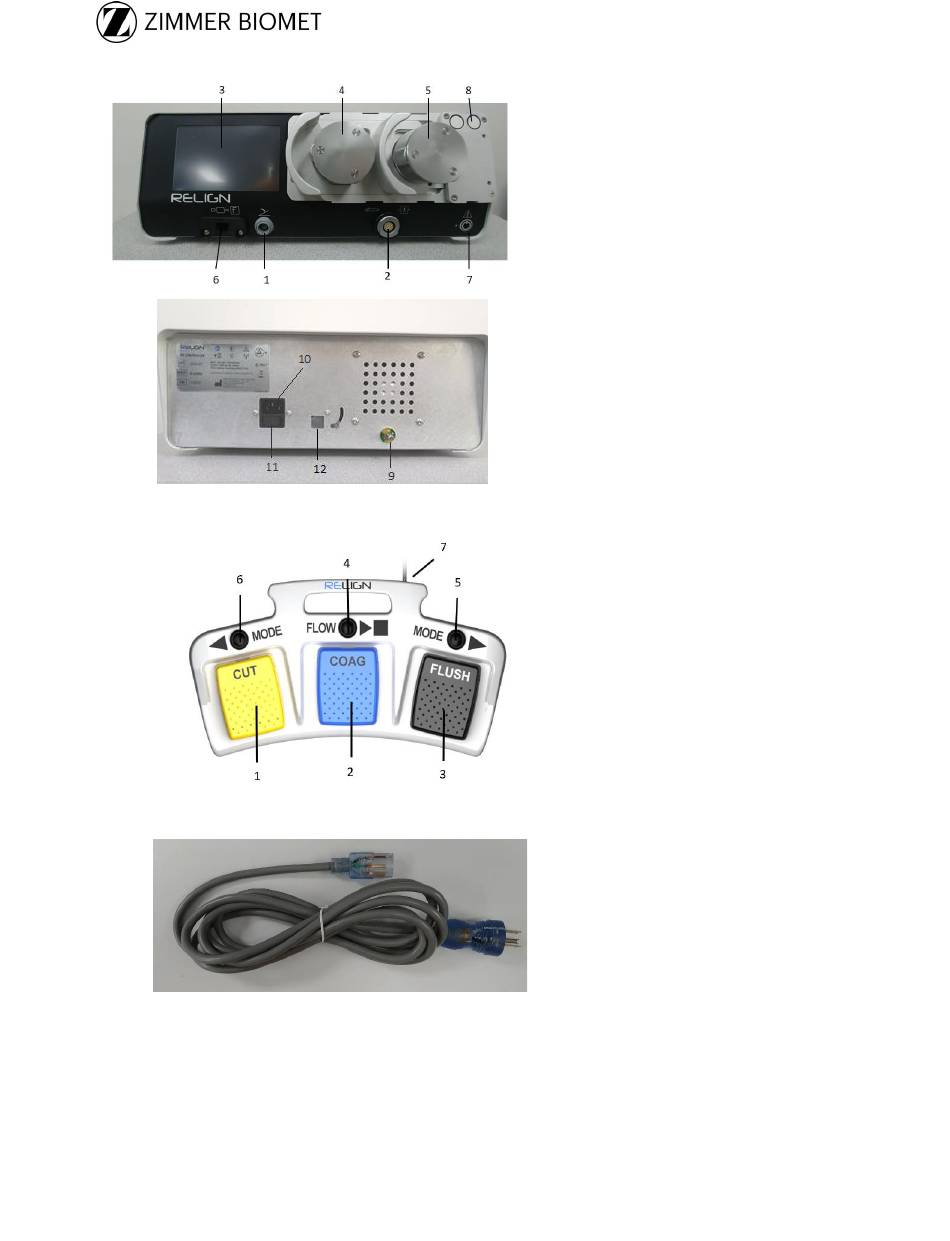

1: Tricera Controller Front
9.2. TRICERA CONTROLLER ACCESSORIES
9.3. Fluid Management Accessories
DCO-1394
Effective Date: 12-JAN-2022
Figure 2: Controller Rear
Figure 3: Tricera Footswitch
Figure 4: Power Cord
1. Footswitch Receptacle
2. Tricera Handpiece Receptacle
3. LCD Touch Screen
4. Inflow Pump
5. Suction Pump
6. Receptacle (reserved for future functionality)
7. Power ON / OFF Switch and Power ON LED
8. Pressure Sensors
Figure
9. Equipotential Lug
10. Power Entry Module
11. Fuse Drawer
12. USB Access Port
1. Activate (Yellow) Pedal
2. COAG (Blue) Pedal
3. Suction pedal
4. Pump Activate button
5. Mode Up button
6. Mode Down button
7. Connector
1. Hospital Grade Power Cord
