2 Functional test/ Self-test
• Test the voltage tester by applying it to familiar voltage
sources
• Connect test prods (1) and (2). The LED for the continuity
test (8) lights up and a signal sounds.
• Press the „ AUTOTEST" button. If the test is successful, all
the LEDs (4) light up along w ith the LED for the continuity
test (8) and a signal sounds.
3
Voltage test
To achieve the protection class CAT III 1000 V and
!
CAT IV 600 V the protective covers (14) must be placed
over the test prods.
• The voltage tester is activated automatically at voltages
of 12 V or above and indicates the measured voltage by
lighting up the relevant LED (4).
4 Single-pole phase test
• Contact the conductor to be tested w ith test prod L2, L1
remains free during the measurement. The LED (5) w ill light
up if an AC voltage is applied on the conductor.
• The single-pole phase test can only be performed w ith fully
charged batteries inserted.
• The single-pole phase test can be carried out as from an AC
voltage of approx. 100 V AC.
• When the single-pole phase test is carried out on the outer
conductor, the indicator function may be adversely affected
under certain conditions (e.g. w hen insulating personnel
protective equipment is used or at insulated locations).
The single-pole phase test is not suitable for checking
!
for zero voltage. To do this, you need to carry out a
tw o-pole phase test.
AC-tiveM aster

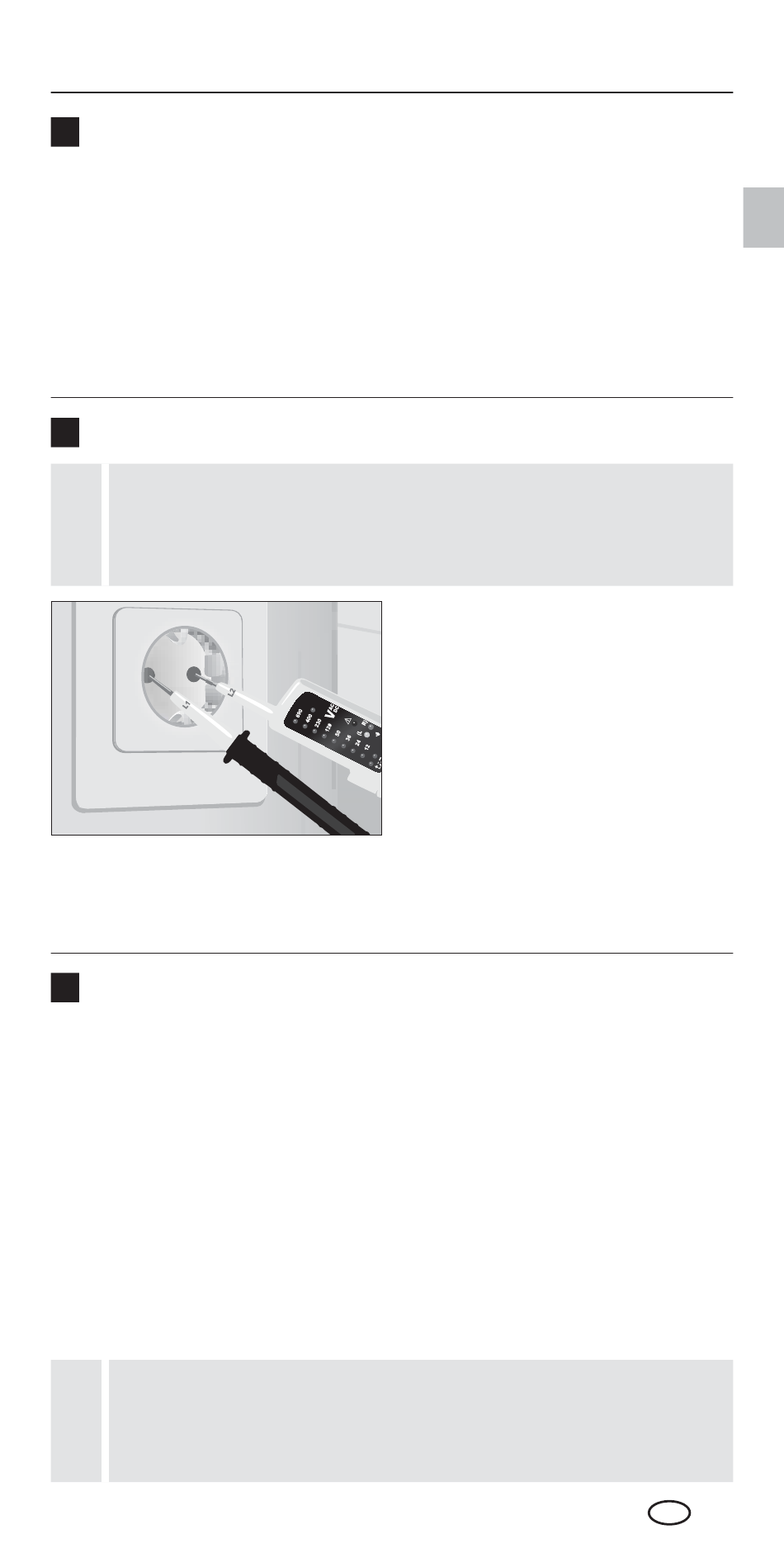

Hold the base device (+)
in your right hand and the
second test prod (-) in your
left hand. Now apply the test
prods to the contacts to be
tested (line, socket, etc.).
