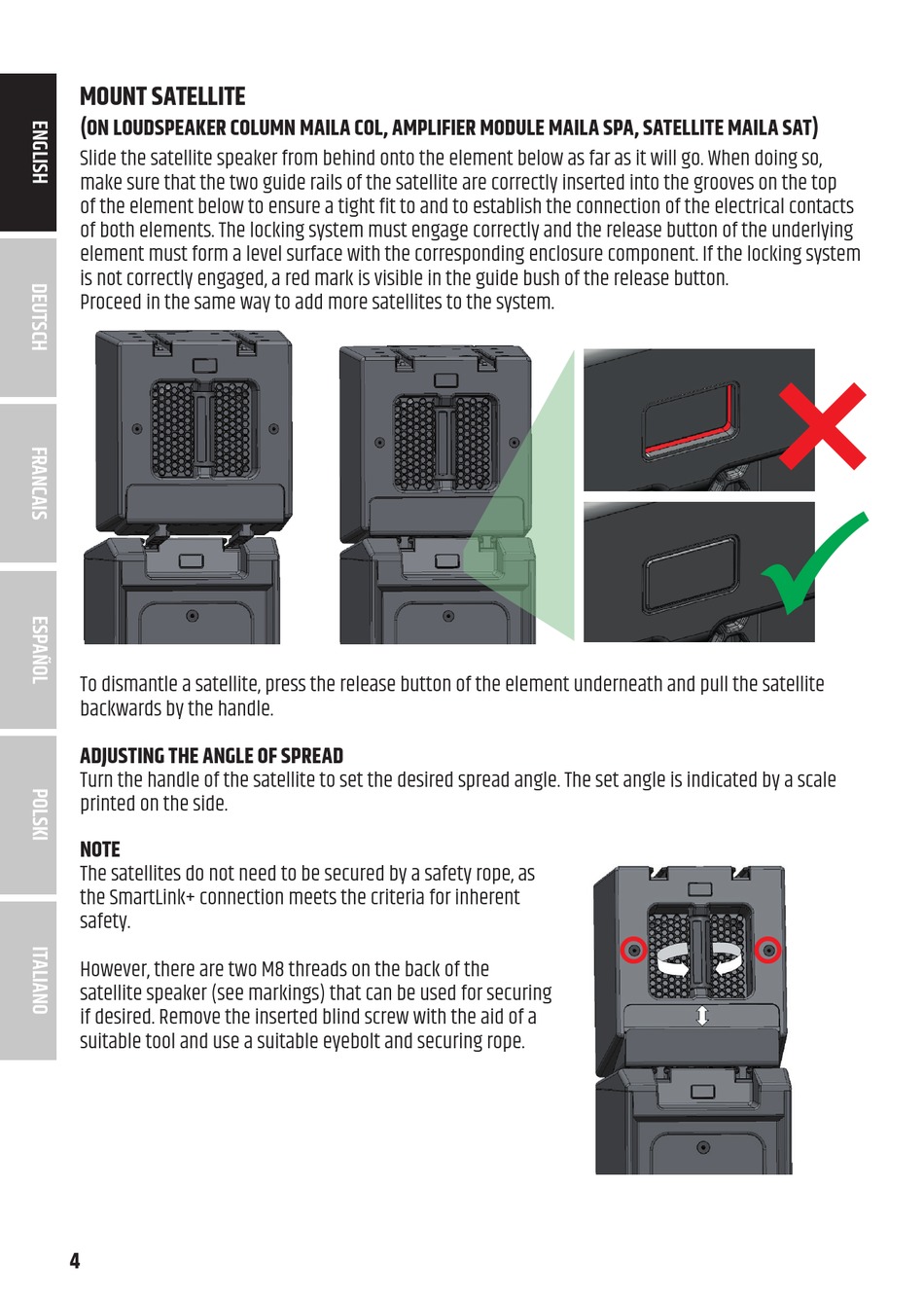

MOUNT SATELLITE

(ON LOUDSPEAKER COLUMN MAILA COL, AMPLIFIER MODULE MAILA SPA, SATELLITE MAILA SAT)
Slide the satellite speaker from behind onto the element below as far as it will go. When doing so,
make sure that the two guide rails of the satellite are correctly inserted into the grooves on the top
of the element below to ensure a tight fit to and to establish the connection of the electrical contacts
of both elements. The locking system must engage correctly and the release button of the underlying
element must form a level surface with the corresponding enclosure component. If the locking system
is not correctly engaged, a red mark is visible in the guide bush of the release button.
Proceed in the same way to add more satellites to the system.
To dismantle a satellite, press the release button of the element underneath and pull the satellite
backwards by the handle.
ADJUSTING THE ANGLE OF SPREAD
Turn the handle of the satellite to set the desired spread angle. The set angle is indicated by a scale
printed on the side.
NOTE
The satellites do not need to be secured by a safety rope, as
the SmartLink+ connection meets the criteria for inherent
safety.
However, there are two M8 threads on the back of the
satellite speaker (see markings) that can be used for securing
if desired. Remove the inserted blind screw with the aid of a
suitable tool and use a suitable eyebolt and securing rope.
