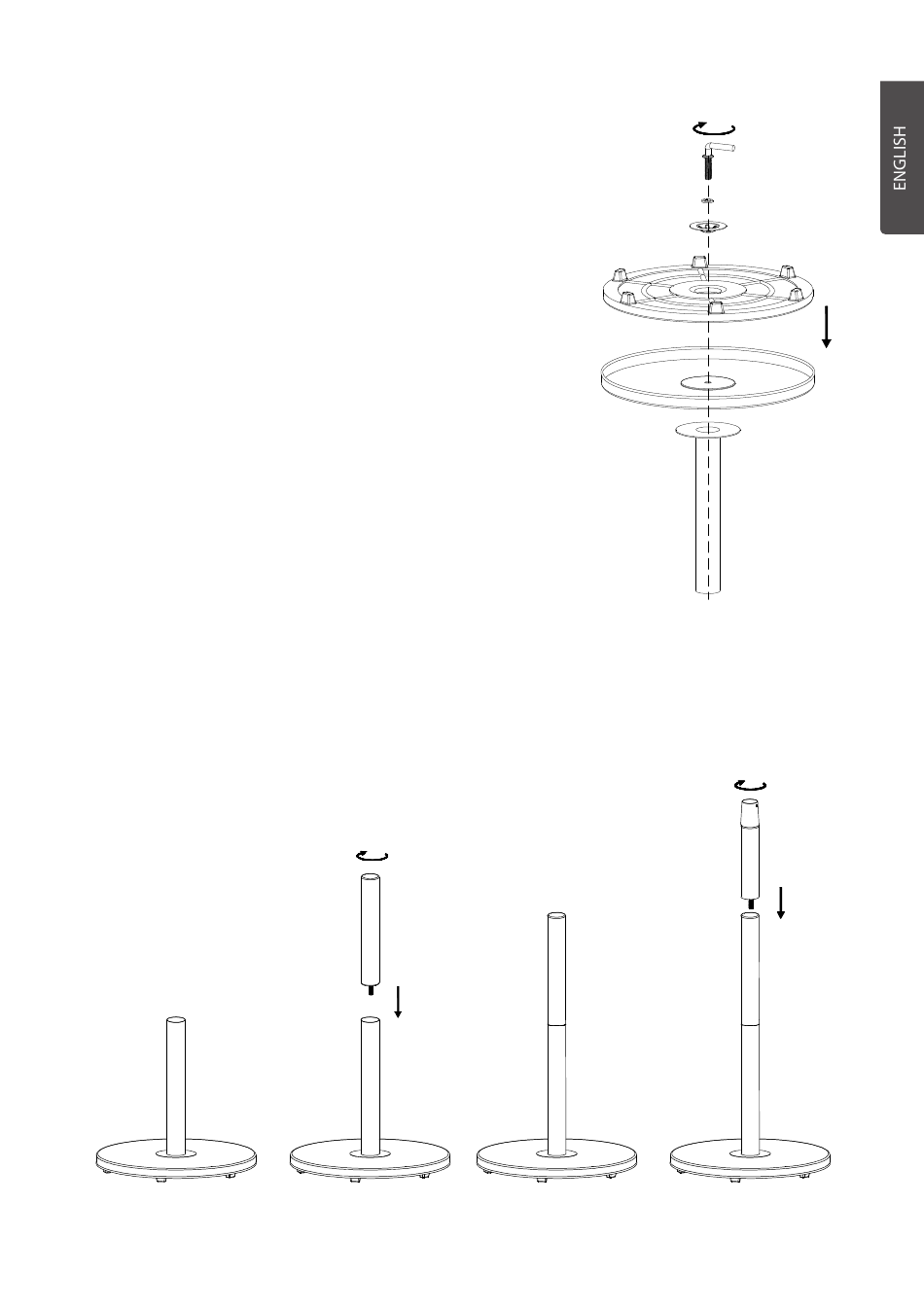

Assembly
1. Remove the L-shaped screw (13), the cup washer (12)
and the split washer (11) from the lower post section (8).
2. Place the base cover plate (9) over the weight plate (10).
Place the lower post section (8) over the depression in the
centre of the base cover plate (9).
3. Put the split washer (11) and the cup washer (12) onto the
threaded end of the L-shaped screw (13) and thread the
screw into the lower post section to fasten all the parts
together.
4. Stand the assembled base on a firm level surface.
5. Fit the middle post section (7) onto the lower post section (8) and push them together.
6. Fit the upper post section (6) onto the middle post section (7) in the same way.
5
