11 Servicing

11.1 Saw head

Drawing items refer to fig. 6
Pos. Pc.
10 1
20 1
30 1
40 2 Head Screw with washer
50 1
60 1
70 2
Description
Saw head housing
main shaft / Fork
Front floating bearing
Back floating bearing
retaining ring
Bearing screw
GOLD II Autopsy
50-60Hz / 220-240 V
HB 8891
E 8810-01GO
E 8810-20/1
E 8810-12
E 8810-13
E 8810-15/1
E 8810-20/2
E 8810-19

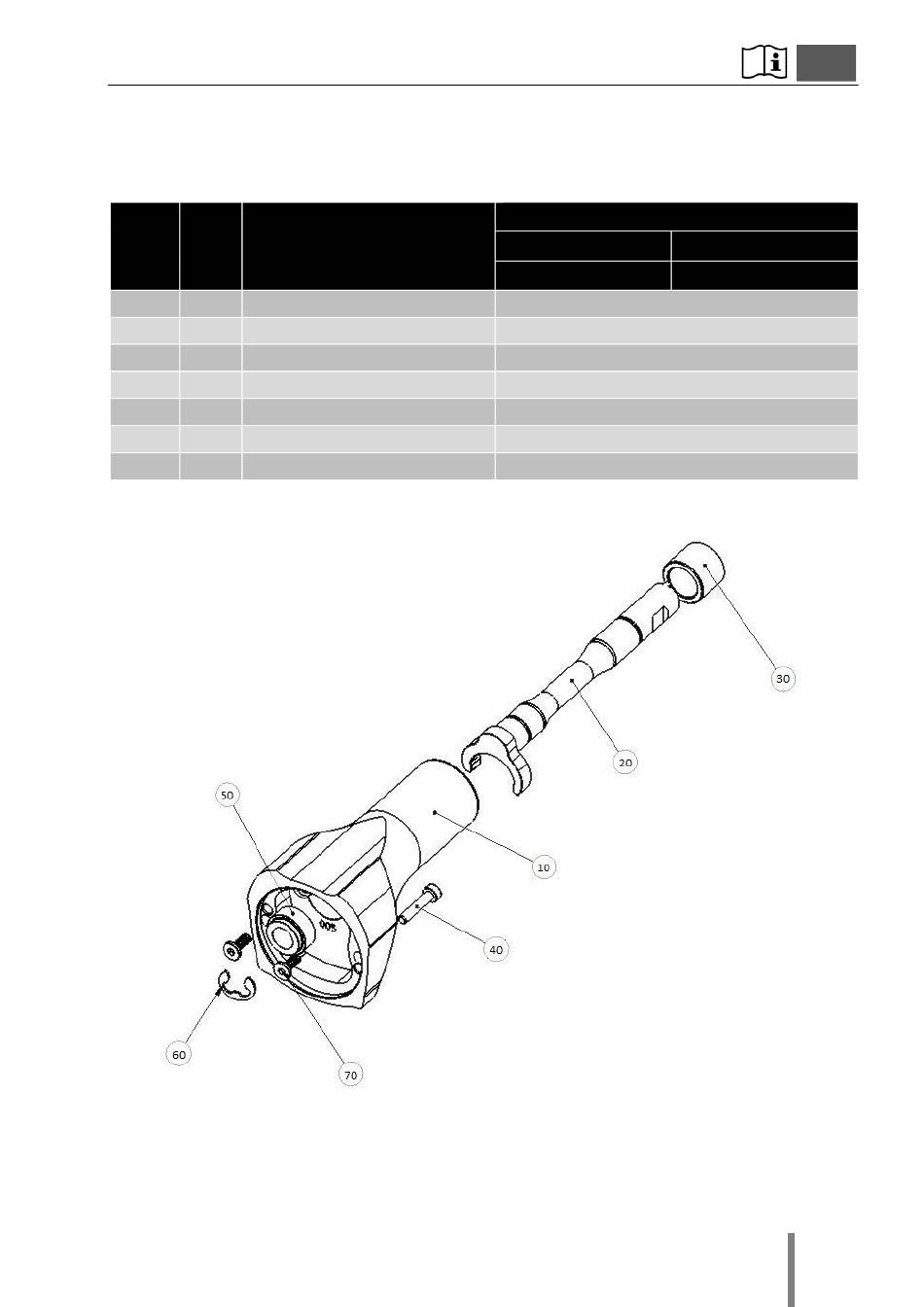

Fig. 6:
Explosion view of the
saw head
