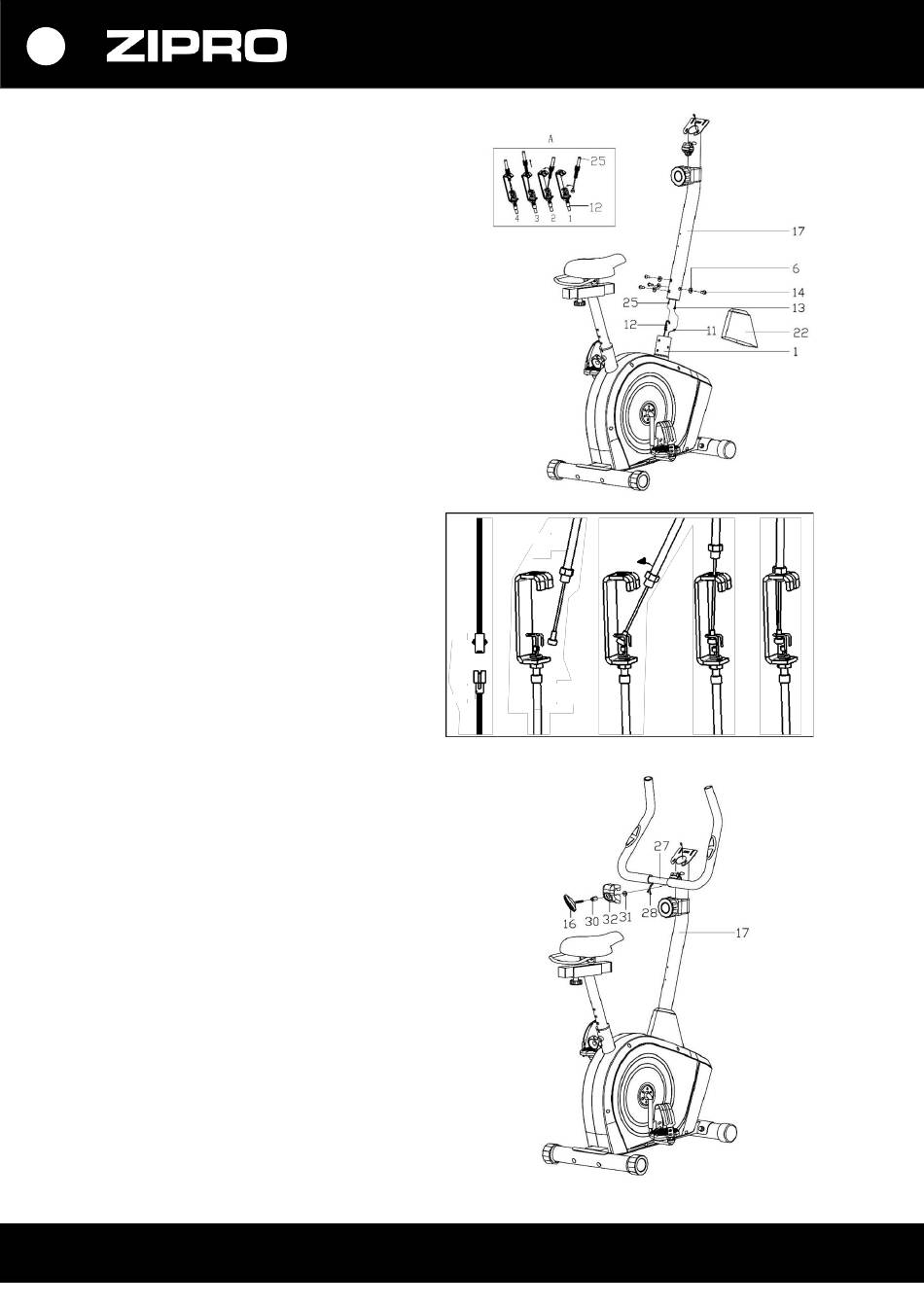

4. Install the handlebar column
Install the cover (22) onto the handlebar post
(17).
Connect the computer cable (11) to the
connecting cable (13) and the resistance
adjustment cable (12) to the resistance
adjustment connecting cable (25) as shown
.
below
25
13
Slide the nut of the upper resistance adjustment
cable (25) into the slot in the bracket of the lower
resistance adjustment cable (12), pull and
tighten the upper cable (25) and move the lower
cable bracket (12) vertically. Cable nut should be
on the bracket as shown in the picture.
Insert the handlebar column (17) into the main
11 12
frame (1) and fix it with Allen bolts (14) and
curved washers (6).
5. Install the handlebar
Remove heart rate cables (28) from the post (27)
through the handlebar post (17).
Fix the handlebar (27) to the handlebar post (17)
with the handlebar angle adjustment handle (16),
handlebar cover (32), separator (30), and flat washer
(31) as shown in the picture.
