4. Illustration Guide

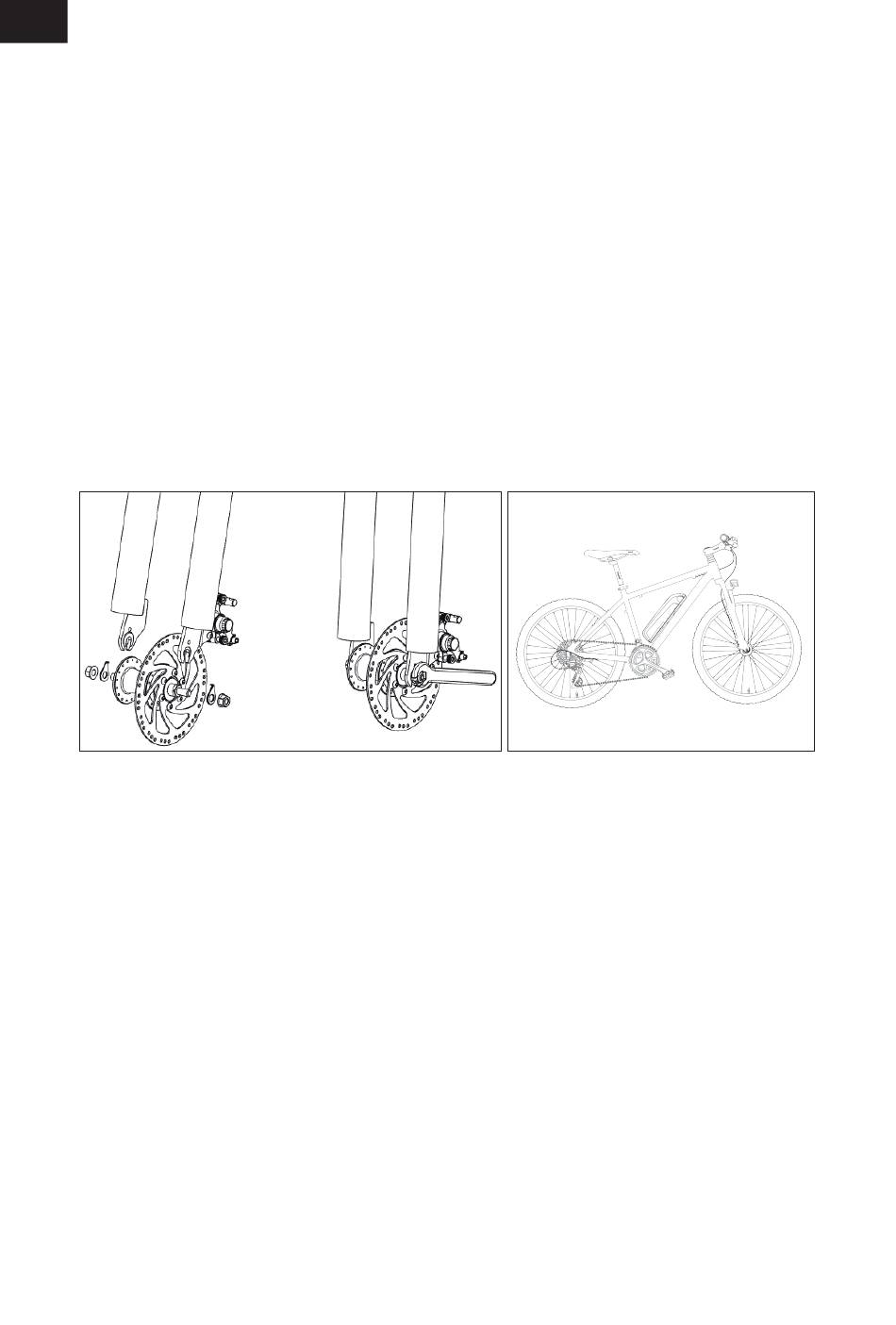

1) Installing the Front Wheel:
A) Take out the bike and make it stand up.
B) Loose the nut, make enough space for the wheel to insert.
C) Insert the wheel between the fork blades so that the axle seats firmly at
the top of the fork dropouts (the slots at the tip of the fork blades). Note:
The lever should be parallel to the fork blade and curved toward the wheel.
D) Fasten the gasket to the front fork and twist the nut, make sure the nut
is tightened.
E) Put the gasket back and twist the nut, make sure the nut is tightened.
Note: If the lever cannot be pushed all the way to a position parallel to the
fork blade, return the lever to the OPEN position. Then turn the tension
adjusting nut counterclockwise one-quarter turn, and try tightening the l
ever again.
2) Installing Handlebar:
A) Open the handlebar clip
B) Put and adjust the handlebar in the middle of the lever.
C) Lock the clip.
