Fingerprint code lock BioAccess PRO
Item Number: DNT000013
Please read this user manual carefully before installation as well as first operation and save it for later
reference. If you allow other persons to use this device, please hand over this user manual as well.
1. Function
The fingerprint code lock BioAccess PRO allows for simple access via the biometric identifier
"fingerprint" as well as via RFID transponder and numerical code. For the sake of increased
access security, multiple types of access can be combined. The weatherproof and van-
dal-proof device is capable of administering up to 1000 accesses. By means of a 26/44-bit
Wiegand interface, a particularly safe data transmission/navigation via external Wiegand
controller is possible. The device is able to interact with Wiegand controllers, to function as
a Wiegand controller itself, or to function as a stand-alone device.
• Robust, weatherproof (IP66), and vandal-proof fingerprint code lock
• Capacitive fingerprint sensor, touch keypad
• EM RFID (125 kHz) and MiFare (13,56 MHz) RFID access
• Numerical code access with 4 to 6 digits, backlit input field with automatic shutdown
after 20 s
• For up to 1000 accesses
(100 fingerprints + 888 RFID cards/PINs + 2 panic codes + 10 visitors)
• Programmable relay switch output, potential-free
• 26/44-bit Wiegand interface, MiFare: 56/58-bit in-/output,
access data administration in Wiegand controller
• Stand-alone operation or interlock operation for 2 doors possible
• Latch mode (self-sustaining operation to keep the door open) available
• Door contact monitoring
• Door opener button input (exit button) for door opener control from the inside
• Fail secure lock or fail safe lock operation
• Access via fingerprint, RFID, numerical code, or combination of different types of
access possible
• Sabotage sensor against disassembly/manipulation
• Multi-colour status display
• Internal signal transmitter and external signal output
2. Proper Use, Scope of Supply
The BioAccess PRO is intended for use as general access control device. It is admitted
for exterior use (IP66). We assume no liability for consequential damages resulting from
non-observance of these rules for use as well as this user manual, warranty claims lapse
as well. This also applies to modifications and changes.
Scope of Supply:
• Fingerprint code lock BioAccess PRO
• Protective diode IN4004
• 2x wall plugs and mounting screws (4x 25 mm)
• Mounting key
• User manual
• RFID master card
3. Operating, Service, and Safety Instructions
Warning
Is used to mark safety instructions or to draw attention to
special dangers and risks.
Notice
Is used to mark additional information or important notices.
• For safety and approval reasons (CE), any unauthorised modifications and/or changes of
the product are not allowed.
• Do not expose the device to an influence of humidity exceeding the IP66 conditions,
vibrations, constant heat, extreme cold, strong electromagnetic fields, and mechanical
stress.
• Observe all notices in the user manual concerning the connection of voltages. Wrong or
polarity-reversed voltages will destroy the device.
• Do not leave packaging material lying around, plastic foils/bags, polystyrene parts, etc.
can become a dangerous toy for children.
• If the device has been damaged, put it out of operation and contact our service.
User Manual
In case of property or personal damage caused by improper handling or non-obser-
vance of the safety instructions and the user manual, we assume no liability. In such
cases, any warranty claims lapse! We assume no liability for consequential damages.
Do not open the device, do not attempt to repair the device, do not perform any mo-
difications or changes – this will lead to the loss of any warranty claims. We assume
no liability for consequential damages.

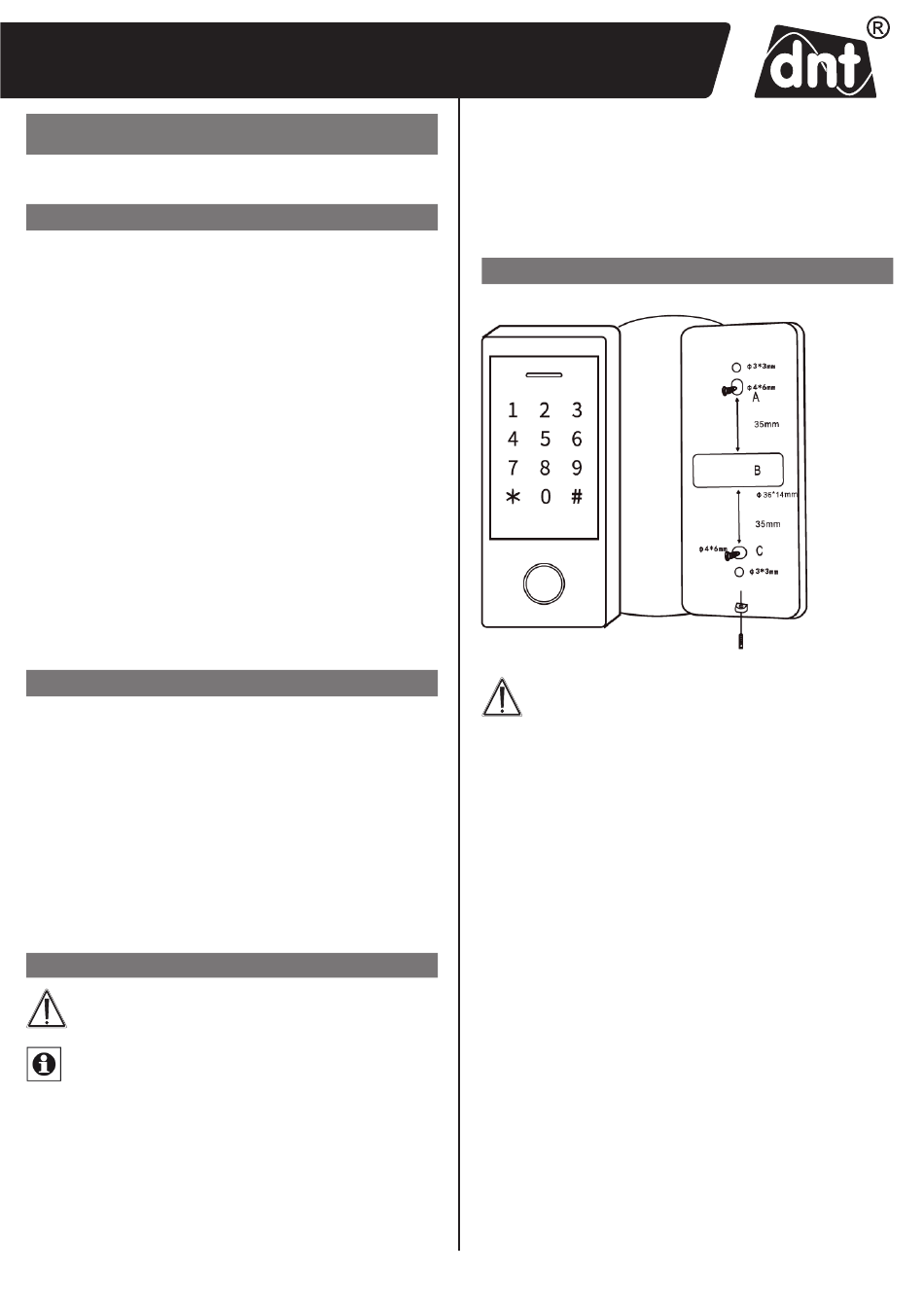

4. Installation/Assembly

When choosing the installation site, make sure that the mounting plate
lies tight and flat on its supporting surface while making contact with all
four corners. Otherwise, acts of sabotage can be facilitated, and faulty
activations of the sabotage alarm due to unwanted incidence of light into
the device are possible.
• Loosen the locking screw at the bottom of the enclosure with the mounting key and
remove the device from the mounting plate.
• Mark the drill holes on the site of installation (wall) by means of the holes in the
mounting plate or the illustration above and, after checking for electrical lines or pipes
within the wall, drill the mounting holes or the cable bushing. The 3 mm holes are
intended to be an additional safeguard for the possible installation on, for example, a
metal plate by means of threaded bolts. In case of non-use, they should be sealed by
means of a sealant.
• Run the connecting cable through the wall and screw the mounting plate to the wall.
• Place the device onto the mounting plate (first insert it at the top, then tilt it down
towards the mounting plate) and secure it with the locking screw.
Pin Assignment
Wire Colour Function Remarks
red UB operating voltage, 12–28 V
black UB operating voltage, 12–28 V
pink GND ground line, see notes in the text
blue relay, NO relay contact, open against COM in idle state
purple relay, COM relay contact, centre contact
orange relay, NC relay contact, closed against COM in idle state
yellow OPEN input for door opener button in the building
green Data 0 Wiegand interface, line Data 0
white Data 1 Wiegand interface, line Data 1
grey alarm output alarm output for signal transmitter, switched against minus
brown door contact input for door contact monitoring, NC
Mounting plate
Locking screw
, DC = plus
AC/DC
, DC = minus
AC/DC
