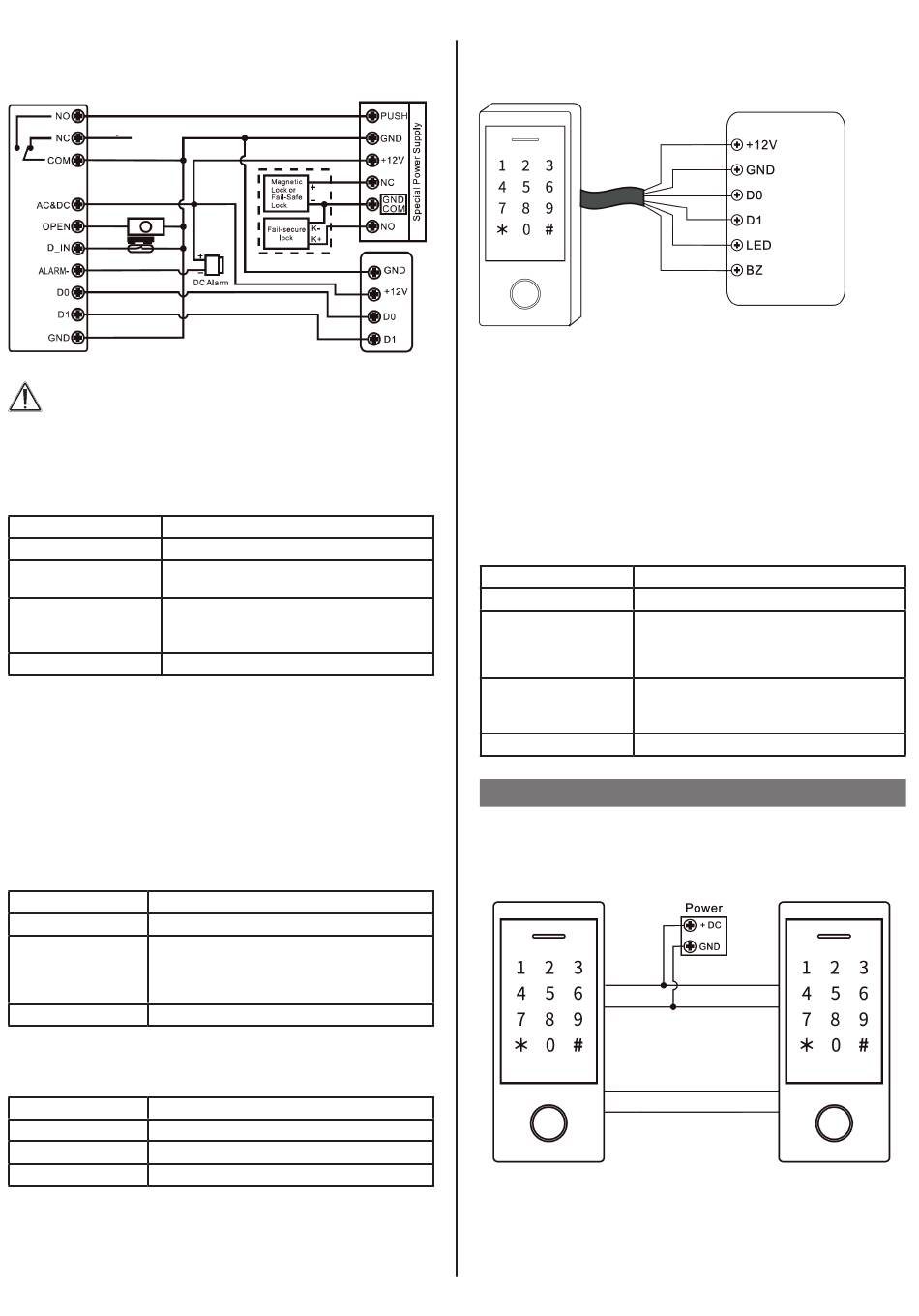

Connection to an External Access Device (Reader) with Wiegand Interface
The device can interact with another reader with Wiegand interface. For this purpose, the
device has to be set into operating mode 77 (see chapter 5.3.).
blau
orange
purple
red inside
calliper
yellow
brown
door contact
grey
green
white
pink
Also in this case, it is mandatory to connect the protective diode
to the door opener as shown in chapter 4 (wiring instructions)!
For the connection between fingerprint code lock and external reader, the same Wiegand
format has to be used for both devices.
Wiegand format:
Function Operation/Programming
Initiate programming * - master code - # (default master code: 123456)
Adjust Wiegand format 8 - (EM: 26...44; MiFare: 26 ...44, 56, 58) - #
(default setting: 26 bit)
Disable parity bit 80 - # (for Wiegand reader with 32-, 40-, or 56-bit output)
Activate parity bit 81 - # (default setting)
Finish programming *
Programming
The basic programming corresponds to the stand-alone programming. The discrepancies
are summarised in the following:
When connecting an EM/MiFare reader, users can be registered or deleted in both readers.
When connecting an HID card reader, users can only be registered or deleted in the external
device.
Example for the embedding of a fingerprint reader:
Step 1: Read the fingerprint into the external device.
Step 2: Read the same fingerprint into the DT access device.
Function Operation/Programming
Initiate programming * - master code - # (default master code: 123456)
Version 1 1 - read fingerprint into external device - #
or (automatic ID allocation)
Version 2 1 - (user ID) - # read fingerprint into external device - #
(use allocated ID)
Finish programming *
Example for the embedding of a numerical code reader:
The reader has to support the 4-, 8-, or 10-bit output format.
Function Operation/Programming
Initiate programming * - master code - # (default master code: 123456)
PIN input format 8 (4/8/10) - # (default setting: 4 bit)
Finish programming *
In order to add PINs, they can be trained in all included devices. The deletion of PINs also
has to be carried out in all included devices.
internal station
signal transmitter
external reader
Operation as a Wiegand Reader with a Wiegand Controller
The device can function as an external Wiegand reader in combination with a Wiegand con-
troller. For this purpose, the device has to be set into operating mode 78 (see chapter 5.3.).
Please note:
• In the case of this connection, numerous settings of the device become invalid since they
are carried out from the external Wiegand controller.
• The brown wire (D_IN) leads to access signalling through green flashing of the operating
display (low-active).
• The yellow wire (OPEN) leads to access signalling through the internal signal transmitter
(low-active).
Adjust Wiegand Formats
• For the access device, you should use the same Wiegand output format as the input
format you are using in the case of the Wiegand controller.
• Disable parity bit in the case of Wiegand controllers with 32-/40-/56-bit input format
Function Bedienung/Programmierung
Initiate programming * - master code - # (default master code: 123456)
Wiegand output format 8 - (EM: 26 ... 44; MiFare: 26 ... 44, 56, 58) - #
(default setting EM: 26 bit; MiFare: 34)
PIN output format 8 (4/8/10) - # (default setting 4 bit)
Disable parity bit 80 - #
Activate parity bit 81 - # (default setting)
Finish programming *

8. Extended Functions

Passing on of User Data
User data can be exchanged between two devices of the same type. This facilitates the
programming of multiple accesses by the same users. The exchange is only possible for
RFID card or PIN accesses.
red
pink
green
white
Please note:
• The exchange is only possible between devices of the same type and the same series.
• The master code has to be the same for both devices.
• The data transfer is only possible from the device which is set as master.
• After the data transfer, the receiving device is blocked for programming.
• The transfer time for 900 users can take up to 30 s.
red
pink
green
white
brown
yellow
Wiegand controller
