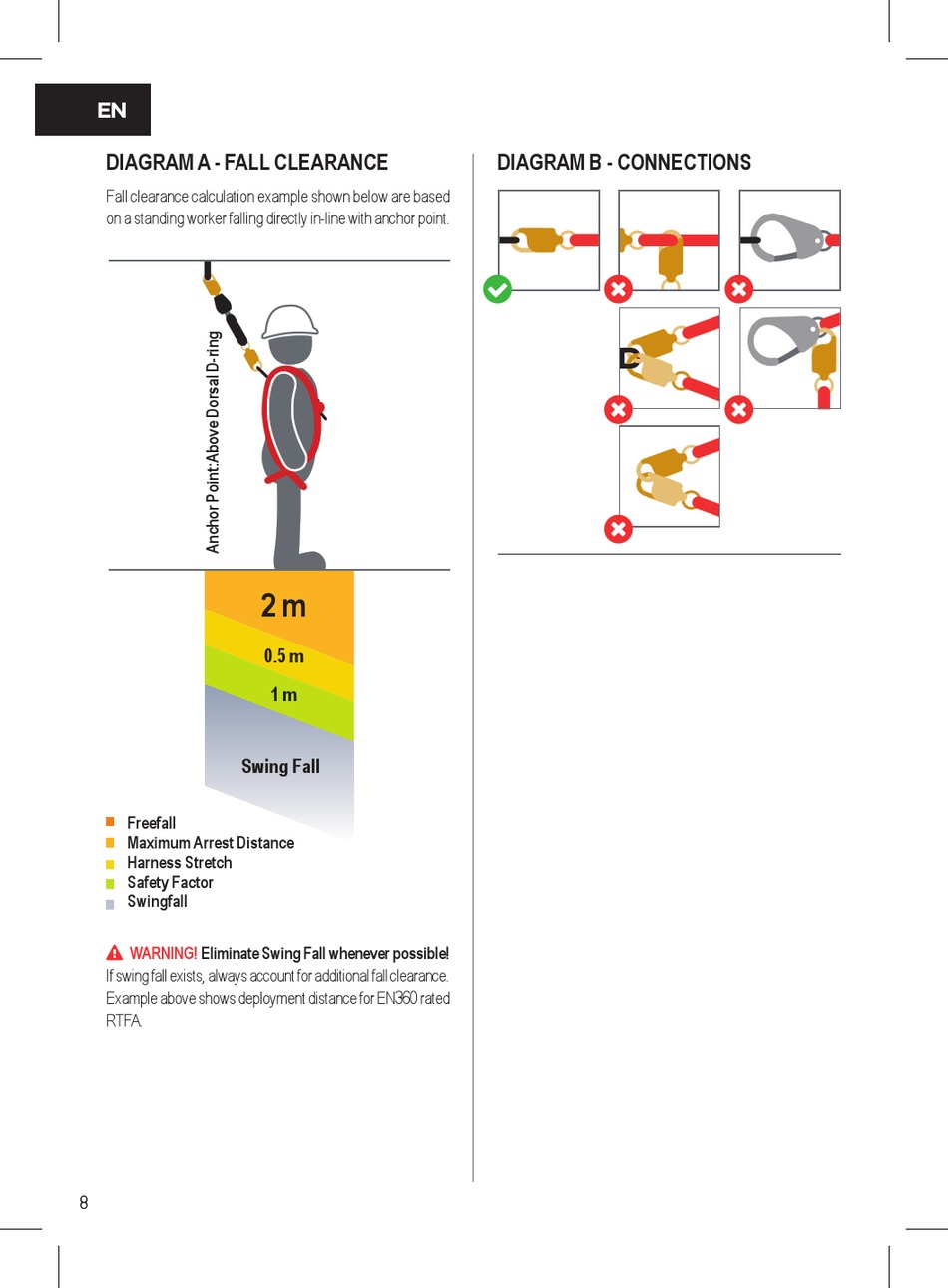

DIAGRAM A - FALL CLEARANCE
Fall clearance calculation example shown below are based
on a standing worker falling directly in-line with anchor point.
Swing Fall
Freefall
Maximum Arrest Distance
Harness Stretch
Safety Factor
Swingfall
 WARNING! Eliminate Swing Fall whenever possible!
If swing fall exists, always account for additional fall clearance.
Example above shows deployment distance for EN360 rated
RTFA.
8 8
2 m
0.5 m
1 m
DIAGRAM B - CONNECTIONS
 




