Cables for D+H smoke an heat vent systems
When selecting and installing the cables, the
regional electrical installation regulations
concerning wiring systems and the necessary
safety equipment, or guidelines on integrity
maintenance of electric lines are observed (e.g.
MLAR).
Notice:
No type designation is given for these cables,
because of a large variety on the market.
Please consult your D+H partner.

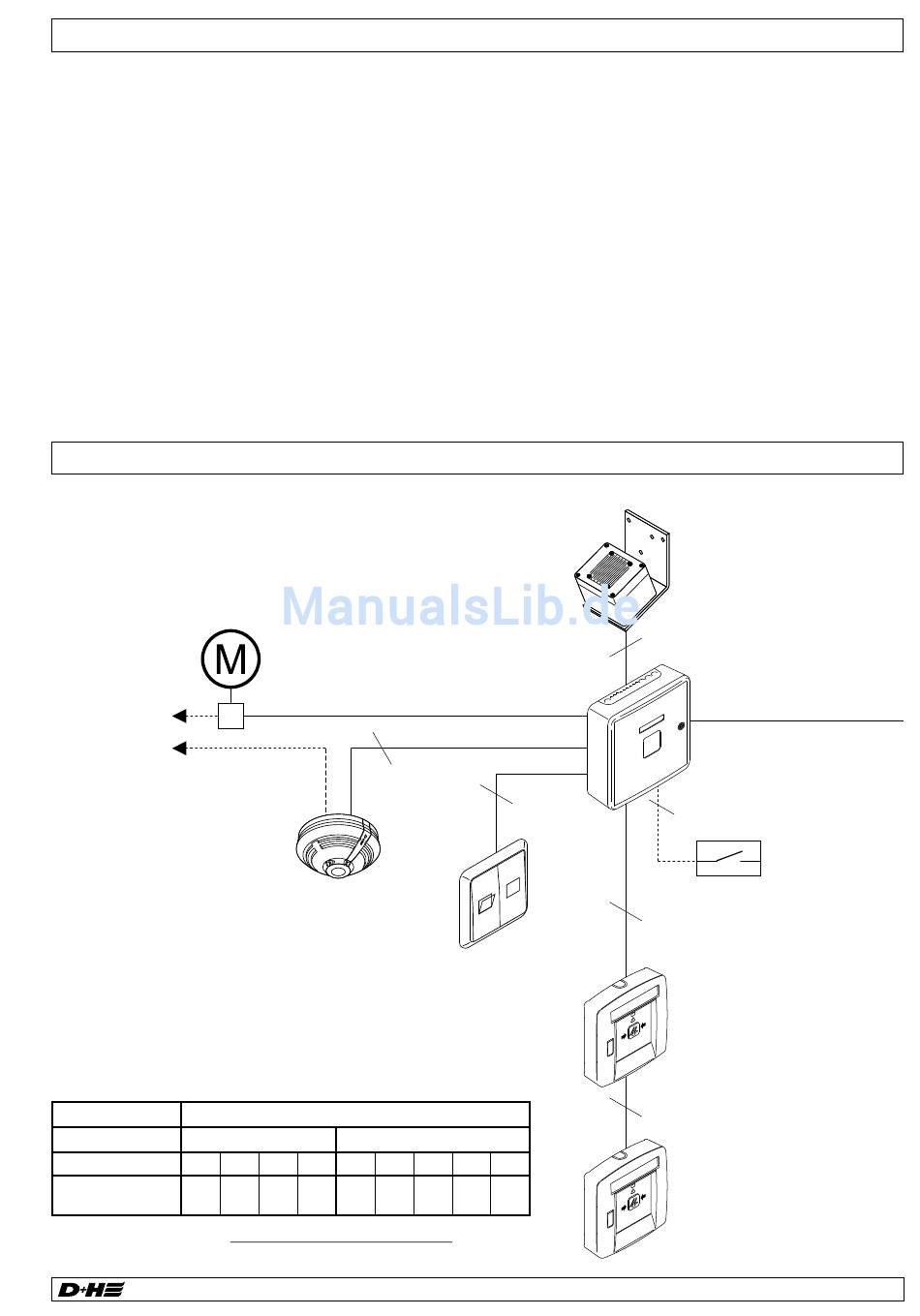

Wiring plan (Paragon)
System voltage 24 V!
Do not run cables with together power lines!
In case of a cable with ground wire (green /
yellow) this must not be used!
Cable and terminal boxes have to be labeled.
to further ones
Line lenghts and cross sections
Type
RZN 4402 - K
0,5
Total current
240
3 x 1,5 mm²
400
3 x 2,5 mm²
Cross section (mm²) =
99.823.80 3.2/01/15
Drive at smoke
vent opening
see line lenghts and cross sections
2x 0,8 Ø
Fire detector
SD-O 371 or FD-T 271
RZN 4404 - K
1 1,5 2 2,5 3
120 80 60 48 40
200 130 100 80 65
Cable lenght (m) x Total current
80
Group cable (control panel - drive)
At least three wire design:
- 2 wires for the supply of the drive
- 1 wire for line monitoring, on which also the
SHEV high speed (HS) signal is transmitted to the
drive. If group DIP switch 8 is ON, the group will in
case of a fault automatically triggered and opens.
Line cable (control panel - detector)
The cables are monitored for short circuit and for
interruption. If line DIP switch 7 is ON, the group
will in case of a fault automatically triggered and
opens.
3x 0,8 Ø
4x 0,8 Ø
Vent button
approx. 1,2 m
above upper edge
firm flooring
3,5 4
34 30
m
55 50
m
English
Rain detector
SHEV control panel
230 V, 50 Hz
Seperate electric circuit.
Mark fuse.
2x 0,8 Ø
External control
6x 0,8 Ø (RT 45)
10x 0,8 Ø (RT 45-LT)
O K Smoke vent button
approx. 1,5 m above
upper edge firm flooring
6x 0,8 Ø (RT 45)
10x 0,8 Ø (RT 45-LT)
O K
RZN 4402-K / RZN 4404-K
