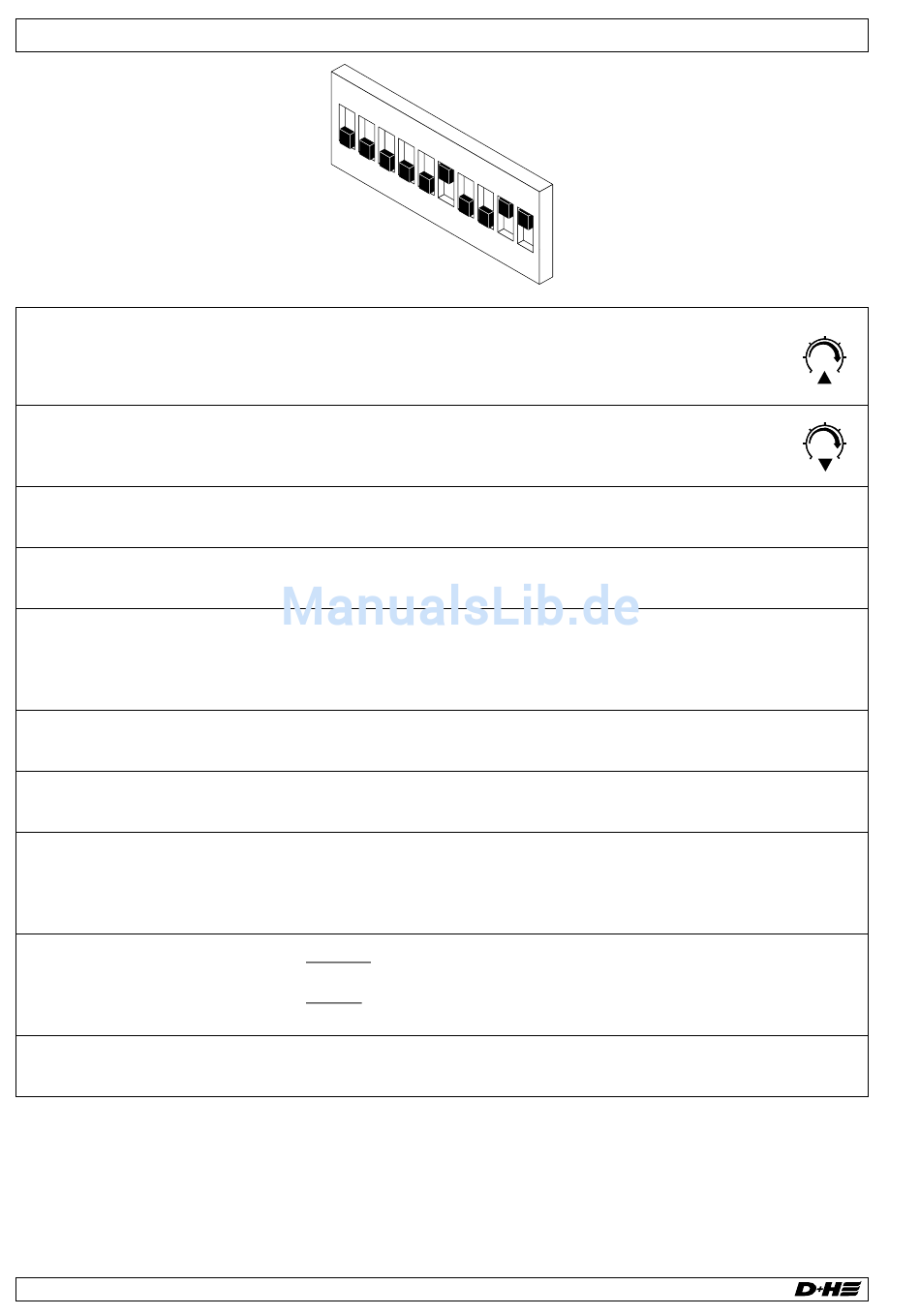

DIP switch settings

1 = ON OPEN-running time limitation in ventilation operation (Only if DIP switch 6 = ON).
Using a potentiometer, running time in OPEN direction can be limited.
If the vent button is actuated in OPEN direction, the drive will run open as long as
the running time is set.
2 = ON Ventilation time limitation (Only if DIP switch 5 = ON).
Using a potentiometer, ventilation tim can be set.
Drives will automatically close again, after the adjusted time has expired.
3 = ON OPEN-retriggering (Only if DIP switch 1 = ON)
The OPEN-running time limitation can be retriggered again.
4 = ON Power failure "CLOSE" (Only if DIP switch 5 = ON).
In case of power failure the drives will close.
5 = ON Drives CLOSE up to final position by single pressing on vent button
5 = OFF Drives are closing only so long as the vent button or the button "close SHEV" in the
smoke vent button is pressed. OPEN-display on vent button is no longer possible then!
The function power failure-CLOSE will be ineffective (see DIP switch 4).
6 = ON Drives OPEN up to final position by single pressing on vent button.
6 = OFF Drives are opening only so long as the vent button is pressed.
7 = ON In case of a line fault (e.g. at an interrupted detector line or short circuit) the control panel
will be switched on alarm, that means the smoke vent opens.
8 = ON In case of a group fault (e.g. in case of an interrupted monitoring line) the control panel will
be switched on alarm, that means the smoke vent opens.
DIP switch must be on ON in conjunction with a ground in thermal maximal detector (e.g.
THE4).
9 = ON Smoke detector alarm can not be reset by single pressing on the button "close SHEV" in
the smoke vent button.
9 = OFF Smoke detector alarm will be reset by pressing on the button "close SHEV" in the smoke
vent button.
10 = ON SHEV retriggering on. The smoke vent is triggered for a duration of 30 minutes in intervals
of 2 minutes according to VdS 2581.
24/36
RZN 4402-K / RZN 4404-K
O N
1
2
3
Delivery condition S1
4
5
6
7
8
9 1
0
English
20
2
15
2
99.823.80 3.2/01/15
40
sec
60
30
min
45
