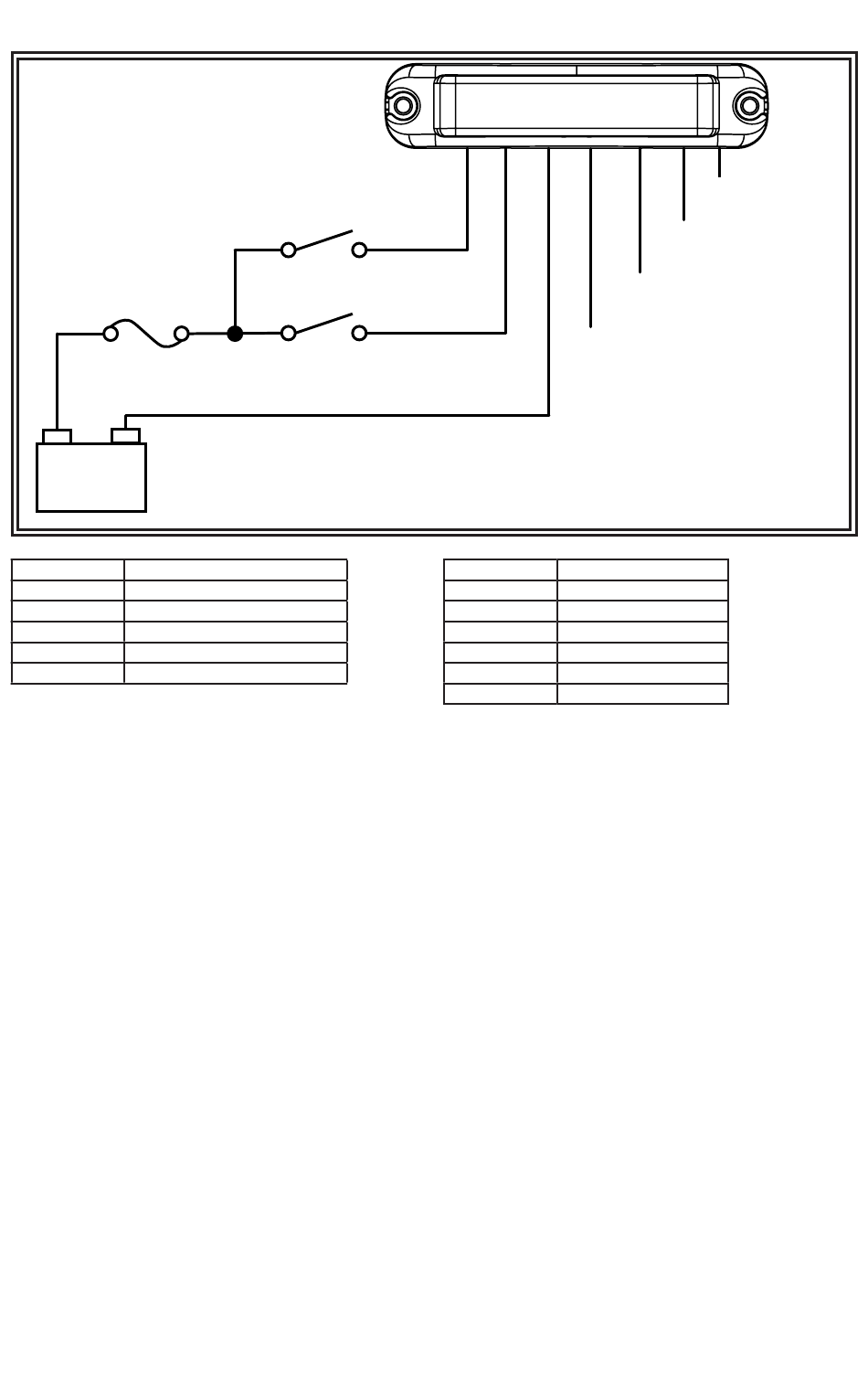

Wiring Instructions

IN-LINE FUSE
IN-LINE FUSE
(USER SUPPLIED)
(USER SUPPLIED)
+ -
CD3794XX:
Red Wire Positive, Colors 1 & 3
White Wire
Positive, Colors 2 & 4
Red/White Wire Positive, Colors (1 & 3) and (2 & 4)
Black Wire Negative
Blue Wire Pattern Select to Negative
Yellow Wire Synchronized Function
Apply Blue to Black wire:
0-1 seconds Next Pattern
1-3 seconds Previous Pattern
3-5 seconds Factory Default Pattern
5+ seconds Last Pattern
Apply Blue to Red (Positive) wire: DIM. (future)
Synchronization:
The directional is capable of syncing with other compatible CODE 3 products by following the steps below:
Step 1. Set the desired flash pattern on each unit individually. It is also strongly recommended that the same rate and style of flash
pattern be used on all synced units to produce the most effective warning pattern. Note: To operate simultaneously, each unit must
be set to the same phase (A + A or B + B); to operate alternately, units must be set to have the opposite phase (A + B or B + A).
Step 2. Connect the yellow sync wires together and check that the units are flashing in a synchronized manner as expected. If a
pattern on one unit appears incorrect, the blue pattern select wire can be used to cycle forward or backward on that individual unit until
the correct pattern is selected. Note: This will on change the pattern in the one unit and will not affect the other units connected
to the yellow sync wire.
WHITE - GROUP 2
WHITE - SEE CHART BELOW
TO POSITIVE
SWITCH
SWITCH
(USER SUPPLIED)
(USER SUPPLIED)
RED - GROUP 1 TO
POSITIVE
RED - SEE CHART BELOW
SWITCH
SWITCH
(USER SUPPLIED)
(USER SUPPLIED)
BLACK - SEE CHART BELOW
BLACK - GROUND
BLUE - PATTERN
BLUE - SEE CHART BELOW
SELECT TO GROUND
CD3794XXX:
Red Wire Group 1 to Positive
White Wire
Group 2 to Positive
Red/White Wire Group 3 to Positive
Black Wire Negative
Blue Wire Pattern Select to Negative
Yellow Wire Synchronized Function
Green Wire
Mode Select to Negative
Apply Green to Black wire:
MODE 1 Color 1
MODE 2 Color 2
MODE 3 Color 3
MODE 4 Color 1 & 2
MODE 5 Color 1 & 3
MODE 6 Color 2 & 3
MODE 7 Color 1 & 2 & 3
(CD3794XXX ONLY)
GREEN - SEE CHART GREEN - MODE
BELOW
SELECT TO GROUND
RED/WHITE - GROUP 3
RED/WHITE - SEE CHART
TO POSITIVE BELOW
YELLOW -
YELLOW - SEE CHART
SYNCHRONIZE
BELOW
