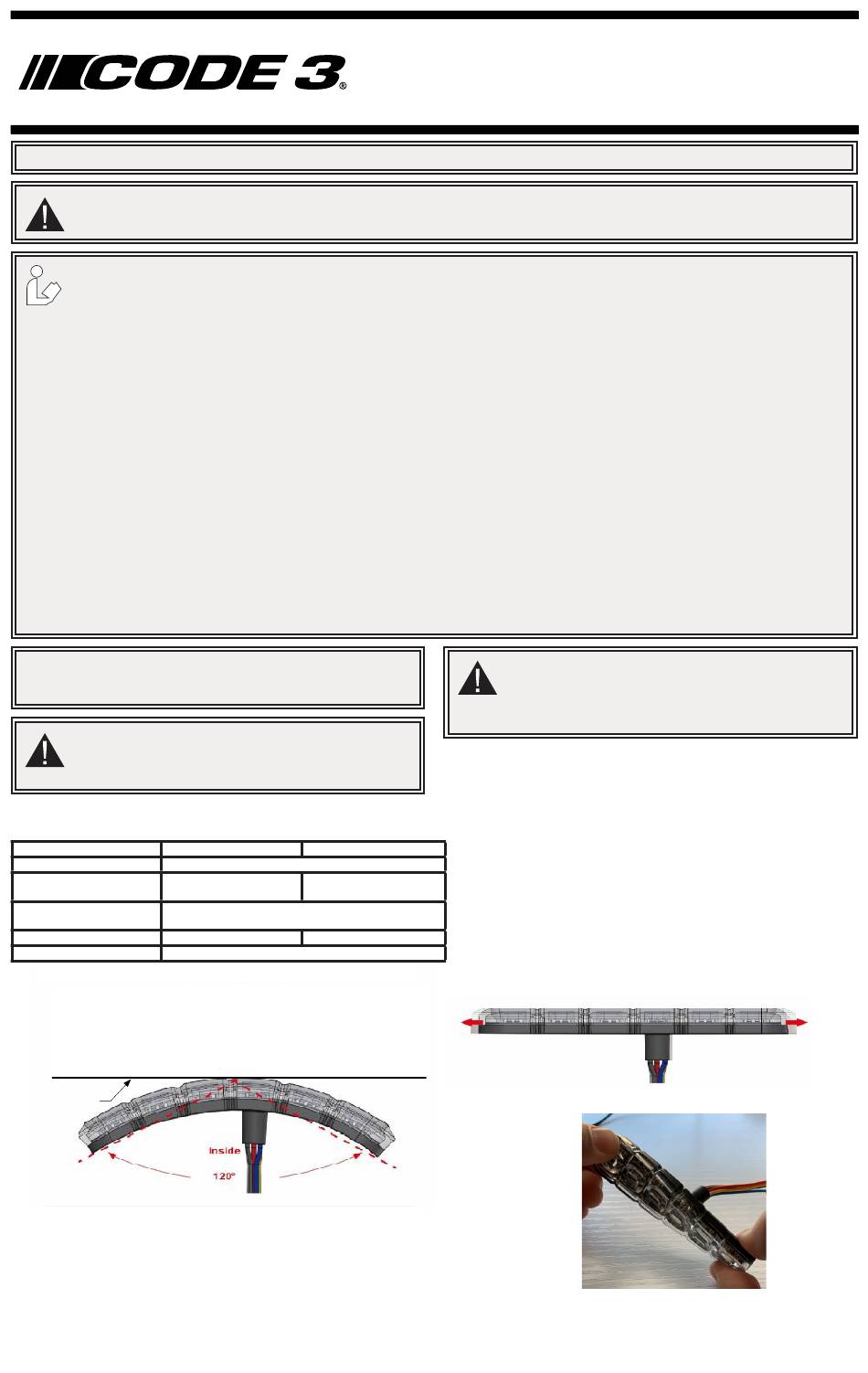

Code 3 CD3794 Installations- Und Bedienungsanleitung

IMPORTANT! Read all instructions before installing and using. Installer: This manual must be delivered to the end user.
WARNING!
Failure to install or use this product according to manufacturer's recommendations may result in property damage, serious injury, and/
or death to those you are seeking to protect!
Do not install and/or operate this safety product unless you have read and understood the safety information
contained in this manual.
1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to
ensure the safety of emergency personnel and the public.
2. Emergency warning devices often require high electrical voltages and/or currents. Exercise caution when working with live electrical
connections.
3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing,
which can cause personal injury and/or severe vehicle damage, including fire.
4. Proper placement and installation is vital to the performance of this warning device. Install this product so that output performance of
the system is maximized and the controls are placed within convenient reach of the operator so that they can operate the system without
losing eye contact with the roadway.
5. Do not install this product or route any wires in the deployment area of an air bag. Equipment mounted or located in an air bag
deployment area may reduce the effectiveness of the air bag or become a projectile that could cause serious personal injury or death.
Refer to the vehicle owner's manual for the air bag deployment area. It is the responsibility of the user/operator to determine a suitable
mounting location ensuring the safety of all passengers inside the vehicle particularly avoiding areas of potential head impact.
6. It is the responsibility of the vehicle operator to ensure daily that all features of this product work correctly. In use, the vehicle operator
should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors),
people, vehicles or other obstructions.
7. The use of this or any other warning device does not ensure all drivers can or will observe or react to an emergency warning signal.
Never take the right-of-way for granted. It is the vehicle operator's responsibility to be sure they can proceed safely before entering an
intersection, drive against traffic, respond at a high rate of speed, or walk on or around traffic lanes.
8. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws
regarding emergency warning devices. Therefore, the user should check all applicable city, state, and federal laws and regulations. The
manufacturer assumes no liability for any loss resulting from the use of this warning device.
Important! This unit is a safety device and it must be connected
to its own separate, fused power point to assure its continued
operation should any other electrical accessory fail.
CAUTION!
When drilling into any vehicle surface, make sure the area is
free from any electrical wires, fuel lines, vehicle upholstery,
etc. that could be damaged.
Specifications
Input Voltage
Current
Physical H x W x L
Ship Weight
Operating Temperature:
Standard test
External bending is about 120 degrees max.
Max 30 degree
angle from
center
CD3794XX CD3794XXX
12-24VDC
0.8A Max @ 12VDC 0.6A Max @ 12VDC
0.5A Max @ 24VDC 0.3A Max @ 24VDC
3.9 in x 0.9 in x 0.4 in
9.9 cm x 2.3 cm x 1 cm
0.1 lb (0.05 Kg) 0.2 lb (0.10 Kg)
-40 to 65ºC
Installation and Operation Instructions
CD3794 FLEXIBLE DIRECTIONAL
CAUTION!
• light cannot be twisted or pulled
• do not bend in the lens direction
• Mounts to a surface curvature with a minimum radius of
3 inches
No Pulling
Can not pull the wire because the PCB and
components will be damaged.
No Twisting
The product can't be twisted because the PCB and
components will be damaged.
Page 1 of 8
