Installation and Mounting

*For extra adhesion, use 3M Tape Primer.*For product & application information, go to: https://multimedia.3m.com/mws/media/65952O/3mtm-tape-
primer-94.pdf
VHB
VHB
ADHESIVE ADHESIVE
LIGHTHEAD
LIGHTHEAD
LIGHTHEAD
LIGHTHEAD
BEZEL
BEZEL
SCREWS
SCREWS
STUD MOUNT
STUD MOUNT
BRACKET BRACKET
VHB ADHESIVE
VHB ADHESIVE
LIGHTHEAD LIGHTHEAD

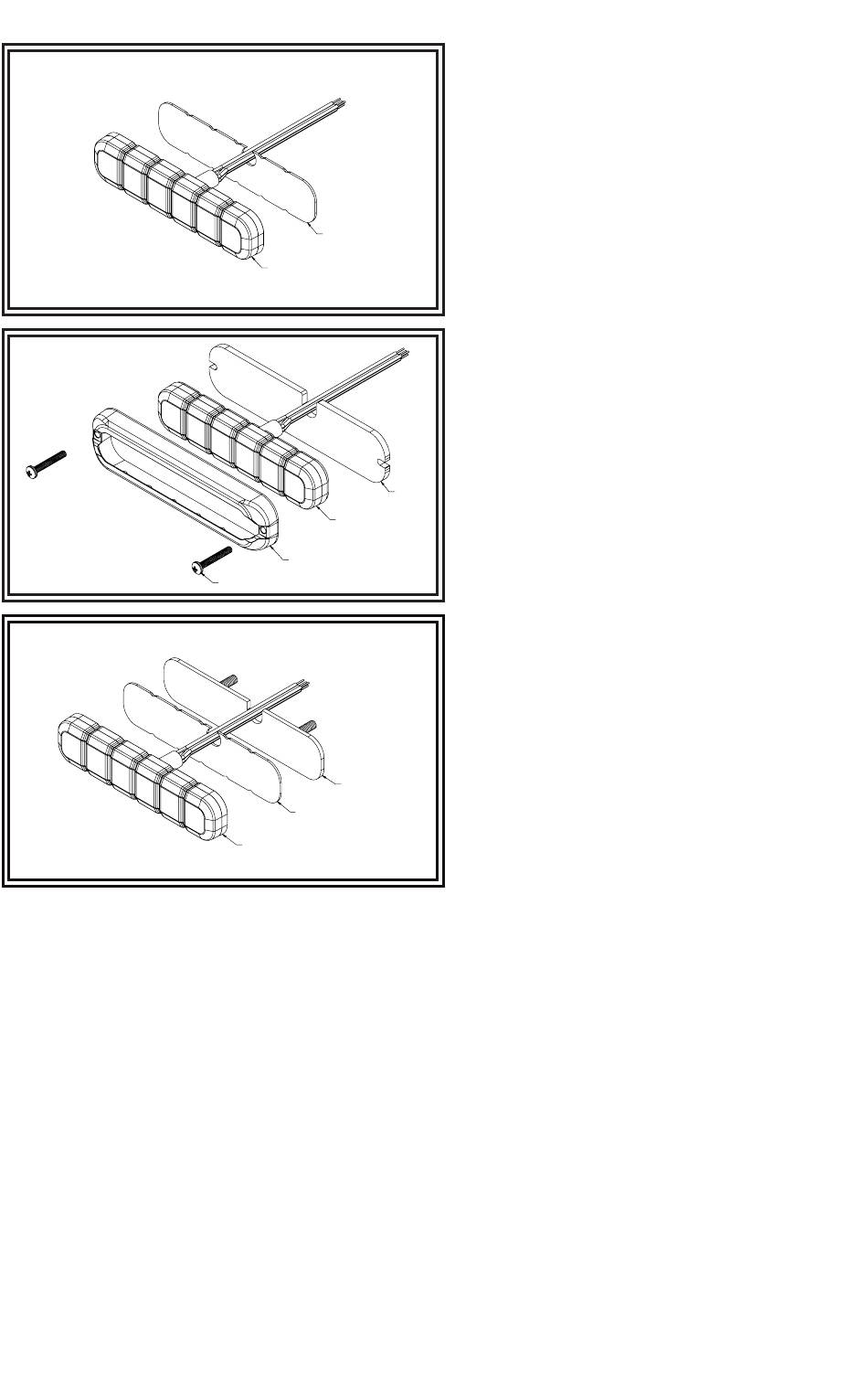

Flex/Curved Surface Mounting:
1. Mark hole location using gasket as a template and drill hole for wire exit
using 11/32 in. drill bit.
2. Wipe surface clean with alcohol wipe. Wait until dry.
3. Mount light using VHB adhesive. Peel adhesive backing and apply
pressure to adhere to surface for 20 seconds. It is recommended to allow
24 hours for adhesive to fully adhere before powering on light.
* Do not use hardware, gasket or bezel when mounting on curved
surface.
* Max surface curvature 120°.
Surface Mounting with Bezel:
1. Mark wire and screw locations using gasket as a template. Drill wire exit
hole using 11/32 in. drill bit. Pre-drill screw holes using 3/64 in. drill bit.
2. Insert screws through bezel and gasket as shown to mount lighthead.
GASKET
GASKET
Surface Mounting with Bracket:
1. Mark wire location using gasket as a template. Drill wire exit hole using
11/32 in. drill bit.
2. Peel VHB backing and apply light to surface, aligning wire exit. Apply
pressure for 20 seconds. Insert threads into surface and tighten nuts to
mount lighthead. It is recommended to allow 24 hours for adhesive to
fully adhere before powering on light.
Page 2 of 8
