Maintenance; Bottom View - Segway Navimow H500E Wichtige Informationen

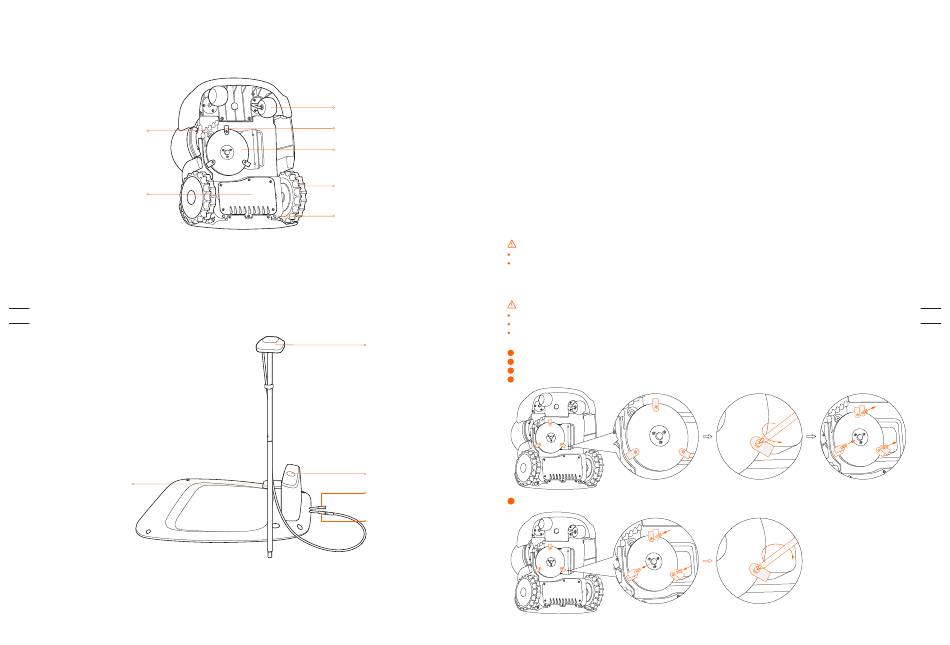

Bottom view

Blade fender
Battery compartment
Drainage outlet: If the mower falls into water, take it out immediately and put the mower right side up to drain it. Never submerge
the mower in water, otherwise, the components may be damaged and the Limited Warranty will be voided.
Charging station and the GNSS antenna
7
EN
Contact strip
NOTE: If the GNSS antenna is blocked, which results in poor signal and inaccurate positioning, please purchase the antenna
extension kit and install as instructed.

3 Maintenance

To achieve better mowing results and increase the service life, be sure to keep the mower clean and the blades in good
condition. Inspection and maintenance should be carried out by an adult every week. Any damaged or worn parts should be
replaced.
when servicing the mower.
Front wheel
1) Cleaning
Use a soft brush or cloth to clean the exterior of the mower thoroughly. DO NOT clean with alcohol, gasoline, acetone, or other
corrosive/volatile solvents. These substances may damage the appearance and internal structure of your mower.
Blade
For proper docking, periodically inspect and clean the charging station from debris and mud. Make sure all connecting parts of the
charging station, the extension cable, and the power supply are not blocked.
Blade disc
A. Chassis and blade disc
If the chassis and blade disc is dirty, use a brush or a water hose to clean. DO NOT use a high-pressure washer. At the same
time, make sure that the blade disc rotates freely and the blades can pivot freely.
CAUTION: High pressure water can leak into the sealings and damage electronic and mechanical parts.
Rear wheel/Hub motor
B. Wheels
Grass on the wheels can affect how the mower performs when climbing slopes. Remove mud or other items stuck in between
to ensure strong grip.
Drainage outlet
C. Rain sensor
Check once a week and make sure the rain sensor is not covered by mud, grass or other objects. You can either wash it clean or
clean with a soft brush.
WARNING
Before cleaning, make sure the mower is powered off.
When the mower is upside down, it must be powered off.
2) Replace Blades
If the mower is used on a regular basis, it is recommended to replace the blades and screws every 1–2 months to ensure safety and
better mowing results. Replace all three blades and their screws at the same time for a safe cutting system.
WARNING
Wear heavy gloves when you inspect or service the blade.
Only use the right type of screws and original blades as approved by Segway. Blade model: HA002E.
DO NOT reuse the screws. Doing so can cause serious injury.
GNSS antenna How to replace the blades:
Turn off the mower.
1
To avoid scratching, place the mower on a soft and clean surface in an upside-down position.
2
Use a cross-tip screwdriver to loosen the three screws.
3
Remove the screws and blades.
4
LED indicator
Power interface
Fasten the new blades and screws (Torque: 1 N·m). Make sure the blades can pivot freely.
5
Antenna interface
DO NOT perform maintenance when wearing open sandals or barefoot. Always wear long trousers and work shoes
8
