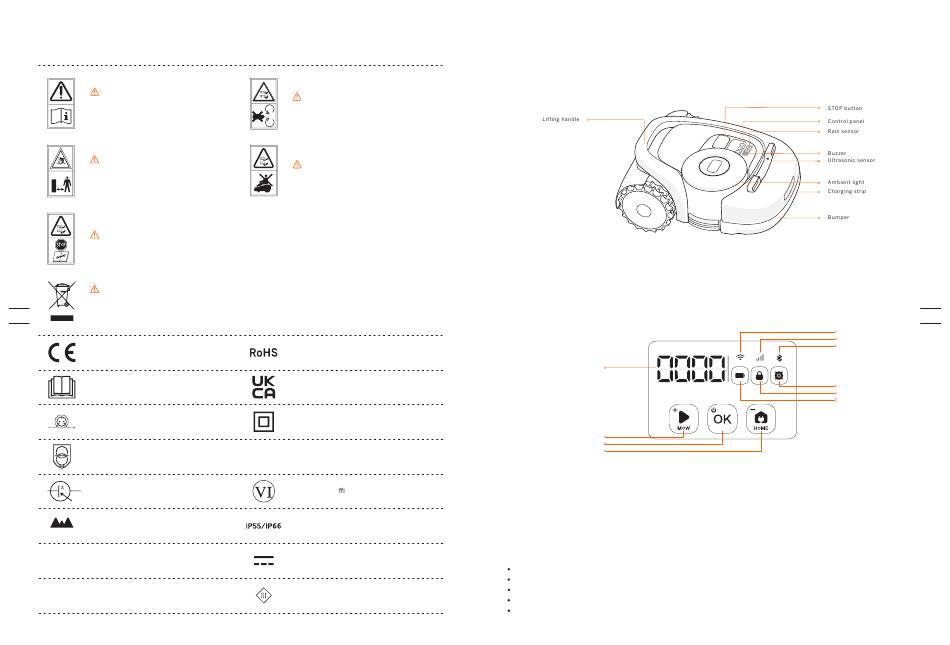

Symbols and Decals
Please study the symbols on the product and labels carefully and understand their meaning:
WARNING-Read instruction
manual before operating the
machine.
WARNING-Keep a safe
distance from the machine
when operating.
WARNING-Operate the disabling device before working on or lifting the machine*.
*Make sure the mower is locked by the PIN code before lifting or operating.
WARNING-It is not permitted to dispose of this product as normal household
waste. Ensure that the product is recycled in accordance with local legal
requirements.
5
EN
This product conforms to the applicable
EC Directives.
Before charging, read the instructions.
Polarity of the charging port
SMPS incorporating a short-circuit-proof safety isolating transformer (inherently or
non-inherently)
SMPS (Switch mode power supply unit)
The maximum altitude of use is 5000m
≤ 5000m
ta: 40℃
The maximum temperature of use is 40
~
Alternating current
WARNING-Do not touch
rotating blade.
WARNING-Do not ride on the
machine.
This product conforms to the regulations
of Restriction of Hazardous Substances.
This product conforms to the applicable
UK legislation.
Class II appliance
DoE Level VI e ciency
IP55/IP66
℃ Direct current
Class III appliance

2 Parts and Functions

Top view
Ambient light: When an abnormality occurs, the LED ring flashes red along with a ringing buzzer.
Ultrasonic sensor: Certain models are equipped with an Ultrasonic sensor. The sensor is also sold separately and can be installed
on all Navimow models. Consult your dealer for details.
Control panel
Dashboard display
MOW
OK
HOME
Battery level: The color indicates the battery level: 50%–100% solid green, 20%–49% solid yellow, 5%–19% solid red, ≤5% red
flashing. When the battery icon is red, the mower needs recharging.
Dashboard display: It shows the mowing percentage, PIN code, error code, etc.
PIN code: Before manually operating the mower, you must enter the PIN code. The default code is 0000, and can be changed via
the Navimow app (referred to as the app in this manual). Press MOW/HOME to increase/decrease the number and press OK to
confirm the code.
Basic operations
Power on: Press OK.
Power off: Press and hold OK for 4s, or turn off via the app. The mower cannot be turned off when it's in the charging station.
Start mowing: Press MOW and then OK.
Stop mower operation: Press STOP.
Mower returns to the charging station: Press HOME and then OK.
6
EN
Wi-Fi
Cellular data
Bluetooth
Blade indicator
PIN code lock status
Battery level
