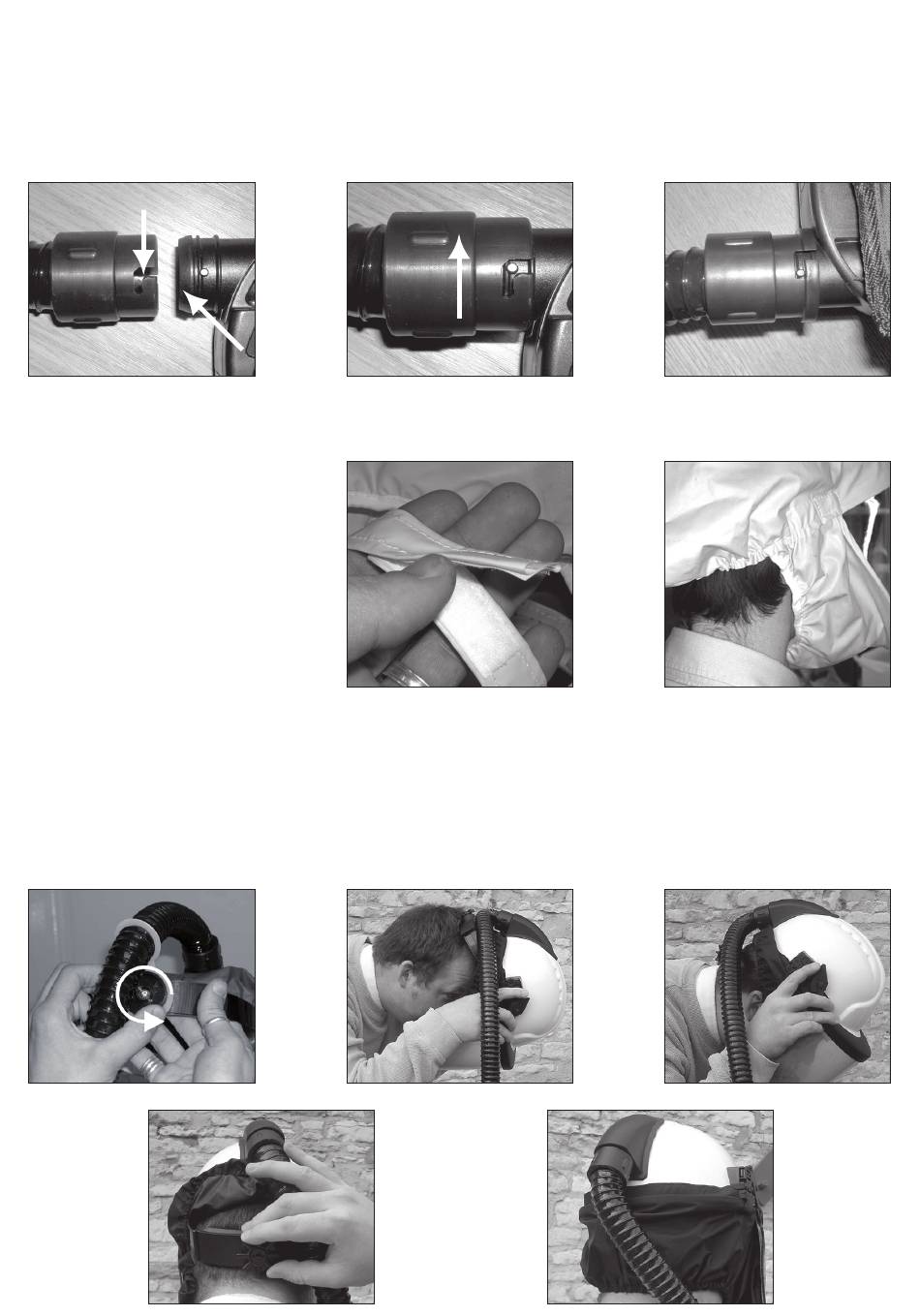

Attaching the Hose to the Blower Unit
Switch on the blower unit and allow it to stabilise, the warning buzzer will stop when the unit is stabilised. If the buzzer
fails to stop either the filter requires replacement or the battery needs recharging. Once the buzzer has stopped attach
the hose. Place the Bayonet connector (See Diagram 16) over the 'Chimney' of the Jetstream™, push down and twist
in an anti-clockwise direction (See Diagram 17.) until the locating pin clips into place. (See Diagram 18.)
Diagram 16:
BAYONET FITTING
BAYONET FITTING
BLOWER CHIMNEY
BLOWER CHIMNEY
NOTE: The hose is permanently attached to the head units and no attempt should be made to remove it.
Donning the Cape
Place the Head-Unit on the head and
adjust the headband until a comfortable
fit is achieved. (See Diagram 19). Feed a
finger underneath each side of the sealing
skirt and pull it into place around the neck,
ensuring that the rear edge of the cape
sits behind the ears. (See Diagram 20)
Donning the Mk 6/7 helmet
Open the internal harness out to it's maximum extension (see Diagram 21). Insert the chin into the skirt at the base of
the Visor and rotate the helmet down over the back of the head (see Diagram 22). Lift the rear of the skirt up over the
rear of the harness (see Diagram 23). Adjust the harness until a firm but comfortable fit is achieved (see Diagram 24).
Pull the rear of the skirt back down over the harness, the skirt will now be sealed all the way around the wearer's neck
(see Diagram 25).
Diagram 21:
Diagram 24:
Diagram 17:
TWIST
TWIST
Diagram 19:
Diagram 22:
Diagram 25:
Diagram 18:
Diagram 20:
Diagram 23:
