5.5

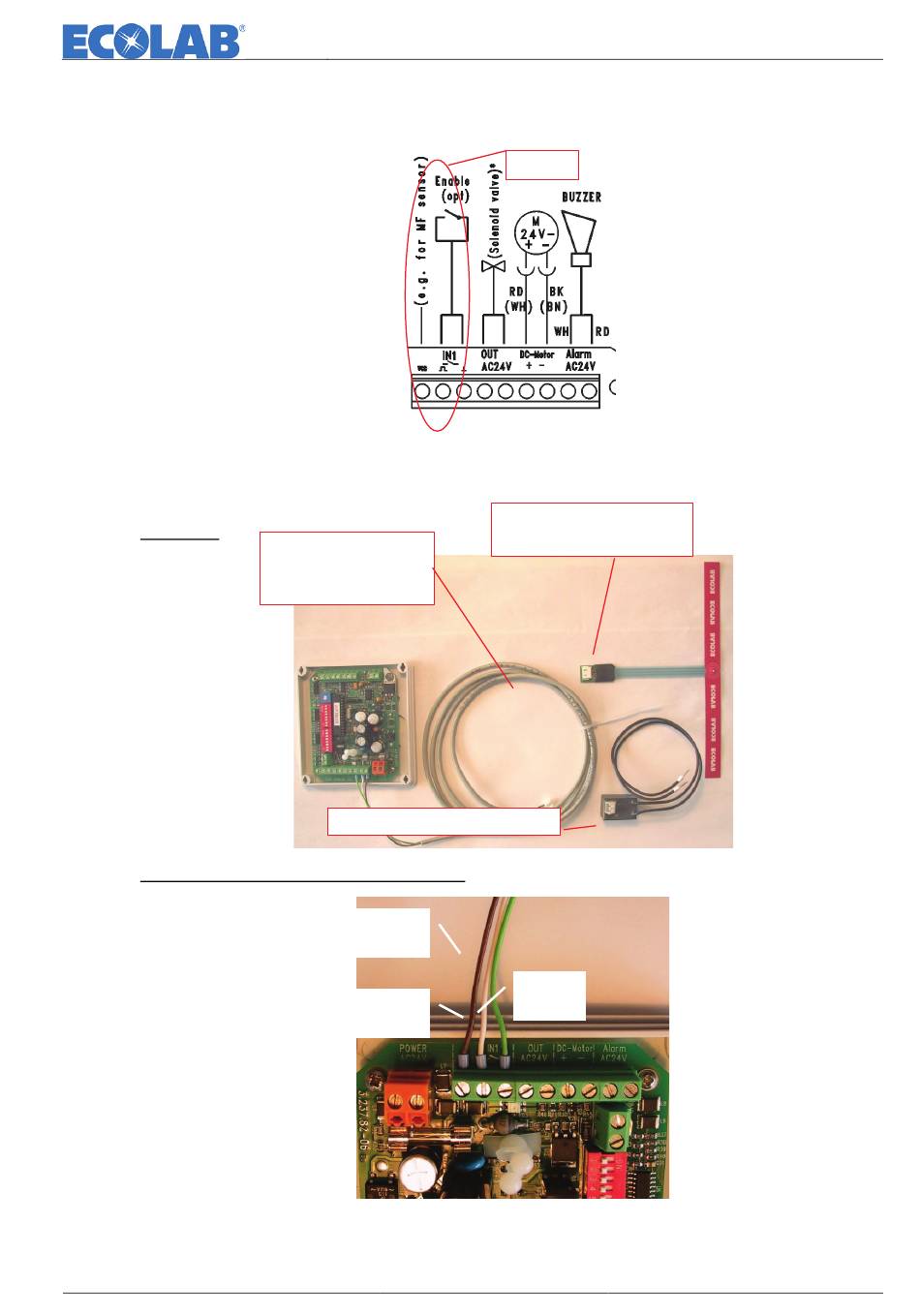

Possible input modules (connection at IN1)

1. Mechanical contact (contact closed = system activated)
fig. 5.2
IN1
2. Electrical enable module (part no: 273075)
or magnetic field sensor (part no: 273076)
Magnetic field sensor
Overview:
(273075)
Enable cable
fig. 5.3
(273055)
Electrical enable module
Connection enable cable 273055 to PCB:
fig. 5.4
BN
(brown)
GN
(green)
WH
(white)
