Titration: (Dip Switch "Time/Titration"); Enable Signals - Ecolab Ecodos-Pcb Betriebsanleitung

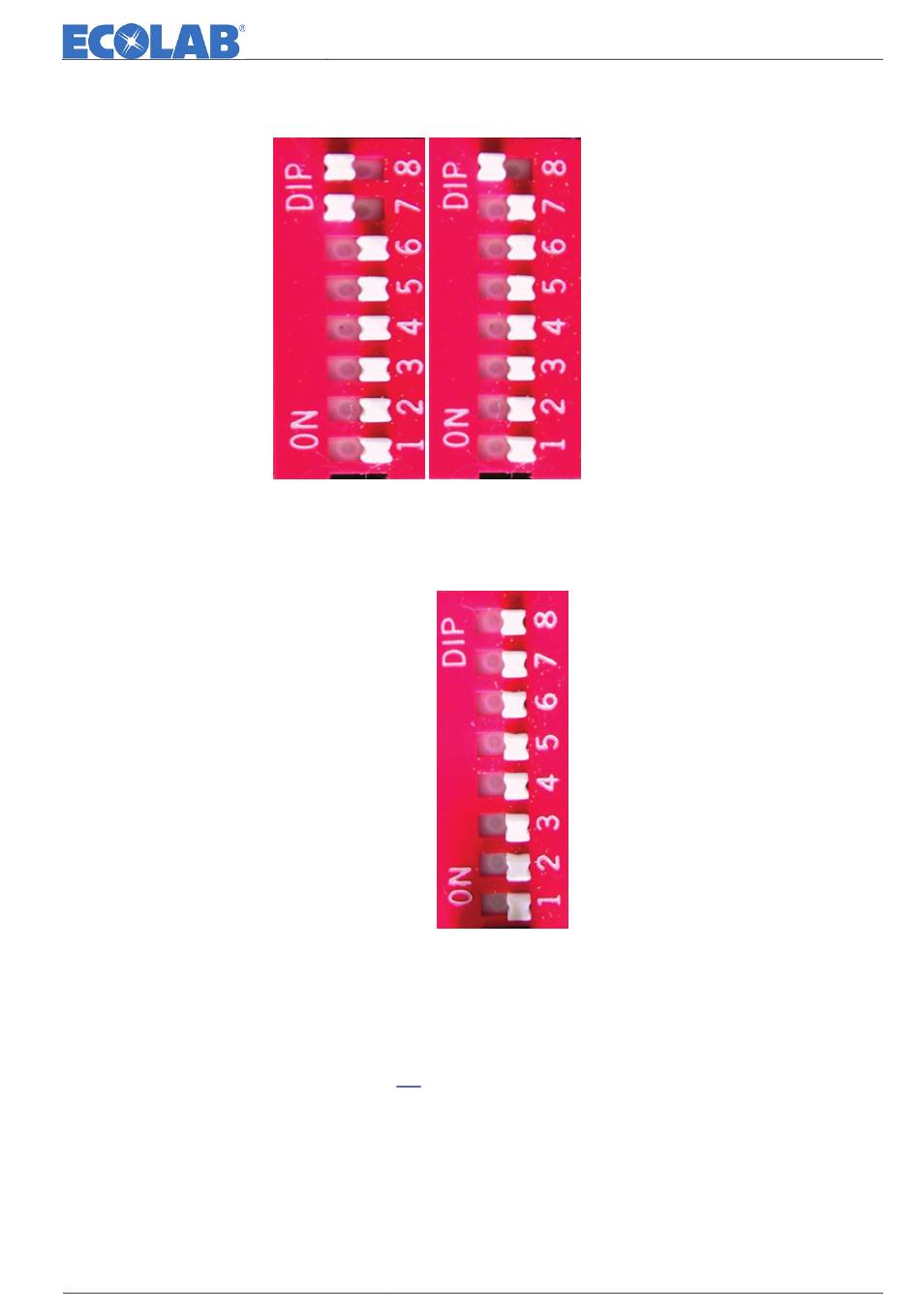

4.3.4 Max. dosage time: (DIP switch "Delay | Mode |")
(Mode setting)
(Mode setting)
640 seconds
320 seconds
160 seconds
80 seconds
40 seconds
20 seconds
When all "Delay" DIP-switches are OFF, the dosage time is 10 seconds
4.3.5

Titration: (DIP switch "TIME/Titration")

4.3.6

Enable signals

• Contact closed at input "IN1" (Enable switch / pressure switch)
• Contact closed at input "IN2" (Low level input / Capsule switch)
Further information see Chapter
417101373_Ecodos-PCB.docx
Inductive Mode 2-wire Mode
Factor 2
Not used
6.4 mS/cm
3.2 mS/cm
1.6 mS/cm
0.8 mS/cm
0.4 mS/cm
0.2 mS/cm
4.6
Obligatory (0=2-wire, 1=inductive)
Obligatory
