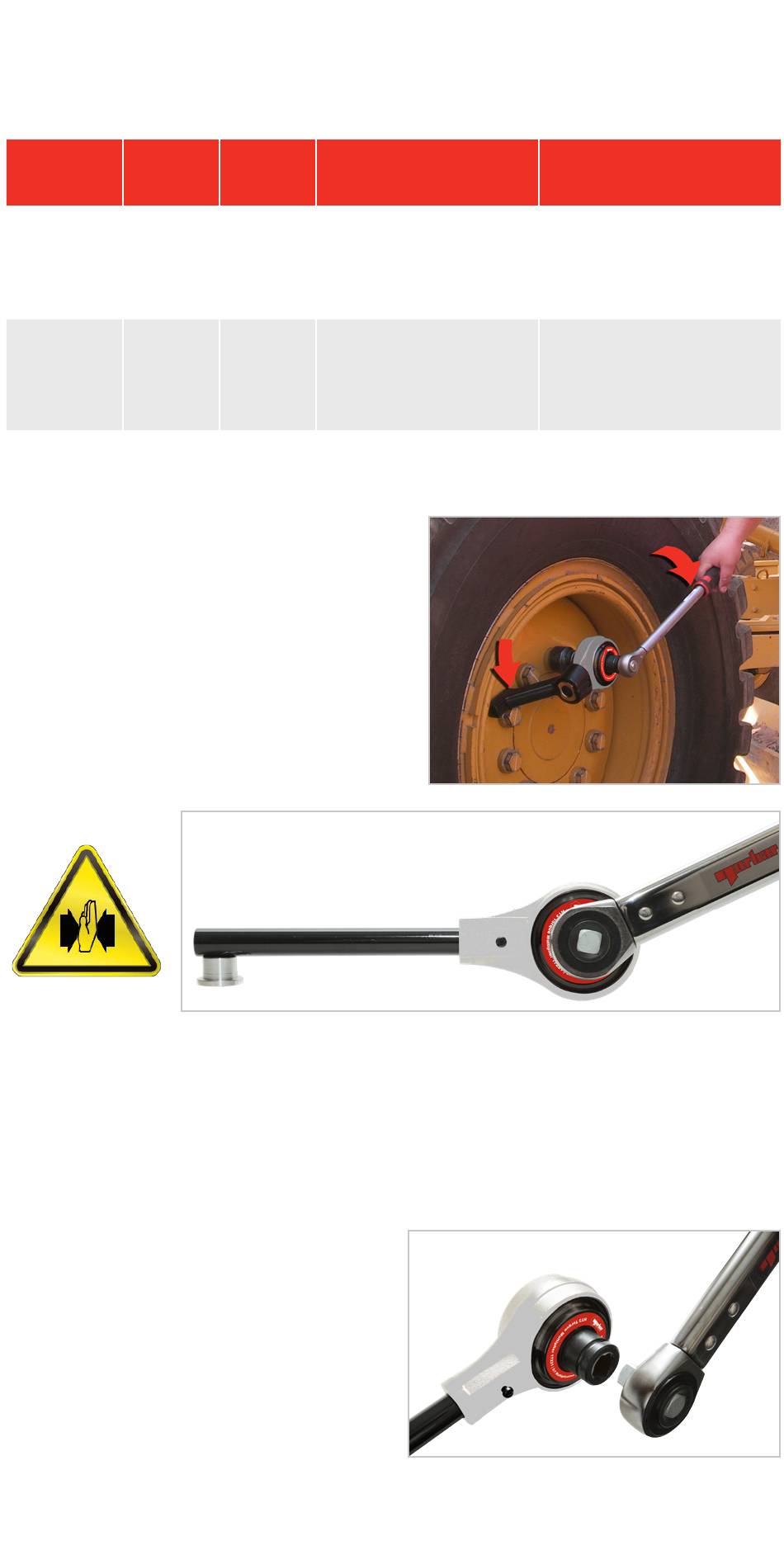

INTRODUCTION
The HandTorque
factor of 5 when used with the supplied straight reaction, or 4.75 when used with the
supplied cranked reaction.
Part Input
Number Square
17220
17221
REACTION
1. Select correct socket drive: it is
recommended to use impact sockets.
2. In use the tool body rotates in the
opposite direction to applied drive. It is
necessary to allow the torque reaction
arm to rest against a solid stop before
any useful work can be done.
3. To prevent undue stress on the gears
always take torque reaction as far away
from drive square as circumstances
permit.
There is a risk of crushing between the reaction bar and work piece.
Keep hands away from reaction bar.
Keep hands away from tool output
DRIVING TOOL
1. For torque control and consistent bolt
loading, a torque wrench is required.
2. A) With straight reaction - set torque
wrench to 1/5 of the desired torque on
the nut
B) With cranked reaction – set torque
wrench to 1/4.75 of the desired torque
on the nut
Do not exceed maximum input torque.
IMPORTANT:
HT3 is a precision tool which multiplies the input torque by a
®
Output
Square
½" ¾"
¾" 1"
DO NOT USE THE MULTIPLIER WITH IMPACT OR
IMPULSE WRENCHES.
Max Input
260 N·m (190 lbf·ft)
With straight reaction
274 N·m (202 lbf·ft)
With cranked reaction
540 N·m (400 lbf·ft)
With straight reaction
568 N·m (421 lbf·ft)
With cranked reaction
Max Output
1,300 N·m (960 lbf·ft)
2,700 N·m (2,000 lbf·ft)
