USER MANUAL – EN

Assembly

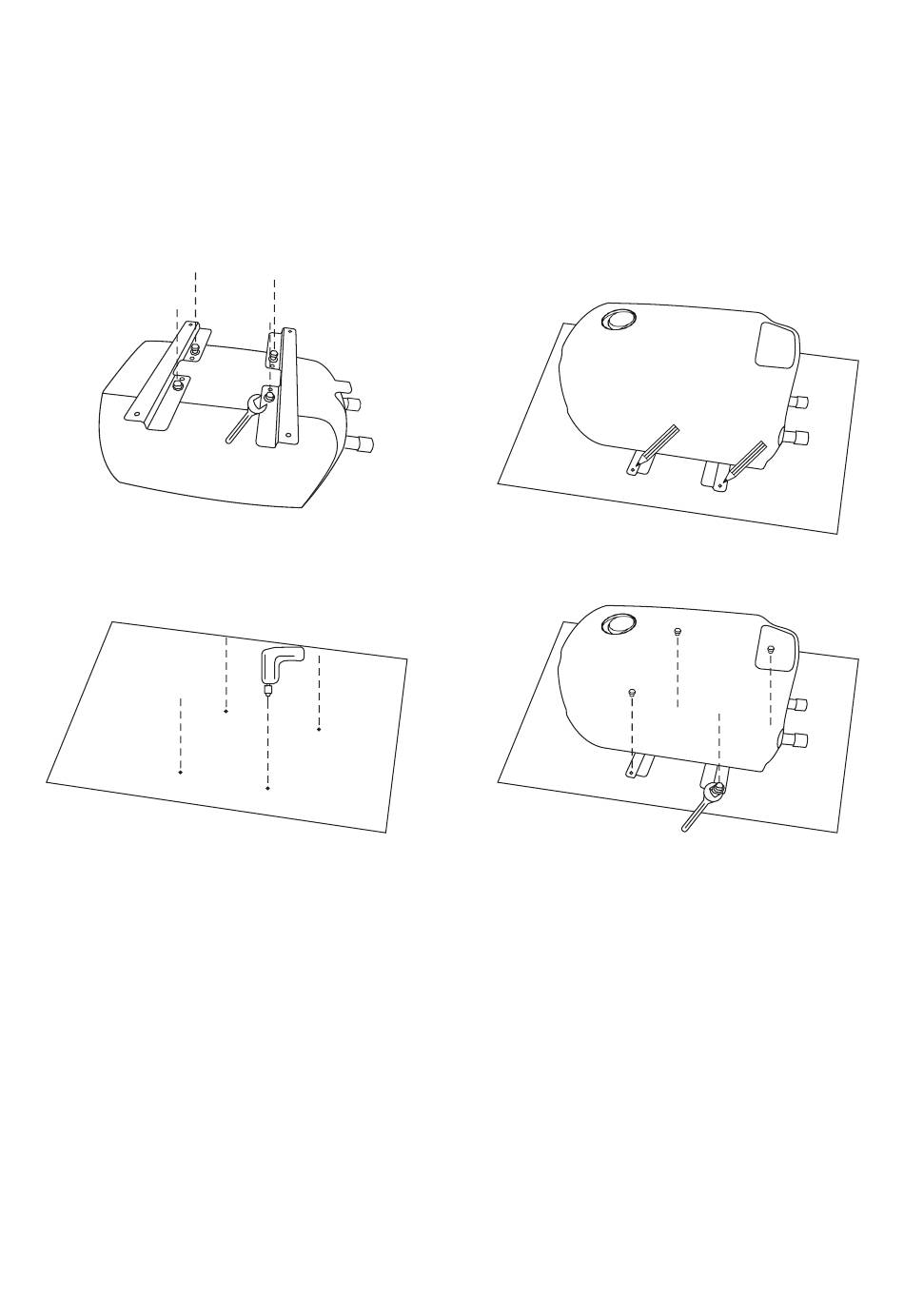

The caravan boiler must be mounted on a solid base plate with four
screws. Use suitable screws or other mounting systems for your base
plate. Optionally, the boiler can also be mounted vertically on a stable
wall.
1.
3.
Horizontal and vertical installation of the
photovoltaic boiler is possible.
Advantages of vertical installation
• Relatively low heat losses
• 8 litres of hot water
Advantages of horizontal installation
• Slightly more heat loss
• 9.5 litres of hot water
2.
4.
How was it measured?
The boiler was heated up to 65 °C. It was drained
at about 5 litres per minute. From a water tempe-
rature at the shower head of 35 °C until the water
was 35 °C again, the volume was measured.
4
