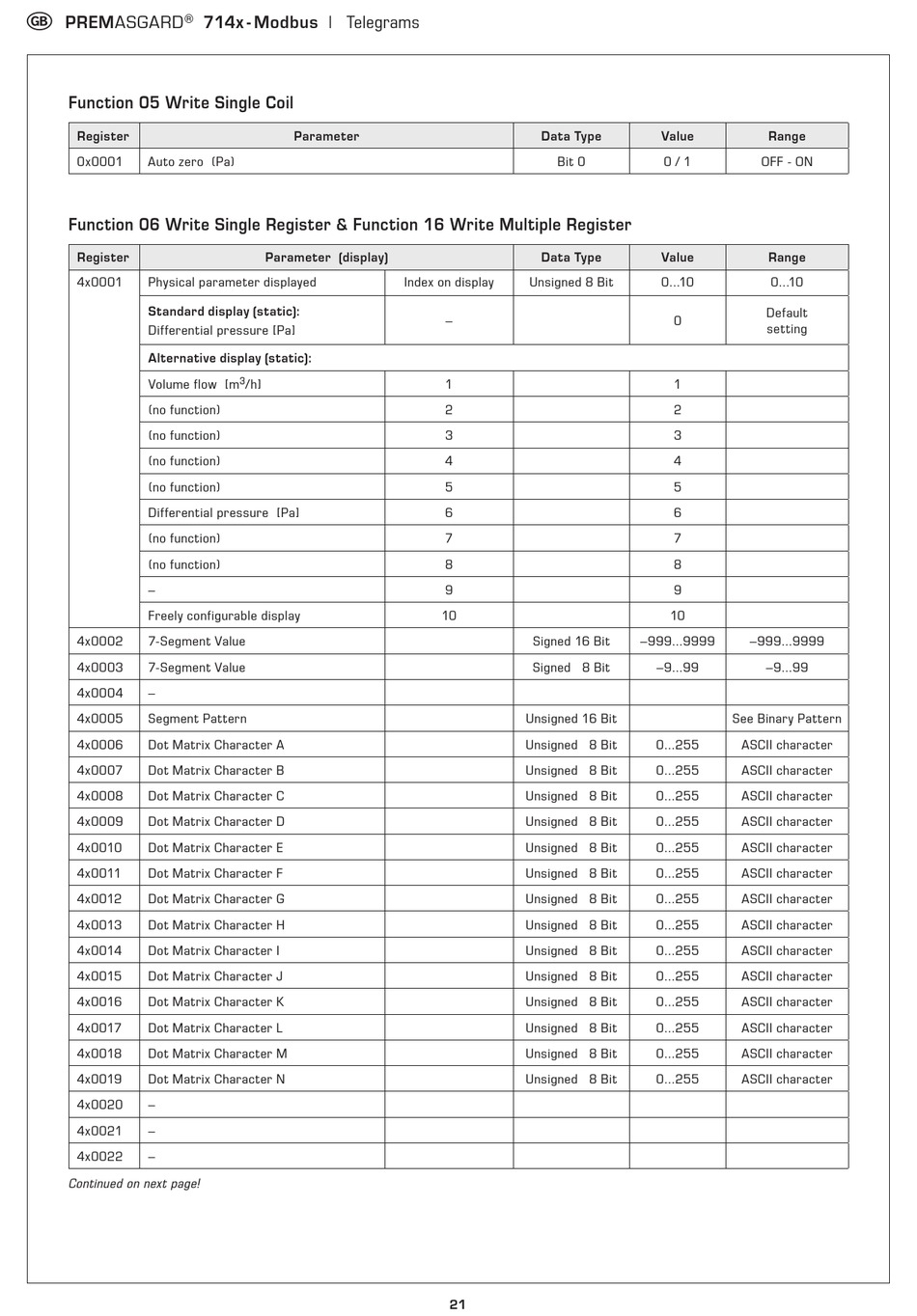

S+S REGELTECHNIK PREMASGARD 714 Modbus Serie Bedienungs- Und Montageanleitung Seite 21

G
®
PREMASGARD
Function 05 Write Single Coil
Register
0x0001 Auto zero (Pa)
Function 06 Write Single Register & Function 16 Write Multiple Register
Register
4x0001 Physical parameter displayed
Standard display (static):
Differential pressure [Pa]
Alternative display (static):
Volume flow [m
(no function)
(no function)
(no function)
(no function)
Differential pressure [Pa]
(no function)
(no function)
–
Freely configurable display
4x0002 7-Segment Value
4x0003 7-Segment Value
4x0004 –
4x0005 Segment Pattern
4x0006 Dot Matrix Character A
4x0007 Dot Matrix Character B
4x0008 Dot Matrix Character C
4x0009 Dot Matrix Character D
4x0010 Dot Matrix Character E
4x0011 Dot Matrix Character F
4x0012 Dot Matrix Character G
4x0013 Dot Matrix Character H
4x0014 Dot Matrix Character I
4x0015 Dot Matrix Character J
4x0016 Dot Matrix Character K
4x0017 Dot Matrix Character L
4x0018 Dot Matrix Character M
4x0019 Dot Matrix Character N
4x0020 –
4x0021 –
4x0022 –
Continued on next page!
714x - Modbus | Telegrams
Parameter
Parameter (display)
3 /h]
Data Type
Bit 0
Data Type
Index on display Unsigned 8 Bit
–
1
2
3
4
5
6
7
8
9
10
Signed 16 Bit
Signed 8 Bit
Unsigned 16 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
Unsigned 8 Bit
21
Value Range
0 / 1 OFF - ON
Value Range
0...10 0...10
Default
0
setting
1
2
3
4
5
6
7
8
9
10
–999...9999 –999...9999
–9...99 –9...99
See Binary Pattern
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
0...255 ASCII character
