The conversion is done by changing the jumper settings of jumper JP1 to JP5
on the RCM-26. The following pictures show the jumper settings for "Pre Fader"
mode and "Post Fader" mode. Only the jumper settings shown are allowed.

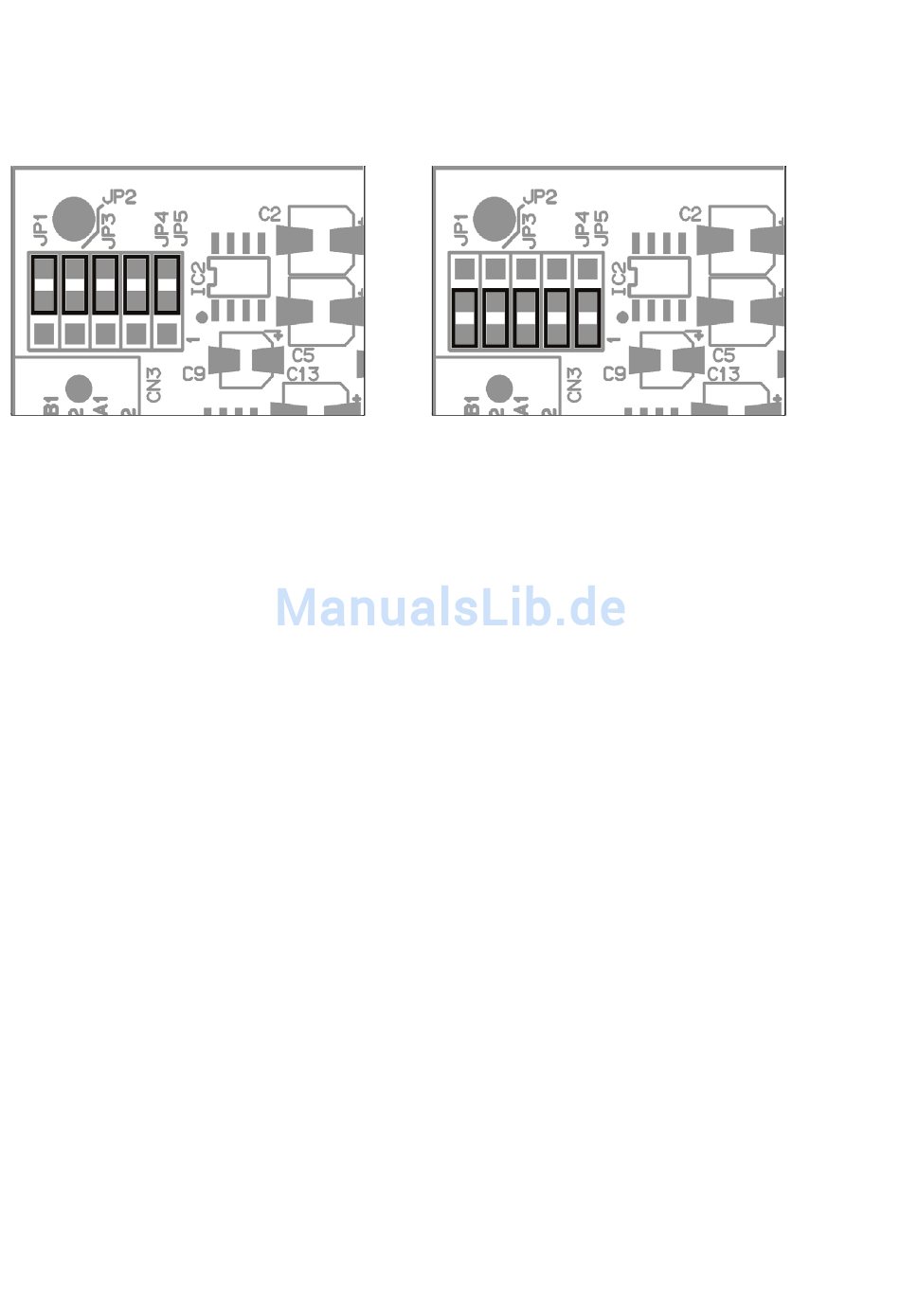

Illustration 1.2: Pre Fader mode (left) and Post Fader mode (right)
Note:
On RCM-26 Remote Control Modules built in 2006 there are no jumpers at JP1
to JP5, instead the conversion has to be done via „cut&solder". This means:
1. The strip conducter of the top and middle contact of each JP1 to JP5 has to
be cut.
2. A link has to be soldered between the middle and lower contact of each JP1
to JP5.

1.4 IRIS-Net

Configuring and controlling a remote amplifier with a RCM-26 module installed
is possible through the use of IRIS-Net™ (Intelligent Remote & Integrated
Supervision) PC-software. IRIS-Net™ allows programming the RCM-26
module's complete configuration while the computer is off-line. All instructions
on how to configure, operate and monitor all RCM-26 functions are included in
the IRIS-Net™ help files.
