monitoring of input or output signals of all power amps in the remote network,
without the need for additional wiring. Nominal output level is +6 dBu (1.55 V)
and maximum output level is +21 dBu (8.7 V).
The CAN bus allows using different data rates, whereas the data rate is
inversely proportional to the bus length. For smaller network setups, data rates
can be as high as 500 kbit/s. For broader networks, reducing the data rate
becomes necessary (down to the minimum data rate of 10 kbit/s).
NOTE:
The data rate of the CAN Bus is preset to 10 kbit/s.
The following table illustrates the relation between data rate and bus length or
network size. The use of CAN repeaters is strongly recommended for busses
that exceed 1000 meters in length.
Transfer rate (in kbit/s) Bus length (in m)
500
250
125
62,5
20
10
Tabelle 2.1: Transfer rate and bus length

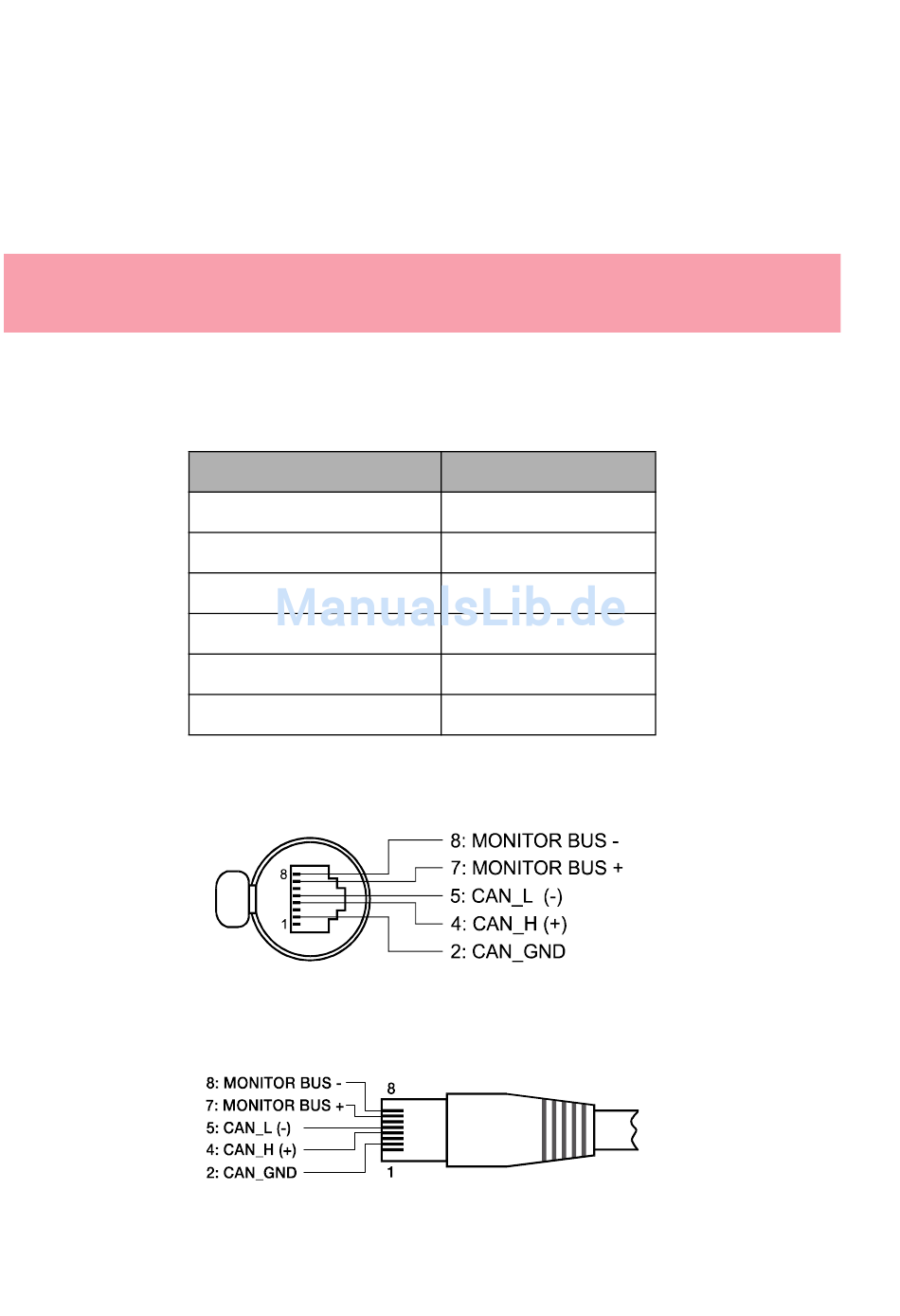

Illustration 2.3: Pin-assignment of CAN jack
Illustration 2.4: Pin-assignment of CAN plug
100
250
500
1000
2500
5000
